Description

• Control up to 100 cameras remotely

  A multi camera set-up over IP is easy with the RC-IP100 and offers control of up to 100 PTZ units with just one operator and LAN cable, making remote production beautifully streamlined.

• Manage and adjust with fingertip simplicity

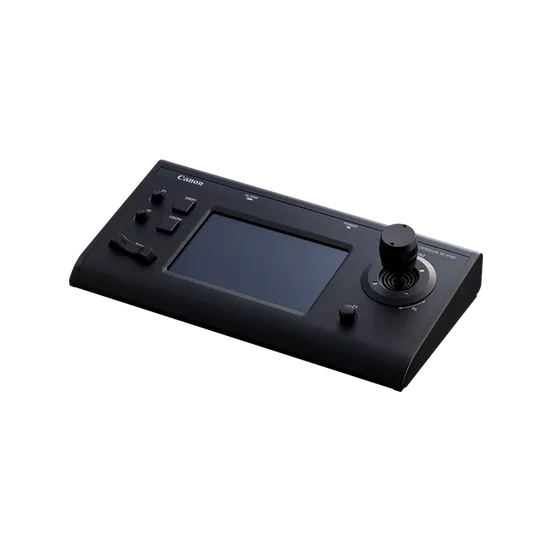

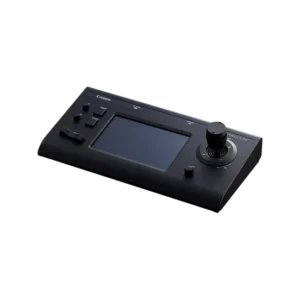

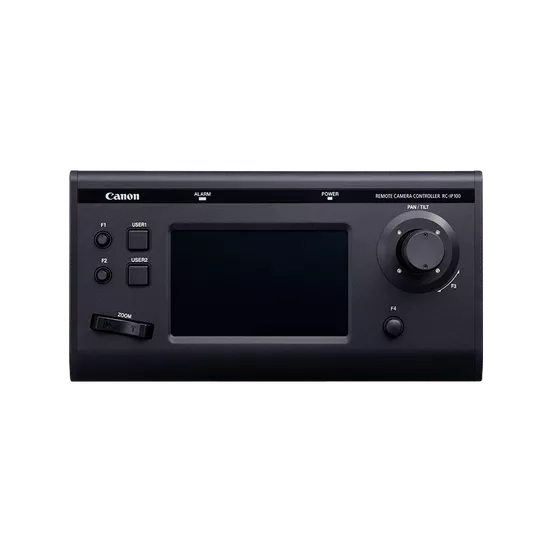

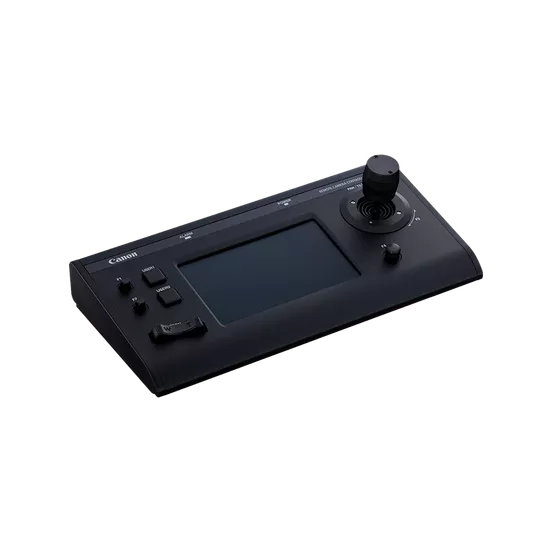

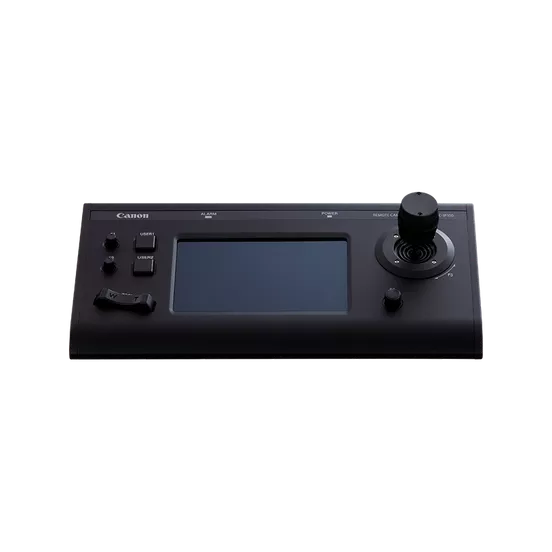

  An intuitive 7-inch (17.78 cm) touch screen allows easy switching between cameras as well as quick management of focus settings, white balance, shutter speeds and much more.

• Perfect precision with a multifunction joystick

  A multi-function joystick allows precise adjustment over camera movements and settings while a control grip on top of the stick allows zoom, focus and iris control.

• Pinpoint zooming for the perfect shot

  A professional zoom rocker enables smooth and precise wide-to-tele adjustments and lets you zoom with the same high degree of control as seen on pro camcorders.

• Assign and refine with custom controls

  With two user assignable buttons as well as two dedicated function buttons and customisable control knob on the joystick the user can optimise their setup for a wide range of shooting scenarios.

• Manage up to 100 stored positions

  Appoint up to 100 pre-set angles per camera using the 7” touchscreen, and utilise the trace function to allow recording of up to ten different movements (pan, tilt, zoom) which can be reproduced at the touch of a button.

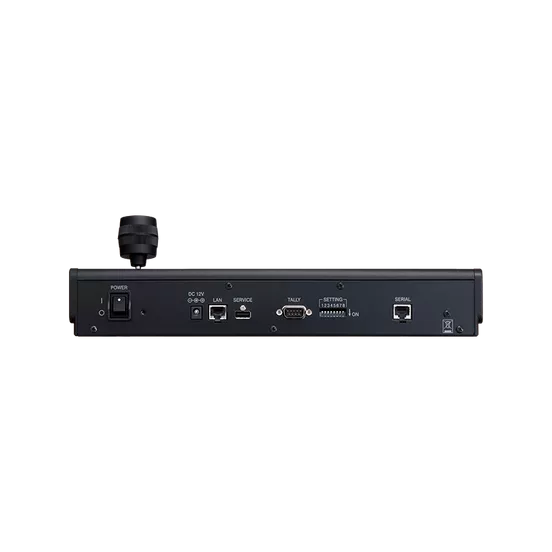

• Flexible connectivity

  Equipped with Serial and LAN integration, control over IP based PTZ cameras is made easier and more intuitive, giving you greater freedom in controlling your setup.



  Specifications

  • 7-inch touchscreen

    For easy switching between up to 100 cameras and settings

  • Multi-function joystick

    Precisely adjust camera movements

  • Professional zoom rocker

    For smooth and precise wide-to-tele adjustments

  • Customisable controls

    User assignable buttons and customisable control knob

  • Flexible connectivity

    Serial and LAN integration

  Specifications in detail

  Physical Features

  • Operating Environment
    Temperature
    0 °C to 40 °C
    Humidity
    20% RH to 90% RH (No condensation)
  • Power Supply
    12 VDC (When using the AC adapter)
  • Power Consumption
    Consumption: 0.6 A (When using the AC adapter)
  • Dimensions (W x H x D)
    Width 350 x Height 110 x Depth 182 mm
  • Weight
    2.1 kg
  • IP Rating
    –
