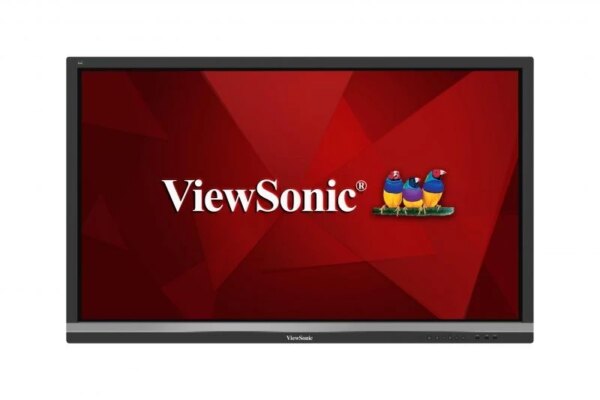

IFP7550 75″ 4K Interactive Flat Panel
- LCD PANEL
Panel Size: 75″
Type/ Tech: TFT LCD Module with DLED Backlight
Display Area (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
Aspect Ratio: 16:9
Resolution: 3840 x 2160
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.) 300 nits (min.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: DLED
Backlight Life: 30,000 Hours Min.
Hardness: 7H - TOUCH
Type/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
Response Time: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 80,000hrs - INPUT
HDMI: x 3
RGB / VGA: x 1
DisplayPort: x 1
Audio: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2
- Description
Description
75″ 4K Interactive Flat Panel
- 20-Point Multi-Touch
- Floating Pen – Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
OVERVIEW
The ViewBoard® IFP5550 is an 55” 4K (3840 x 2160) interactive flat panel display with an open platform design and excellent collaborative capabilities. ViewBoard®’s user experience is highlighted by its intuitive two-finger Floating Pen and exclusive one-touch to Google Drive/OneDrive Save features, which stand out above all else by placing the board’s controls at your fingertips. With open collaboration in mind, ViewBoard® is fit for integration into Google-based environments, offers seamless Windows compatibility, and comes equipped with Mac multi-touch gesture mirroring. Powered by optional Oktopus software, ViewBoard® IFP5550 supports .iwb and .notebook file formats and accesses to 10,000+ ready-to-use lessons on-line. Pairing ViewBoard® IFP5550’s 20-point touch display with pre-installed tools, such as myViewBoard™ whiteboarding software, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously as if they were in the same room. With its built-in Quad Core processor and internal storage, ViewBoard® IFP5550’s computing capabilities are powerful enough to support an array of multimedia applications. The optional slot-in PC with Windows 10 OS offers users extended whotboarding features. Supporting DisplayPort 4K input, HDMI-out, as well as shared USB and LAN ports for the embedded player and optional PC makes it flexible enough to fit a wide range of user scenarios. Its versatile connectivity provides users with hassle-free connection to a multitude of devices and a VESA-compatible design allows for placement on a wall mount or trolley for flexible installation anywhere, no matter the occasion.
4K Resolution with Eye-Care Technology4K, Flicker-Free, Blue Light Filter
With four-times the resolution of Full HD, ViewBoard®’s Ultra HD 3840 x 2160 display delivers breathtaking visuals. 4K DisplayPort input is also supported for external sources. Flicker-Free technology and a Blue Light Filter come standard to help to eliminate eye strain from extended viewing periods.
20-Point TouchMulti-user annotation
ViewBoard® allows multiple users to annotate on the slim display simultaneously, increasing engagement and encouraging group collaboration.
Floating PenAnnotation on demand
Two-finger touch activates ViewBoard’s Floating Pen that allows for easy annotation on everything from powerpoint files, to text docs, USB files, internal memory, or even on images from a connected input source.
Built-in ARM Quad-core CPU with 16GB Storage
Equipped with a powerful quad-core processor and embedded OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 16GB of onboard memory provides ample storage for files and multimedia content.
Out-of-Box Collaboration
Integrated with ViewSonic vBoard and Cast software, as well as Zoom® software, this display delivers out-of-the-box annotation and content sharing capabilities. This display can also be upgraded with Intel® Unite, which can wirelessly and securely display media from any range of devices such as tablets, laptops, and mobile phones.
- SPEAKERS
- VESA® WALL Mount 400×400 mm
- MENU CONTROLS
- USB 2.0
- CVBS IN (AV IN)
- SPDIF (COAX OUT)
- RS232 IN
- AUDIO OUT
- RJ45 (LAN)
- POWER ON / OFF
- AC IN
- USB 2.0 &3.0
- HDMI IN
- AUDIO IN
- USB 2.0 & 3.0
- PC SLOT
- HDMI OUT
- WIFI & BLUETOOTH MODULE SLOT
- USB 2.0 (Touch)
- DisplayPort
- VGA IN
Learn more about Software
ViewBoard® Cast Content Sharing SoftwareOn-site content sharing software
ViewBoard® Cast is a content sharing app for mobile devices that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network.
Air ClassQuiz tool
Display quiz questions on ViewBoard® and allow participants to submit answers remotely. Whether deploying a single or multiple choices question, ViewBoard® will record statistic result for each device being used. Pop quizzes can be easily implemented by syncing up ViewBoard® with participants’ devices; once synced presenters can choose from multiple choice questions or the text to answer messaging function.
Zoom Conference SoftwareOn-line conference software
Zoom is a conferencing app that enables content to be streamed from a user’s devices onto ViewBoard® over the internet. It supports up to 10 participants, allowing 4 of the 10 to stream content from their laptop or smart phone.
myViewBoard™ Whiteboarding SoftwareAnnotation whiteboard
myViewBoard™ is a whiteboarding software used on the ViewBoard. The intuitive “draw with one finger, move/zoom with two fingers, and erase with three fingers” design delivers a user friendly experience.
Learn More Features
vLauncherStartup top 3 commonly used functions
Viewboard’s myViewBoard™, Cast, and Browser shortcuts enable users to write, cast content, and surf the web; 3 of the most commonly used functions during meetings and in class. These easy access desktop icons are displayed as soon as the ViewBoard® is powered on.
Optional Slot-in Wi-Fi & Bluetooth ModuleComplete wireless environment
Offering users a complete wireless environment, the optional slot-in wireless module provides a dual band 2.4GHz/5GHz WiFi network, as well as Bluetooth support for flexible usage.
HDMI-Out MirroringExtended display
Mirroring capabilities deliver group discussion and spatial arrangement flexibility by allowing content to be mirrored on to two ViewBoard®s simultaneously.
Anti-Scratch, Anti-Glare Glass FaceplateAnti-scratch, Anti-glare
The 7H scratch-resistant and anti-glare screen offers a durable and consistent high-quality touch experience.
Versatile Connectivity
HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.
