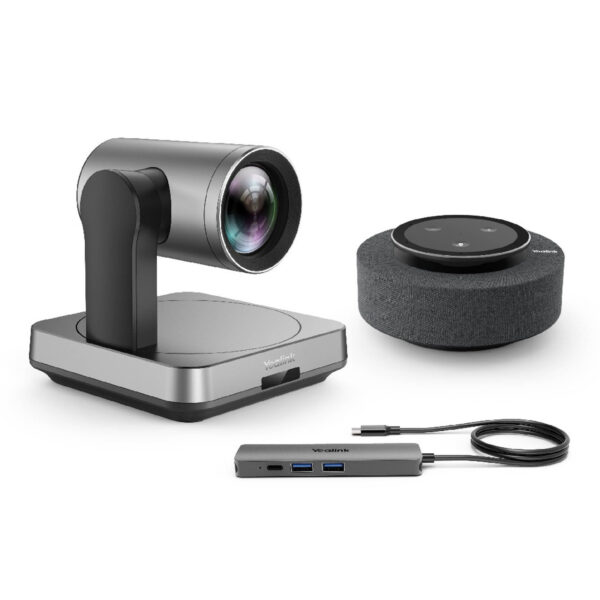

Yealink UVC84-BYOD Meeting Kit for Medium and Large Rooms
$1,807.00
- Description
Description
BRING YOUR OWN DEVICE TAKE UC ANYWHERE
Yealink UVC84-BYOD meeting kit is dedicated for medium and large rooms with UVC84 4K camera, audio devices and BYOD box for the complete meetings with any UC platforms. Users can enjoy the easy plug-and-play installation, excellent video and audio experience with the cost-effective solution.
ONE CABLE, PLUG-AND-PLAY EASY AND EFFECTIVE
To deploy the UVC84-BYOD meeting kit, you only need to connect the UVC84 camera and the audio device like VCM34 microphone or the MSpeech microphone in the meeting room, and plug the Type-C cable into your laptop to start meetings. The Plug-and-play feature ensures your installation easily without adding extra drivers, saving time for effective collaboration.
4K VIDEO COVERING MEDIUM MEETING SPACES
Featured 4K sensor and 36x HD zoom, the UVC84 camera achieves a gorgeous video experience perfectly for medium and large rooms. The Auto Framing enables the UVC84 to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size.
ENJOY PERFECT AUDIO EXPERIENCE
Perfectly working with the UVC84 camera, the VCM34 array microphone supports a 20ft (6-meter) and 360°; voice pickup range and works with the Yealink Soundbar together to guarantee a high-quality audio solution. Users can choose the MSpeech USB speakerphone as well with the HD full-duplex audio experience for medium meeting spaces.
Technical Specifications
- Package for Medium Room
- UVC84 Camera
- VCR20 Remote Control
- MSpeech USB Speakerphone
- BYOD Box
- Package for Large Room
- UVC84 Camera
- VCR20 Remote Control
- 2~4 VCM34 Microphone Array
- MSpeaker II Soundbar
- Yealink UVC84 Camera
- 4K sensor
- 80° FoV
- 12x optical zoom, 3x digital zoom
- Pan: ±100°, Tilt: +40°, -90°
- Auto Framing
- Camera presets
- Yealink BYOD Box
- 2x USB3.0 Type-A port
- 1x HDMI output
- 1x 1.5m Type-C cable for connecting to laptop, support charging via USB-C on laptop
- 1x Type-C port for power adapter
- PD power adapter
- Package Features (Medium Room)
- N.W/CTN: 4.7Kg
- G.W/CTN: 5.3Kg
- Carton Meas: 398mm x 285mm x 322mm
- Package Features (Large Room with 2 VCM34)
- N.W/CTN: 6.1Kg
- G.W/CTN: 7.1Kg
- Carton Meas: 595mm x 422 mm x 232mm
- Other Physical Features
- External Yealink Power Adapter for UVC84 and MSpeaker II: AC 100~240V input and DC 48V/0.7A
- Output
- Operating humidity: 10~95%
- Operating temperature: 0~40℃
- UVC84 Connections
- 1x USB2.0 Type-B port
- 1x Yealink microphone port (RJ-45)
- 1x 3.5mm line-out port
- 1x Power port
- 1x Security lock slot
- 1x Reset slot
- VCM34 Array Microphone
- Built-in 3-microphone array
- 360° 20ft (6-meter) voice pickup range
- Cascade connection up to 6 units
- Mute button with bicolor LED
- MSpeaker II Soundbar
- Frequent response： 100Hz – 20KHz
- S/N：≥70dB
- 1 x Line-in (3.5mm)
- MSpeech USB Speakerphone
- 3 MEMS microphone array for HD voice pickup
- 4W HD Speaker
- 360° 20ft (6-meter) voice pickup range
- Full-duplex technology
- Acoustic echo cancellation (AEC)
