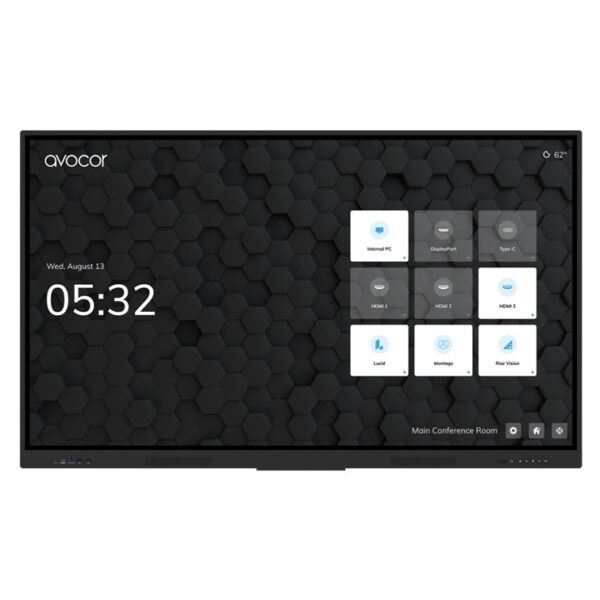

AVOCOR E50 AVE-6550 – 65″ 4K Interactive Display
$3,899.00
- 65-inch 4K UHD interactive display for classrooms and meeting rooms
- Up to 40-point IR multi-touch for collaborative writing and annotation
- Android 13 system with 4GB RAM and 32GB storage
- Built-in wireless sharing, whiteboarding, and digital signage apps
- USB-C, HDMI, DisplayPort, LAN, and OPS expansion support
- Integrated dual 15W speakers and professional 16/7 operation
- Description
Description
The Avocor AVE-6550 65-inch 4K Interactive Display from the E50 Series is designed to support modern collaboration across classrooms, meeting rooms, and corporate environments. With a professional 4K UHD resolution, the display delivers sharp visuals and vibrant colors for presentations, training sessions, and interactive discussions.
The display features advanced infrared touch technology supporting up to 40 simultaneous touch points, allowing multiple users to write, annotate, and interact on the screen at the same time. Users can naturally switch between stylus, finger, or palm input for a smooth and responsive writing experience.
The panel incorporates high quality anti-glare and anti-fingerprint glass with zero-parallax bonding, creating a precise and comfortable writing surface with minimal latency. This design ensures accurate interaction and a natural whiteboarding experience during collaborative sessions.
Powered by Android 13 and an Amlogic processor with 4GB RAM and 32GB storage, the AVE-6550 supports built-in collaboration tools including Lucidspark whiteboarding, DisplayNote Montage wireless screen sharing, and Rise Vision digital signage management. Avocor’s UiQ touch interface provides simple navigation and quick access to essential collaboration features.
The display also supports Bring-Your-Own-Meeting workflows through convenient front and side connectivity options including USB-C, HDMI, USB-A, DisplayPort, and USB-B touch ports. Administrators can manage devices remotely through the Avocor FUSE cloud management platform.
With integrated speakers, enterprise connectivity, and reliable 16/7 operation, the Avocor AVE-6550 provides a complete interactive display solution for education institutions, corporate boardrooms, and government meeting spaces.
Specification
| • Model: Avocor AVE-6550 |
| • Series: Avocor E50 Series |
| • Screen Size: 65″ |
| • Backlight: Direct-lit LED |
| • Resolution: 3840 × 2160 @ 60Hz |
| • Aspect Ratio: 16:9 |
| • Brightness: 400 cd/m² |
| • Contrast Ratio: 1200:1 |
| • Viewing Angle: 178° / 178° |
| • Response Time: 8 ms |
| • Supported Colors: 10 Bit (1.07 Billion Colors) |
| • Display Orientation: Landscape |
| • Touch Technology: IR Touch |
| • Touch Points: Up to 40-point multi-touch |
| • Glass Type: Zero parallax, zero-bond, anti-glare, anti-fingerprint |
| • Stylus Support: Fine tip stylus supported |
| • Operating System: Android 13 |
| • Chipset: Amlogic 311D2 |
| • CPU: Cortex A73 ×4 + A53 ×4 |
| • GPU: Mali-G52 MP8 |
| • RAM: 4GB |
| • Storage: 32GB |
| • Front Connectivity: 1 × USB-C (65W PD), 1 × HDMI 2.0, 1 × USB-B Touch, 2 × USB-A 3.0 |
| • Side Connectivity: 2 × HDMI 2.0, 1 × DisplayPort 1.2, 1 × USB-C (15W PD) |
| • USB Ports: 3 × USB-B Touch, 2 × USB-A 3.0 Hub, 1 × USB-A Service Port |
| • Video Output: 1 × HDMI Out (supports 4K @ 60Hz) |
| • Network: 1 × LAN Ethernet (RJ-45) In, 1 × LAN Ethernet (RJ-45) Out |
| • Control: 1 × RS-232 |
| • OPS Slot: Yes |
| • WiFi: Yes |
| • Built-in Speakers: 2 × 15W forward facing |
| • Audio Output: 1 × 3.5mm Audio Out, 1 × Optical SPDIF |
| • Microphone: None |
| • Camera: None |
| • Operation Time: 16/7 |
| • Presence Sensor: Yes |
| • Auto Source Detection: Yes |
| • Source Preview: Yes |
| • Product Dimensions: 1482.1 × 87.7 × 897.4 mm |
| • Shipping Dimensions: 1660 × 220 × 1010 mm |
| • Net Weight: 38 kg |
| • Gross Weight: 46 kg |
| • VESA Mount: 800 × 400 mm |
| • Power Supply: AC 100–240V, 50/60Hz |
| • Max Power Consumption: 380W (without OPS) |
| • Standby Power: ≤0.5W |
| • Operating Temperature: 0°C – 40°C |
| • Storage Temperature: −20°C – 60°C |
| • Humidity: 20% – 85% |
