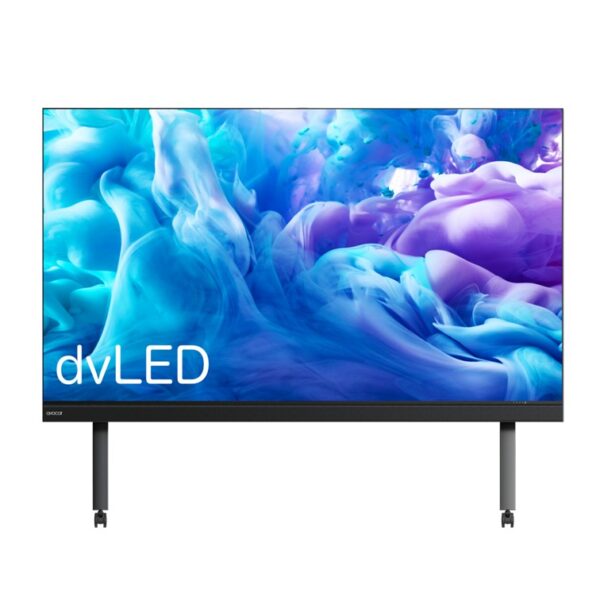

Avocor X-Series AVX-1320 132″ dvLED Display

Description

The Avocor AVX-1320 is a large-format 132-inch LED display designed to deliver powerful visual communication in environments where impact and clarity are essential. Part of the Avocor X Series, this display uses a modular tiled LED design to create a seamless and immersive viewing surface that enhances presentations, digital signage, and collaborative content.

Featuring a 21:9 ultra-wide format and a high-resolution LED display, the AVX-1320 provides expansive screen space that allows presenters to display more content simultaneously. The ultra-wide aspect ratio makes it ideal for modern meeting rooms, command centers, large classrooms, and corporate collaboration environments.

The display uses direct-view LED technology with a fine pixel pitch to deliver bright visuals, accurate colors, and excellent viewing angles. With up to 500 nits brightness and a 6500:1 contrast ratio, the screen ensures content remains vibrant and visible even in well-lit environments.

The modular cabinet design simplifies installation and maintenance by allowing individual LED tiles to form a seamless large-format display. This approach enables flexible installation for wall-mounted or stand-based deployments while maintaining a clean, ultra-slim display profile.

Integrated wireless sharing through DisplayNote Montage and digital signage capabilities through Rise Vision allow teams to present content, share information, and manage messaging across large environments. With built-in processing and multiple connectivity options, the AVX-1320 functions as a complete display solution without requiring complex external hardware.

Designed for corporate collaboration spaces, auditoriums, control rooms, and large training environments, the Avocor AVX-1320 provides a striking large-scale visual platform that captures attention and delivers clear communication.

---

Specification

• Model: Avocor AVX-1320

• Series: Avocor X Series

• Screen Size: 132″

• Display Technology: Direct View LED

• Aspect Ratio: 21:9

• Resolution: 2400 × 1080

• Pixel Configuration: Single SMD

• Pixel Pitch: 1.27 mm

• Cabinets Per Screen: 5 × 4 (20)

• Product Dimensions: 3064 × 1489 × 31 mm

• Screen Surface Area: 3050 × 1372 × 31 mm

• Net Weight: 108 kg

• Recommended Viewing Distance: > 2.5 m

• Cabinet Material: Die-cast magnesium

• Service Access: Front

• Installation: Stand or wall mount

• Max Brightness (After Calibration): Up to 500 cd/m²

• Contrast Ratio: 6500:1

• Viewing Angle (Horizontal): 170°

• Viewing Angle (Vertical): 170°

• Color Temperature: 2300K – 9300K adjustable

• Processing Depth: 16-bit

• Refresh Rate: 3840 Hz

• Front Inputs: 1 × USB-C, 1 × USB-A 3.0, 1 × USB-A 2.0

• Bottom Inputs: 1 × HDMI 2.0, 1 × 3.5mm AUX

• Internal Inputs: 2 × HDMI 2.0

• LAN: 1 × RJ45

• Control: RS-232

• WiFi: Yes

• Built-in Speakers: 2 × 30W forward facing

• Audio Output: Optical (SPDIF)

• Max Power Consumption: 1.84 kW

• Average Power Consumption: 0.63 kW

• Power Supply: AC 100 – 240V, 50/60Hz

• Standby: ≤ 0.5W

• Operating Temperature: 10°C – 40°C

• Operating Humidity: 10% – 80% RH (Non-condensing)

• Lifetime (Half Brightness): ≥ 100,000 hours
