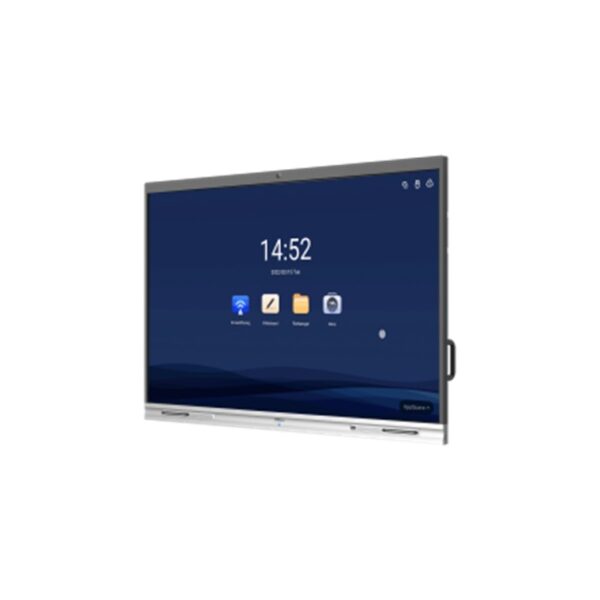

Dahua LCH65-MC410-B 65″ Smart Interactive Whiteboard
- 65-inch 4K UHD DLED smart interactive whiteboard designed for meeting rooms and classrooms.
- Powered by Android 9.0 with quad-core CPU, 4 GB RAM and 32 GB storage.
- Supports Android and Windows systems (Windows via optional OPS module).
- Wireless screen sharing from phones, tablets and computers with up to 9-way split screen.
- IR touch with stylus writing, built-in 5 MP camera, speakers and microphone array.
- Description
Description
Dahua LCH65-MC410-B 65″ DeepHub Lite Smart Interactive Whiteboard
The Dahua DeepHub Lite Series Smart Interactive Whiteboard (LCH65-MC410-B) is designed to transform meeting rooms and classrooms into efficient collaborative spaces. Featuring a 65-inch 4K UHD display and powered by Android 9.0 with a quad-core CPU, quad-core GPU, 4 GB RAM and 32 GB storage, it delivers smooth performance for writing, presentations, and content sharing.
With its high-precision infrared touch sensor and 4K DLED display panel, the DeepHub Lite offers an exceptional experience when writing, controlling applications, or displaying content. It supports video conferencing, wireless screen sharing, UHD display and scan-and-go sharing, making it an ideal solution for modern workplaces and digital classrooms. The whiteboard supports both Android and Windows systems (Windows requires an optional OPS/PC module), with customizable startup channels and both wired and wireless network connectivity.
Real Writing Experience
The smart interactive whiteboard supports pen-point writing with stylus support. Thanks to Zero Air Gap technology and low latency, writing feels smooth and natural—closely replicating the experience of writing on a traditional whiteboard.
Wireless Screen Sharing and Collaboration
Users can wirelessly share screens from phones, tablets, and computers. Beyond basic file sharing, the system supports interactive operations between two screens, reverse transmission, screen grouping for multiple transmissions, and host mode for centralized permission control. The split-screen feature allows up to 9 screens to be displayed simultaneously on the same display.
Easy File Sharing with QR Code
Sharing meeting notes and files is simple with QR code scanning. The system automatically detects the device network and allows QR code sharing across intranet and extranet connections. Encryption and extraction features protect data, requiring a 6-digit password for secure verification.
Hidden Antenna Design
The Wi-Fi and hotspot antennas are neatly hidden within the front structure of the device. This clean design ensures strong signal stability while maintaining a sleek appearance when the display is installed flush to the wall.
Built-in Camera for Collaboration
A built-in 5 MP camera supports video conferencing and remote collaboration, making the whiteboard suitable for hybrid meetings, distance learning, and presentations.
Ideal Use Scenarios
The Dahua DeepHub Lite smart whiteboard is ideal for indoor environments such as meeting rooms, command centers, hospitals, banks, and classrooms.
Specification
| • Model: | LCH65-MC410-B |
| • Series: | DeepHub Lite Series | DHI-LCH55/65/75/86-MC410-B |
| • Product Type: | Smart Interactive Whiteboard |
| • Operating System: | Android 9.0 |
| • CPU: | Quad-core A55 |
| • CPU Frequency: | 1.9 GHz |
| • GPU: | Mali-G31 MP2 |
| • RAM: | 4 GB |
| • ROM: | 32 GB |
| • Supported Systems: | Windows 7/8/10; Android |
| • Wi-Fi: | Dual-band 2.4 GHz / 5 GHz |
| • Wi-Fi Hotspot: | Dual-band 2.4 GHz / 5 GHz (hotspot and Wi-Fi can run simultaneously) |
| • Display Size: | 65-inch |
| • Backlight: | DLED |
| • Aspect Ratio: | 16:9 |
| • Brightness: | 350 cd/m² |
| • Resolution: | 3840 × 2160 (4K UHD); UI 1920 × 1080 |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Display Colors: | 1.07 Billion Colors (10-bit, 8-bit + FRC) |
| • Response Time: | 8 ms (typical) |
| • Refresh Rate: | 60 Hz |
| • Panel Lifespan: | 50,000 hours |
| • Camera: | 5 MP built-in |
| • Camera Resolution: | 1080p@30fps (Android) / 2560 × 1440@30fps (OPS) |
| • Camera Field of View: | H: 84.5° / V: 54.0° / D: 93.1° |
| • Touch Technology: | Infrared (IR) touch |
| • Touch Points: | 20 |
| • Touch Response Time: | < 10 ms |
| • Writing Mode: | Finger and Stylus |
| • Touch Resolution: | 32767 × 32767 |
| • Surface Hardness: | 8H tempered anti-glare glass |
| • Speakers: | 2 built-in speakers |
| • Speaker Output: | 2 × 15 W |
| • Microphones: | 2 omnidirectional microphones |
| • Pickup Distance: | 6–8 m |
| • Echo Cancellation: | Yes |
| • Noise Filtering: | Yes |
| • Ports: | HDMI IN ×1, USB 3.0 ×3, Micro USB ×1, RJ-45 ×1, RS-232 ×1, 3.5 mm Audio Out ×1 |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Power Consumption: | 90 W (typical), 250 W (max) |
| • Operating Temperature: | 0°C to 40°C |
| • Operating Humidity: | 10–90% RH |
| • Product Dimensions: | 1485.0 × 86.9 × 924.7 mm |
| • Dimensions (with camera): | 1485.0 × 86.9 × 941.2 mm |
| • Net Weight: | 38 kg |
| • Gross Weight: | 46 kg |
| • VESA Mount: | 400 × 500 mm |
| • Installation: | Wall mount or mobile bracket |
