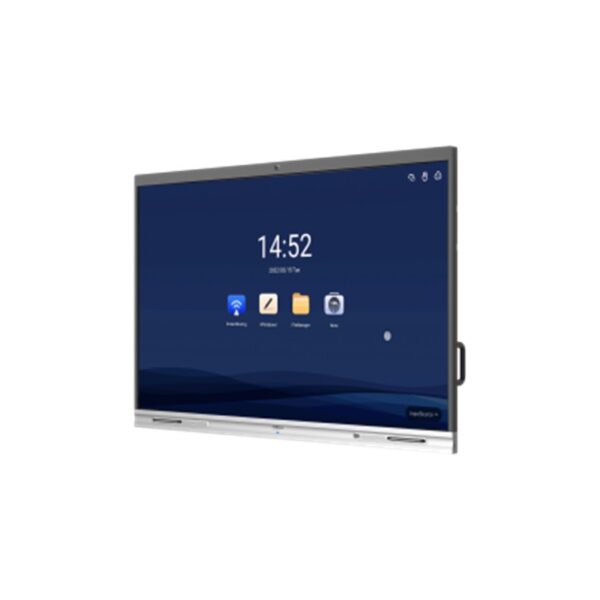

Dahua LCH86-MC410-B 86″ Smart Interactive Whiteboard
- Large 86-inch 4K UHD DLED display delivers clear visuals for meetings and classrooms.
- Runs on Android 9.0 with 4 GB RAM and 32 GB storage for smooth daily collaboration and file handling.
- Supports Android + Windows workflows (Windows via optional PC/OPS module) with wired and wireless networking.
- Wireless screen sharing supports host mode, screen grouping, reverse transmission, and up to 9-way split screen.
- Built-in 5 MP camera, IR touch with stylus writing, and QR scan sharing with 6-digit password verification.
- Description
Description
Dahua LCH86-MC410-B 86″ DeepHub Lite Smart Interactive Whiteboard
The Dahua DeepHub Lite Series Smart Interactive Whiteboard (LCH86-MC410-B) is designed to digitalize offices and classrooms with smooth collaboration tools on a large 86-inch 4K UHD display. Powered by Android 9.0 with a built-in quad-core CPU and GPU, 4 GB RAM, and 32 GB storage, it delivers reliable performance for writing, controlling applications, and presenting content.
Equipped with a high-precision infrared touch sensor and a 4K DLED panel, DeepHub Lite supports video conferencing, wireless screen sharing, UHD display, and scan-and-go sharing—making meetings and lessons more efficient. It also supports using both Android and Windows (Windows requires an optional PC/OPS module), with customizable startup channels for flexible deployment in different spaces.
Real Writing Experience
The intelligent whiteboard supports pen-point writing. With Zero Air Gap technology and low latency, writing feels natural and smooth, helping teams and educators annotate confidently during discussions and presentations.
Wireless Screen Sharing with Advanced Collaboration Modes
Share screens wirelessly from phones, computers, and tablets. Beyond basic file sharing, the system supports interactive operations between two screens, reverse transmissions, screen grouping (multiple transmission), host mode for overall permission control, and split-screen mode that displays up to 9 splits on the same screen.
Easy to Share via QR Scan
Enhance file sharing by scanning a code. The system can automatically determine the device network to share QR codes across intranet and extranet, and supports QR code encryption and extraction with a required 6-digit password for verification—helping protect privacy and data security.
Hidden Antenna Design
The Wi-Fi and hotspot antenna is neatly concealed at the front of the device, helping maintain stable signal strength when using a flush mount while keeping the setup clean and sleek.
Built-in Camera for Video Communication
A built-in 5 MP camera supports modern video communication workflows for hybrid meetings, training, and classroom collaboration.
Ideal Use Scenarios
The whiteboard is ideal for indoor sites such as meeting rooms, command centers, hospitals, banks, and classrooms.
Specification
| • Model: | LCH86-MC410-B |
| • Series: | DeepHub Lite Series | DHI-LCH55/65/75/86-MC410-B |
| • Product Type: | Smart Interactive Whiteboard |
| • Built-in System OS: | Android 9.0 |
| • CPU: | Quad-core A55 |
| • CPU Frequency: | 1.9 GHz |
| • GPU: | Mali-G31 MP2 |
| • RAM: | 4 GB |
| • ROM: | 32 GB |
| • Applicable Operating Systems: | Windows 7/8/10; Android |
| • WiFi: | Dual-band 2.4 Ghz/5 Ghz |
| • Wi-Fi Hotspot: | Dual-band 2.4 Ghz/5 Ghz; supports enabling hotspot and Wi-Fi at the same time |
| • LCD Panel Size: | 86-inch |
| • Backlight: | DLED |
| • Aspect Ratio: | 16:9 |
| • Brightness: | 400 cd/m² |
| • Resolution: | 3840 (H) × 2160 (V); UI: 1920 (H) × 1080 (V) |
| • Viewing Angle: | H: 178°; V: 178° |
| • Lifespan: | 50,000 hours |
| • Display Color: | 1.07 B/10 bit (8 bit + FRC) |
| • Response Time: | 8 ms (typ.) |
| • Refresh Rate: | 60 Hz |
| • Static Contrast: | VA: 4000 (typ.); IPS: 1200 (typ.) |
| • Camera Pixel: | 5 MP |
| • Camera Auto Control: | Auto white balance |
| • Camera Distortion: | ≤ 5% |
| • Camera Max. Resolution: | Android: 1080p@30fps; OPS: 2560 × 1440@30fps |
| • Camera Field of View: | H: 84.5°; V: 54.0°; D: 93.1° |
| • Light Sensor: | 1 |
| • Front Button: | 1 × Power button (right side) |
| • Front Ports: | 1 × USB 3.0 (left side) |
| • Network Port: | 1 × RJ-45 |
| • Wi-Fi: | 1 × Wi-Fi; 1 × hotspot |
| • USB: | 2 × USB 3.0 (Rear-facing); 1 × Micro USB |
| • RS-232: | 1 × RS-232 |
| • Video Input: | 1 × HDMI IN |
| • Audio Output: | 1 × 3.5 mm (Line out) |
| • Others: | 1 × Touch |
| • IrDA: | 1 |
| • Microphone: | 2 |
| • Touch Technology Type: | IR touch technology |
| • Touch Response Time: | < 10 ms |
| • Touch Points: | 20 |
| • Valid Touch: | 2 mm |
| • Writing Mode: | Finger + Stylus pen |
| • Communication Mode: | USB |
| • Anti-light Interference: | Anti-dazzle tempered glass |
| • Surface Hardness: | 8H |
| • Touch Resolution: | 32767 × 32767 |
| • Number of Multi-user Writing Points: | 2 |
| • Speakers: | 2 built-in speakers |
| • Speaker Power: | Full frequency: 2 × 15 W |
| • Mic Pick-up Distance: | Far-field sound pickup: 6 m–8 m (19.69 ft–26.25 ft) |
| • Number of Microphones: | 2 |
| • AGC: | Yes |
| • Echo Cancellation: | Yes |
| • Polar Pattern: | Omnidirectional |
| • Intelligent Noise Filtering: | YES |
| • Power Supply: | 100–240 VAC, 50 Hz/60 Hz |
| • Power Consumption: | 120 W (typ.); 400 W (max.) |
| • Operating Temperature: | 0 °C to +40 °C (32 °F to +104 °F) |
| • Storage Temperature: | –10 °C to +50 °C (–14 °F to +122 °F) |
| • Operating Humidity: | 10%–90% (RH) |
| • Storage Humidity: | 10%–90% (RH) |
| • Product Material: | Metal casing |
| • Casing Color (Frame/Rear): | Bottom: Silver; top/left/right: black |
| • Product Dimensions: | 1,953.0 mm × 87.1 mm × 1,188.6 mm (76.90″ × 3.43″ × 46.80″) (L × W × H) |
| • Product Dimensions (with camera): | 1,953.4 mm × 87.1 mm × 1,205.1 mm (76.91″ × 3.43″ × 47.45″) |
| • Frame Size: | Top: 43.1 mm (1.70″); left/right: 16.1 mm (0.63″); bottom: 67.8 mm (2.67″) |
| • Packaging Dimensions: | 2,056 mm × 235 mm × 1,334 mm (80.94″ × 9.25″ × 52.52″) (L × W × H) |
| • Net Weight: | 64 kg (141.10 lb) |
| • Gross Weight: | 77 kg (169.76 lb) |
| • Holes Distance (VESA): | 400 mm × 750 mm (15.75″ × 29.53″) |
| • Installation: | Wall mount, mobile bracket |
