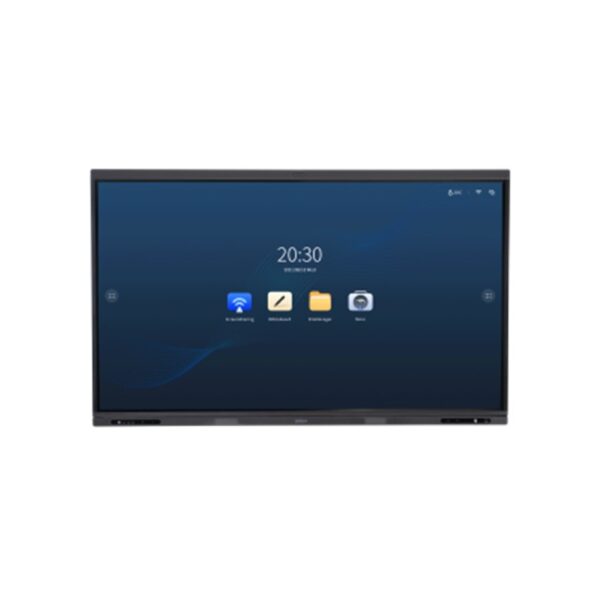

Dahua LPH86-MT440-C 86” UHD Smart Interactive Whiteboard
- 86-inch 4K UHD interactive display with Zero Air Gap technology for clear visuals and accurate touch.
- Built-in 8 MP camera and 8-microphone array for high-quality video conferencing.
- Wireless screen sharing from multiple devices for seamless collaboration.
- Pressure and tilt sensitive stylus provides smooth and natural writing.
- Secure QR-code file sharing with encryption and fingerprint access protection.
- Description
Description
Dahua LPH86-MT440-C 86″ UHD Smart Interactive Whiteboard
The Dahua LPH86-MT440-C Smart Interactive Whiteboard is designed to modernize meeting rooms, classrooms, and collaborative workspaces. Powered by Android 8.0 and equipped with a quad-core CPU and GPU architecture with 4 GB RAM and 32 GB storage, the system delivers strong processing performance for interactive collaboration, presentations, and digital content management.
Featuring a high-precision infrared touch frame with a 2 mm identification diameter and a 4K high-definition DLED display module, the whiteboard provides a responsive and accurate writing experience. Whether users are writing, presenting, controlling content, or collaborating with remote participants, the board delivers smooth interaction and clear visuals.
The system integrates multiple collaboration tools including wireless screen sharing, video conferencing, file management, HD display capabilities, and scan-and-share functions. With these integrated features, the interactive whiteboard enhances productivity and enables more efficient meetings and presentations.
4K Camera with Ultra-Wide Field of View
The built-in 8-MP camera supports a maximum resolution of 4K at 30 fps and offers an ultra-wide field of view with a diagonal angle of 112.7°, horizontal 104°, and vertical 70.2°. This wide coverage allows the camera to capture clear video across large meeting rooms while maintaining vivid image quality during video conferences.
Hidden Antenna Design for Stable Connectivity
The Wi-Fi and hotspot antennas feature a hidden front-mounted design that maintains a clean and modern appearance. This design also helps ensure strong and stable signal performance even when the display is installed flush against the wall.
Advanced Wireless Screen Sharing
The system supports wireless screen sharing with multiple advanced collaboration features. In addition to standard file sharing and wireless casting, it supports reverse control, screen grouping for multiple simultaneous transmissions, real-time transmission of mobile camera images and audio, and host mode for centralized meeting control.
Split-screen mode allows up to nine different screens to be displayed simultaneously, enabling multiple participants to present or collaborate on the same display.
Natural Writing Experience
The smart interactive whiteboard supports tilt-sensitive writing and includes pressure-sensitive stylus pens designed to replicate the feel of natural handwriting. The soft and comfortable pen nib ensures a smooth writing experience that closely resembles writing on paper.
Strong System Security
Multiple authentication methods are available to protect system access and user data, including digital password, gesture password, and fingerprint password. These security options can be applied to screen unlocking, USB permissions, touch lock, and factory reset settings.
The system supports up to 256 fingerprint entries with a fingerprint resolution of 508 DPI. It also maintains high security accuracy with a false acceptance rate below 0.001% and a false rejection rate below 0.1%.
Easy File Sharing with QR Code
The whiteboard enhances file sharing through a QR code-based system that automatically detects network environments across both intranet and extranet connections. Files can be quickly shared by scanning the generated QR code.
Additional security is provided through QR code encryption and extraction features, requiring a randomly generated six-digit verification password to access shared content.
Ideal for Professional Environments
The Dahua Smart Interactive Whiteboard is ideal for indoor environments such as meeting rooms, command centers, hospitals, banks, and other professional spaces where collaborative communication and digital presentation are essential.
Specification
| • Model: | LPH86-MT440-C |
| • Product Type: | UHD Smart Interactive Whiteboard |
| • Panel Size: | 86-inch |
| • Backlight: | DLED |
| • Resolution: | 3840 (H) × 2160 (V) |
| • Aspect Ratio: | 16:9 |
| • Brightness: | 400 cd/m² |
| • Contrast: | 1200:1 |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Lifespan: | 30,000 hours |
| • Operating System: | Android 8.0 |
| • CPU: | Dual-core A53 + Dual-core A73 |
| • CPU Frequency: | 1.5 GHz |
| • GPU: | Mali-G51 |
| • RAM: | 4 GB |
| • ROM: | 32 GB |
| • External Module OS Support: | Windows 7 / 8 / 10; Android |
| • WiFi: | Dual-band 2.4 GHz / 5 GHz |
| • Wi-Fi Hotspot: | Dual-band 2.4 GHz / 5 GHz, supports hotspot and WiFi simultaneously |
| • Touch Technology: | Infrared touch technology |
| • Touch Points: | 20 |
| • Writing Mode: | Finger + Pen |
| • Response Time: | < 10 ms |
| • Valid Touch: | 2 mm |
| • Communication Mode: | USB |
| • Camera: | 8 MP (live view) |
| • Auto Control: | Auto white balance |
| • Distortion: | ≤5% |
| • Max Resolution: | 4K @ 30 fps |
| • Field of View: | H: 104°; V: 70.2°; D: 112.7° |
| • Speakers: | 3 built-in speakers |
| • Speaker Power: | Full frequency: 15 W × 2; bass: 15 W × 1 |
| • Microphones: | 8 |
| • Pick-up Distance: | 6 m – 8 m |
| • AGC: | Yes |
| • Echo Cancellation: | Yes |
| • Noise Filtering: | Intelligent noise filtering |
| • Polar Pattern: | Omnidirectional |
| • Fingerprint Capacity: | 256 |
| • Fingerprint Resolution: | 508 DPI |
| • FAR: | <0.001% |
| • FRR: | <0.1% |
| • Light Sensor: | 1 |
| • Front Button: | 1 × Power button |
| • Front Ports: | 1 × HDMI IN; 1 × Touch; 2 × USB 3.0 |
| • Network Ports: | 2 × RJ-45 |
| • USB Ports: | 3 × USB 3.0; 1 × USB 2.0 |
| • RS-232: | 1 × RS-232 |
| • Video Input: | 3 × HDMI IN; 1 × DP; 1 × MINI AV IN; 1 × MINI YPBPR; 1 × VGA IN |
| • Video Output: | 1 × HDMI OUT |
| • Audio Input: | 1 × 3.5 mm; 1 × MIC IN |
| • Audio Output: | 1 × 3.5 mm Earphone OUT; 1 × SPDIF |
| • Touch Ports: | 2 × Touch |
| • IrDA: | 1 |
| • Power Supply: | 100 – 240 VAC, 50/60 Hz |
| • Power Consumption: | 400 W |
| • Product Dimensions: | 1960.8 × 1204.7 × 85.4 mm |
| • Operating Temperature: | –10 °C to +45 °C |
| • Storage Temperature: | –20 °C to +55 °C |
| • Operating Humidity: | 10% – 90% |
| • Storage Humidity: | 10% – 90% |
| • Material: | Metal casing |
| • Glass: | Anti-dazzle tempered glass (7 Mohs hardness) |
| • Casing Color: | Bottom: Space gray; top/left/right: black |
| • Net Weight: | 66.75 kg |
| • Gross Weight: | 87.05 kg |
| • Installation: | Wall mount; floor-standing |
