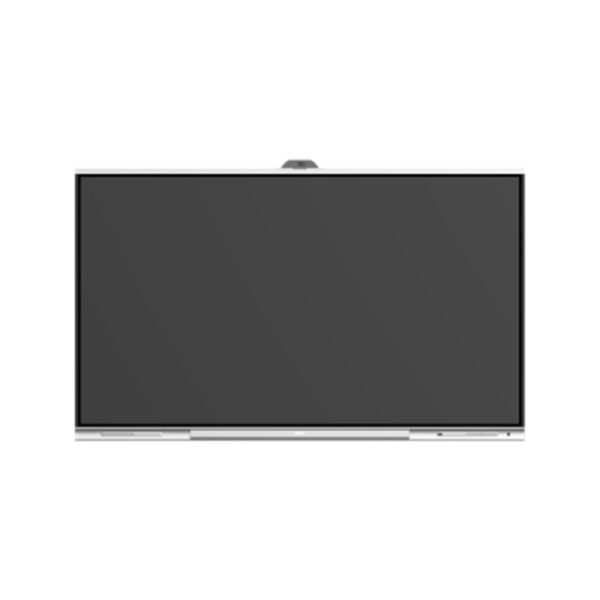

Dahua LPH98-MC470-P 98” DeepHub Pro Smart Interactive Whiteboard
- Experience sharp 4K visuals with advanced lamination for clearer viewing and more accurate touch interaction.
- Collaborate confidently with a built-in AI 4K camera and 8-array microphones for high-quality hybrid meetings.
- Share wirelessly from multiple devices and switch smoothly for faster, more productive sessions.
- Write naturally with ultra-responsive infrared touch, handwriting recognition, and multi-user interaction support.
- Protect content and users with QR file sharing, optional encryption, and a built-in fingerprint lock.
- Description
Description
LPH98-MC470-P DeepHub Pro Smart Interactive Whiteboard (98″)
The DeepHub Pro Smart Interactive Whiteboard is built for modern classrooms, meeting rooms, and hybrid collaboration. Available in 65″, 75″, 86″, and 98″ sizes, it delivers a sharp 4K UHD viewing experience and an ultra-smooth writing surface for natural, responsive annotation and brainstorming.
Clear 4K Display with Advanced Lamination
Enjoy crisp visuals with reduced parallax for more accurate writing and touch. The 65″, 75″, and 86″ models feature Zero Air Gap technology for sharper, more vivid images, while the 98″ model uses full lamination technology for enhanced clarity and viewing comfort.
AI-Powered Video Conferencing Built In
DeepHub Pro includes a built-in AI 4K camera and an 8-array microphone system to support high-quality video meetings. The far-field mic pickup and noise handling features help teams communicate clearly across rooms, making it ideal for hybrid learning and collaboration.
Wireless Sharing, Smart Tools, and Secure Collaboration
Share screens wirelessly from multiple devices with an intuitive system designed for quick setup and smooth switching. Handwriting recognition supports a natural writing workflow, while QR-code file sharing enables fast distribution of content with optional encryption for added privacy and security.
Expandable Dual-System Operation
For added flexibility, DeepHub Pro supports an optional OPS module with dual-system switching, allowing users to work between built-in Android and an external Windows/Android environment when required.
Data Protection Features
Protect user information with a built-in fingerprint lock and secure access features designed for shared environments.
Specification
| • Model: | LPH98-MC470-P |
| • Product Type: | DeepHub Pro Smart Interactive Whiteboard |
| • Panel Sizes: | 65-inch; 75-inch; 86-inch; 98-inch |
| • Backlight: | DLED |
| • Aspect Ratio: | 16:9 |
| • Resolution: | 3840 (H) × 2160 (V) |
| • Brightness: | 65-inch: 350 cd/m²; 75-inch: 350 cd/m²; 86-inch: 400 cd/m²; 98-inch: 400 cd/m² |
| • Viewing Angle: | H: 178°; V: 178° |
| • Lifespan: | 50,000 h |
| • Display Color: | 72% NTSC |
| • Refresh Rate: | 60 Hz |
| • Static Contrast: | 1200:1 |
| • Built-in System: | Android 11.0 |
| • CPU: | Quad-core A73 + Quad-core A53 |
| • CPU Frequency: | 2.2 GHz + 2.0 GHz |
| • GPU: | ARM Mali-G52 MP8 (8EE) |
| • RAM: | 12 GB (System: 8 GB, Camera: 4 GB) |
| • ROM: | 64 GB |
| • External Module OS Support: | Windows 7/8/10; Android |
| • WiFi: | Dual-band 2.4 G/5 G; supports 802.11 a/b/g/n/ac wireless frequency range |
| • Wi-Fi Hotspot: | Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time |
| • Camera Pixel: | 48 MP |
| • Camera Auto Control: | Auto flip; Auto white balance |
| • Camera Distortion: | –8.6% |
| • Camera Max. Resolution: | 3840 × 2160@30 fps |
| • Camera Storage: | 8 GB eMMC |
| • Camera Field of View: | H: 87°; V: 49°; D: 99° |
| • Face Detection: | Yes |
| • Microphone: | 8 Array |
| • Microphone Pick-up Distance: | Far-field sound pickup: 6 m–8 m (19.69 ft–26.25 ft) |
| • Microphone AGC: | Yes |
| • Echo Cancellation: | Yes |
| • Polar Pattern: | Omnidirectional |
| • Intelligent Noise Filtering: | Yes |
| • Touch Technology: | Infrared touch technology |
| • Response Time: | < 10 ms |
| • Touch Points: | Supports 20 touch points and drawing up to 20 lines |
| • Valid Touch: | 2 mm |
| • Touch Accuracy: | ± 1 mm |
| • Writing Mode: | Finger + Pen (attaches magnetically) |
| • Anti-light Interference: | Anti-dazzle tempered glass |
| • Surface Hardness: | 7 on the Mohs scale |
| • Touch Resolution: | 32767 × 32767 |
| • Multi-user Writing Points: | 10 |
| • Speaker Frequency: | 150 Hz–20 kHz |
| • Speaker Power: | Full: 15 W × 3 |
| • Built-in Speakers: | 3 |
| • Fingerprint Capacity: | 100 |
| • Fingerprint Resolution: | 160 × 160 |
| • FAR: | 0.001% |
| • Light Sensor: | 1 |
| • Front Button: | 1 × power button (right side) |
| • Front Ports: | 1 × USB 3.0 (left side) |
| • Network Port: | 1 × RJ-45 |
| • Wi-Fi Modules: | 1 × Wi-Fi; 1 × Hotspot |
| • USB Ports: | 3 × USB 3.0; 1 × Micro USB |
| • RS-232: | 1 × RS-232 |
| • Video Input: | 1 × HDMI IN |
| • Video Output: | 1 × HDMI OUT |
| • Audio Output: | 1 × 3.5 mm (Line OUT) port |
| • Touch Port: | 1 × Touch |
| • IrDA: | 1 |
| • Type-C Port: | 1 × Type-C |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Power Consumption: | 65-inch: 200 W; 75-inch: 300 W; 86-inch: 400 W; 98-inch: 600 W |
| • Standby Power: | ≤ 0.5 W |
| • Operating Temperature: | 0 °C to +40 °C (+32 °F to +104 °F) |
| • Storage Temperature: | –10 °C to +50 °C (+14 °F to +122 °F) |
| • Operating Humidity: | 10%–90% |
| • Storage Humidity: | 10%–90% |
| • Product Material: | Metal casing |
| • Protective Glass: | Anti-dazzle tempered glass with a hardness of 7 on the Mohs scale |
| • Casing Color: | Bottom/top: Silver; left/right: black |
| • Product Dimensions: | 65-inch: 1,485 mm x 967.8 mm x 93.3 mm (58.46″ × 38.10″ × 3.67″) 75-inch: 1,707.2 mm x 1,094.47 mm x 93.3 mm (67.21″ × 43.09″ × 3.67″) 86-inch: 1,953.2 mm x 1,232.7 mm x 93.3 mm (76.90″ × 48.53″ × 3.67″) 98-inch: 2,216.4 mm x 1,381.7 mm x 109.6 mm (87.26″ × 54.40″ × 4.31″) |
| • Packaging Dimensions (Carton): | 65-inch: 1,587 mm x 1,055 mm x 260 mm (62.48″ × 41.53″ × 10.24″) 75-inch: 1,810 mm × 1,150 mm × 260 mm (71.26″ × 45.28″ ×10.24″) 86-inch: 2,055 mm × 1,325 mm × 260 mm (80.91″ × 52.17″ × 10.24″) 98-inch: 2,337 mm × 1,470 mm × 255 mm (92.01″ × 57.87″ × 10.04″) |
| • Packaging Dimensions (Pallet): | 65-inch: 1,620 mm x 1,060 mm x 120 mm (63.78″ × 41.73″ × 4.72″) 75-inch: 1,830 mm × 1,060 mm × 120 mm (72.05″ × 41.73″ × 4.72″) 86-inch: 2,100 mm × 1,060 mm × 120 mm (82.68″ × 41.73″ × 4.72″) 98-inch: 2,340 mm × 1,040 mm × 155 mm (92.13″ × 40.94″ × 6.10″) |
| • Net Weight: | 65-inch: 40 kg (88.18 lb) 75-inch: 54 kg (119.05 lb) 86-inch: 67 kg (147.71 lb) 98-inch: 91 kg (200.62 lb) |
| • Gross Weight: | 65-inch: 50 kg (110.23 lb) 75-inch: 65 kg (143.30 lb) 86-inch: 80 kg (176.37 lb) 98-inch: 107 kg (235.89 lb) |
| • VESA Holes Distance: | 65-inch: 500 mm× 400 mm (19.69″× 15.75″) 75-inch: 600 mm× 400 mm (23.62″× 15.75″) 86-inch: 800 mm× 400 mm (31.50″× 15.75″) 98-inch: 1000 mm× 400 mm (39.37″× 15.75″) |
| • Installation: | Wall mount; mobile bracket |
