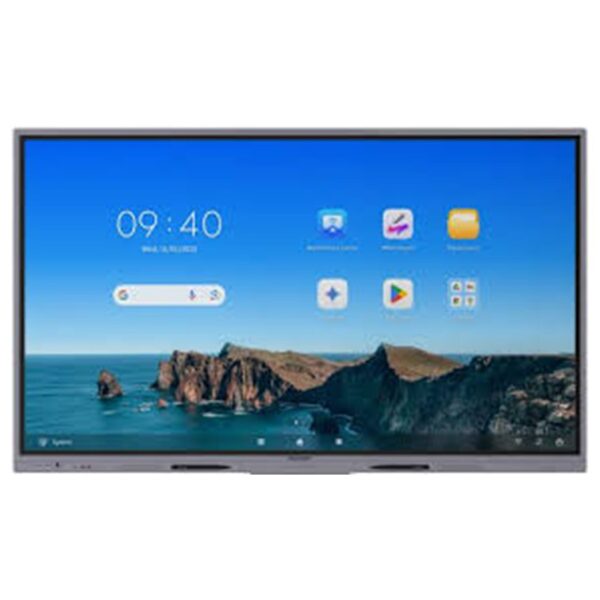

Hikvision DS-D5A65RB/A3 65-inch 4K Interactive Display

Description

The Hikvision DS-D5A65RB/A3 65-inch 4K Interactive Display is designed to support modern digital learning and collaborative meeting environments. Featuring a large 65-inch UHD display with a resolution of 3840 × 2160, the screen delivers sharp visuals, vibrant colours, and excellent clarity for presentations, training sessions, and interactive collaboration.

With anti-glare and anti-blocking technology, the display ensures smooth interaction while maintaining clear visibility even in brightly lit environments. The infrared touch system supports up to 50-point multi-touch, allowing multiple users to write, annotate, and interact simultaneously with a smooth and responsive writing experience.

The DS-D5A65RB/A3 features an all-in-one design with durable tempered anti-glare glass and intelligent temperature control for safe and reliable long-term operation. A built-in network switch chip helps simplify installation by eliminating the need for an external network switch, making deployment easier in classrooms and meeting rooms.

Powered by Android 14 and EDLA certified, the display is built for modern enterprise and education environments. With 8 GB RAM and 128 GB storage, it provides smooth performance for applications, digital whiteboards, and collaboration tools. An optional OPS module also allows Windows to run alongside Android, enabling full compatibility with conferencing platforms and productivity software.

The display includes integrated dual 20 W speakers for clear audio during presentations and meetings. Extensive connectivity including HDMI 2.1, USB, Type-C, LAN, Wi-Fi 6, Bluetooth 5.4, and NFC enables seamless integration with laptops, conferencing systems, and wireless presentation devices.

Combining powerful performance, reliable build quality, and flexible connectivity, the Hikvision DS-D5A65RB/A3 provides an advanced interactive display solution for modern classrooms, corporate meeting spaces, and collaborative environments.

---

Specification

• Model: DS-D5A65RB/A3 (EDLA)

• Display: Screen Size : 65 inch Backlight : DLED Resolution : 3840 × 2160 @60 Hz Brightness : 400 cd/m² Panel Type : VA Response Time : 5 ms Contrast Ratio : 5000:1 (Static), 30,000:1 (Dynamic) Color Depth : 10 bit (8 bit + FRC) Display Color : 1.07 B Color Gamut : 72% NTSC (CIE1931) Refresh Rate : 60 Hz Viewing Angle : 178° (H) / 178° (V) Aspect Ratio : 16:9 Pixel Pitch : 0.124 (H) × 0.372 (V) mm Surface Glass : Anti-Glare Glass Surface Hardness : 9H (Pencil) / 7 (Mohs) Surface Haze : 25% Glass Bonding Method : Zero Lamination Display Area : 1428.48 (H) × 803.52 (V) mm Working Duration : 7 × 16 H Transmittance : 88% ± 3 Lifespan : 50,000 hours

• Touch System: Type : Infrared Touch Screen Touch Point : Up to 50-point multi-touch Touch Response Time : ≤ 5 ms Minimum Touch Object : ≥ 1.5 mm (≥ 90% touching area) Touch Precision : ± 0.5 mm (≥ 90% touching area) Touch Resolution : 32768 × 32768

• Built-in System: Operating System : Android 14.0 Processor : Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) GPU : Mali-G52 MC3 Memory : 8 GB Built-in Storage : 128 GB HDCP Version : 2.3 / 2.0 / 1.4

• Audio: Loudspeaker : Built-in 2 × 20 W

• Connectivity: Bluetooth : Bluetooth 5.4 (BLE) NFC : 13.56 MHz card reader (ISO 14443A / ISO 14443B) Light Sensor : Yes

• Interfaces: Video & Audio Input : HDMI 2.1 TMDS × 3 (Front × 1, Rear × 2; supports HDCP 2.3 / 2.2 / 1.4; HDMI1 supports CEC & ARC), Audio × 1 (Rear) Video & Audio Output : Audio × 1 (Rear) Control Interface : TOUCH-USB 2.0 × 1 (Front), TOUCH-USB 2.0 × 1 (Rear), RS232 × 1 (Rear)

• Network: LAN : 1000 Mbps × 2 (Rear) Wi-Fi : Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO Authentication Protocols : WEP, WPA, WPA2, PSK, 802.1X EAP

• Data Transmission: USB 3.0 × 2 (Front) USB 2.0 × 2 (Rear) Type-C × 1 (Front, supports USB 3.0 and 15 W charging)

• Power: Power Supply : 100 – 240 VAC, 50/60 Hz Standby Consumption : ≤ 0.5 W Average Consumption : < 160 W

• Working Environment: Working Temperature : 0 °C to 40 °C (32 °F to 104 °F) Working Humidity : 10% – 90% RH

• Dimensions & Weight: Product Dimensions (Without Wall Attachment) : 1488.48 × 893.4 × 83.0 mm Product Dimensions (With Wall Attachment) : 1488.48 × 893.4 × 111.7 mm Package Dimensions : 1662 × 1062 × 223 mm Net Weight : 32.85 kg Gross Weight : 44.01 kg VESA Mount : 600 × 400 mm

• Accessories: Wall mount bracket Hook User manual Touch writing pen Packing list Power cable Remote control

---
