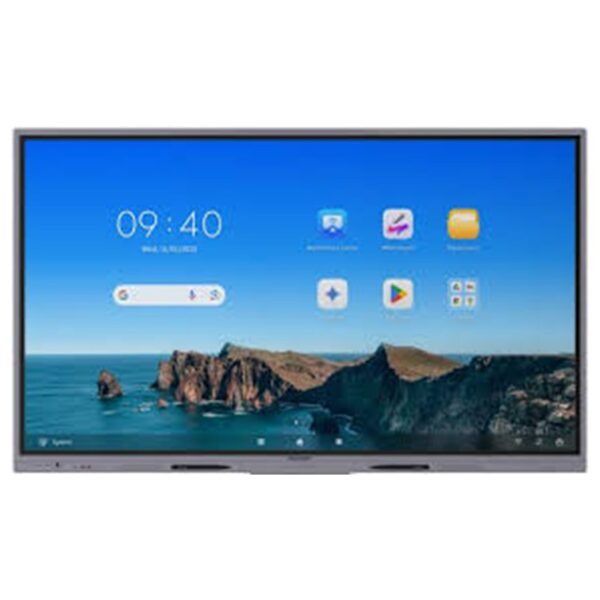

Hikvision DS-D5A86RB/A3 86-inch 4K Interactive Display

Description

The Hikvision DS-D5A86RB/A3 86-inch 4K Interactive Display is a powerful collaboration solution designed for large classrooms, lecture halls, and corporate meeting environments. Featuring a large 86-inch UHD display with a resolution of 3840 × 2160, it delivers crisp visuals, vibrant colours, and clear text, making presentations, training materials, and collaborative content easy to view even in large spaces.

With anti-glare and anti-blocking technology, the display provides smooth interaction and excellent visibility under bright lighting conditions. The advanced infrared touch system supports up to 50-point multi-touch, allowing multiple users to write, annotate, and collaborate simultaneously with a fast and natural writing experience.

The DS-D5A86RB/A3 features an all-in-one design with durable tempered anti-glare glass and intelligent temperature control for reliable long-term operation. A built-in network switch chip eliminates the need for an external network switch, simplifying installation and connectivity in classrooms and meeting rooms.

Powered by Android 14 and EDLA certification, the display provides secure and enterprise-ready functionality. With 8 GB RAM and 128 GB storage, it supports smooth performance for digital whiteboarding, presentations, and collaboration tools. An optional OPS module also allows Windows to run alongside Android, enabling compatibility with conferencing platforms and productivity software.

The display includes integrated dual 20 W speakers that deliver clear sound for presentations and meetings. Extensive connectivity including HDMI 2.1, USB, Type-C, LAN, Wi-Fi 6, Bluetooth 5.4, and NFC ensures seamless integration with laptops, conferencing systems, and wireless presentation solutions.

Combining large-format visuals, advanced touch capabilities, and powerful system performance, the Hikvision DS-D5A86RB/A3 is an ideal interactive display for modern digital classrooms, collaborative meeting spaces, and professional presentation environments.

---

Specification

• Model: DS-D5A86RB/A3 (EDLA)

• Display: Screen Size : 86 inch Backlight : DLED Resolution : 3840 × 2160 @60 Hz Brightness : 400 cd/m² Panel Type : IPS Response Time : 5 ms Contrast Ratio : 1200:1 (Static), 15,000:1 (Dynamic) Color Depth : 10 bit (8 bit + FRC) Display Color : 1.07 B Color Gamut : 72% NTSC (CIE1931) Refresh Rate : 60 Hz Viewing Angle : 178° (H) / 178° (V) Aspect Ratio : 16:9 Pixel Pitch : 0.164 (H) × 0.493 (V) mm Surface Glass : Anti-Glare Glass Surface Hardness : 9H (Pencil) / 7 (Mohs) Surface Haze : 25% Glass Bonding Method : Zero Lamination Display Area : 1895.04 (H) × 1065.96 (V) mm Working Duration : 7 × 16 H Transmittance : 88% ± 3 Lifespan : 50,000 hours

• Touch System: Type : Infrared Touch Screen Touch Point : Up to 50-point multi-touch Touch Response Time : ≤ 5 ms Minimum Touch Object : ≥ 1.5 mm (≥ 90% touching area) Touch Precision : ± 0.5 mm (≥ 90% touching area) Touch Resolution : 32768 × 32768

• Built-in System: Operating System : Android 14.0 Processor : Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) GPU : Mali-G52 MC3 Memory : 8 GB Built-in Storage : 128 GB HDCP Version : 2.3 / 2.0 / 1.4

• Audio: Loudspeaker : Built-in 2 × 20 W

• Connectivity: Bluetooth : Bluetooth 5.4 (BLE) NFC : 13.56 MHz card reader (ISO 14443A / ISO 14443B) Light Sensor : Yes

• Interfaces: Video & Audio Input : HDMI 2.1 TMDS × 3 (Front × 1, Rear × 2; supports HDCP 2.3 / 2.2 / 1.4; HDMI1 supports CEC & ARC), Audio × 1 (Rear) Video & Audio Output : Audio × 1 (Rear) Control Interface : TOUCH-USB 2.0 × 1 (Front), TOUCH-USB 2.0 × 1 (Rear), RS232 × 1 (Rear)

• Network: LAN : 1000 Mbps × 2 (Rear) Wi-Fi : Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO Authentication Protocols : WEP, WPA, WPA2, PSK, 802.1X EAP

• Data Transmission: USB 3.0 × 2 (Front) USB 2.0 × 2 (Rear) Type-C × 1 (Front, supports USB 3.0 and 15 W charging)

• Power: Power Supply : 100 – 240 VAC, 50/60 Hz Standby Consumption : ≤ 0.5 W Average Consumption : < 210 W

• Working Environment: Working Temperature : 0 °C to 40 °C (32 °F to 104 °F) Working Humidity : 10% – 90% RH

• Dimensions & Weight: Product Dimensions (Without Wall Attachment) : 1957.04 × 1156.5 × 95.8 mm Product Dimensions (With Wall Attachment) : 1957.04 × 1156.5 × 123.0 mm Package Dimensions : 2157 × 1345 × 223 mm Net Weight : 52.38 kg Gross Weight : 69.89 kg VESA Mount : 800 × 600 mm

• Accessories: Wall mount bracket Hook User manual Touch writing pen Packing list Power cable Remote control

---
