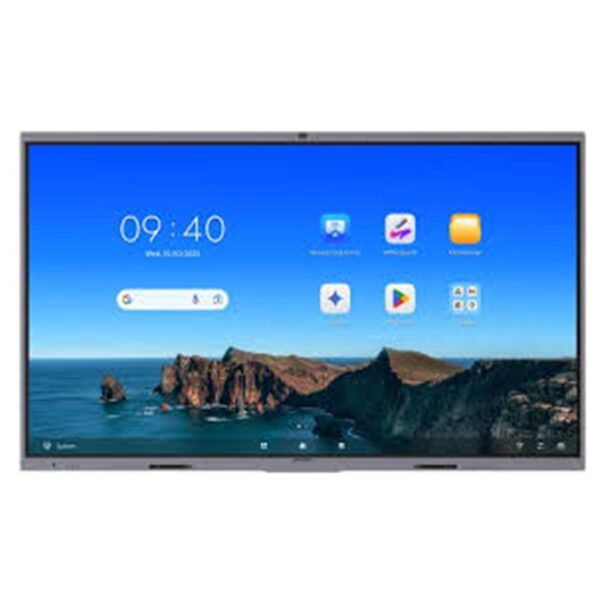

Hikvision DS-D5A86RB/B3 86-inch 4K Interactive Display

Description

The Hikvision DS-D5A86RB/B3 86-inch 4K Interactive Display is designed for large classrooms, lecture halls, and professional meeting environments that require powerful collaboration tools and high-quality visual performance. With an ultra-high-definition 4K resolution of 3840 × 2160, the large 86-inch screen delivers sharp images, vivid colours, and excellent clarity for presentations, training materials, and interactive collaboration.

Featuring anti-glare and anti-blocking technology, the display ensures smooth interaction while maintaining excellent visibility even in bright indoor environments. The advanced infrared touch technology supports up to 50-point multi-touch, allowing multiple users to write, annotate, and interact with the screen simultaneously with a fast and natural writing experience.

The DS-D5A86RB/B3 features a robust all-in-one design with durable tempered anti-glare glass and intelligent temperature control for reliable and safe long-term operation. A built-in network switch chip simplifies installation by removing the need for an external network switch, making deployment easier in classrooms and meeting rooms.

Powered by Android 14 and EDLA certified, the display delivers enterprise-ready performance and enhanced security. With 8 GB RAM and 128 GB storage, it provides smooth performance for applications, digital whiteboards, and collaboration tools. An optional OPS module allows the display to run Windows alongside Android, enabling compatibility with conferencing platforms and productivity software.

The display integrates a built-in camera capable of capturing up to 48 MP photos and 8 MP video, along with an 8-array omnidirectional microphone system that provides echo reduction and intelligent noise cancellation with voice pickup distances up to 12 metres. Dual 20 W speakers ensure clear sound for presentations and video conferencing.

With extensive connectivity including HDMI 2.1, USB, Type-C, LAN, Wi-Fi 6, Bluetooth 5.4, and NFC, the Hikvision DS-D5A86RB/B3 easily integrates with laptops, conferencing systems, and wireless presentation solutions, making it a powerful interactive display for modern digital collaboration environments.

---

Specification

• Model: DS-D5A86RB/B3 (EDLA)

• Display: Screen Size : 86 inch Backlight : DLED Resolution : 3840 × 2160 @60 Hz Brightness : 400 cd/m² Panel Type : IPS Response Time : 5 ms Contrast Ratio : 1200:1 (Static), 15,000:1 (Dynamic) Color Depth : 10 bit (8 bit + FRC) Display Color : 1.07 B Color Gamut : 72% NTSC (CIE1931) Refresh Rate : 60 Hz Viewing Angle : 178° (H) / 178° (V) Aspect Ratio : 16:9 Pixel Pitch : 0.164 (H) × 0.493 (V) mm Surface Glass : Anti-Glare Glass Surface Hardness : 9H (Pencil) / 7 (Mohs) Surface Haze : 25% Glass Bonding Method : Zero Lamination Display Area : 1895.04 (H) × 1065.96 (V) mm Working Duration : 7 × 16 H Transmittance : 88% ± 3 Lifespan : 50,000 hours

• Touch System: Type : Infrared Touch Screen Touch Point : Up to 50-point multi-touch Touch Response Time : ≤ 5 ms Minimum Touch Object : ≥ 1.5 mm (≥ 90% touching area) Touch Precision : ± 0.5 mm (≥ 90% touching area) Touch Resolution : 32768 × 32768

• Built-in System: Operating System : Android 14.0 Processor : Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) GPU : Mali-G52 MC3 Memory : 8 GB Built-in Storage : 128 GB HDCP Version : 2.3 / 2.2 / 1.4

• Camera: Photo Resolution : 48 MP Video Resolution : 8 MP Camera Resolution Ratio : Up to 4K Field Angle : 93.4° (Diagonal), 84.5° (Horizontal), 54.1° (Vertical) Distortion : ≤ 2.5% Camera Function : Supports intelligent switching between Android system, OPS, and PC

• Microphone: Specification : Omni-directional 8-array layout Mic Function : Echo reduction and smart noise-cancellation Voice Distance : 12 m Sampling Rate : 48 K Mic Depth : 16 bit

• Audio: Loudspeaker : Built-in 2 × 20 W

• Connectivity: Bluetooth : Bluetooth 5.4 (BLE) NFC : 13.56 MHz card reader (ISO 14443A / ISO 14443B) Light Sensor : Yes

• Image Processing Technology: 3D digital noise reduction Face detection Automatic white balance Automatic purple edge removal Automatic defogging Shadow correction

• Audio Processing Technology: Dereverberation Adaptive noise reduction Adaptive non-stationary noise reduction Adaptive echo cancellation Automatic gain control Automatic electrical level control Sound source localization Speech dynamic detection Digital beam forming Speech detection

• Interfaces: Video & Audio Input : HDMI 2.1 TMDS × 3 (Front × 1, Rear × 2; supports HDCP 2.3 / 2.2 / 1.4; HDMI1 supports CEC & ARC), Audio × 1 (Rear) Video & Audio Output : Audio × 1 (Rear) Control Interface : TOUCH-USB 2.0 × 1 (Front), TOUCH-USB 2.0 × 1 (Rear), RS232 × 1 (Rear)

• Network: LAN : 1000 Mbps × 2 (Rear) Wi-Fi : Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO Authentication Protocols : WEP, WPA, WPA2, PSK, 802.1X EAP

• Data Transmission: USB 3.0 × 2 (Front) USB 2.0 × 2 (Rear) Type-C × 1 (Front, supports USB 3.0 and 15 W charging)

• Power: Power Supply : 100 – 240 VAC, 50/60 Hz Standby Consumption : ≤ 0.5 W Average Consumption : < 210 W

• Working Environment: Working Temperature : 0 °C to 40 °C (32 °F to 104 °F) Working Humidity : 10% – 90% RH

• Dimensions & Weight: Product Dimensions (Without Wall Attachment) : 1957.04 × 1173.7 × 95.8 mm Product Dimensions (With Wall Attachment) : 1957.04 × 1173.7 × 123.0 mm Package Dimensions : 2157 × 1345 × 223 mm Net Weight : 52.5 kg Gross Weight : 72.93 kg VESA Mount : 800 × 600 mm

• Accessories: Wall mount bracket Hook User manual Touch writing pen Packing list Power cable Remote control

---
