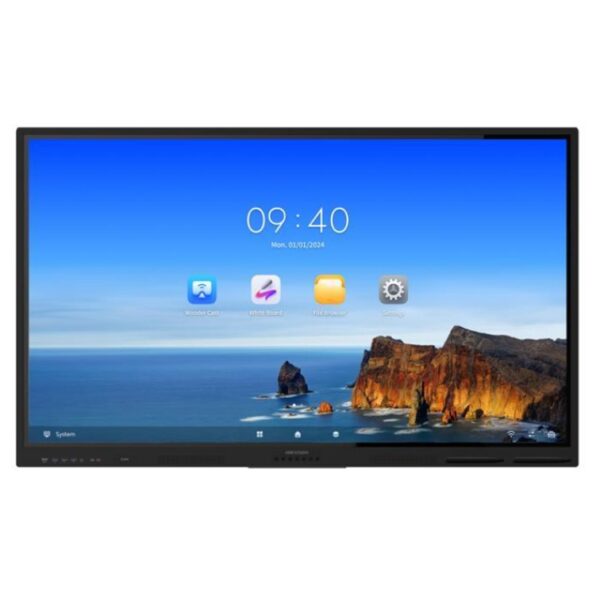

Hikvision DS-D5B65RB/EL 65-inch 4K Interactive Display

Description

The Hikvision DS-D5B65RB/EL 65-inch 4K Interactive Display is designed to deliver powerful collaboration and presentation capabilities for classrooms, meeting rooms, and training environments. Featuring an ultra-high-definition 4K resolution of 3840 × 2160, the large 65-inch display provides crisp visuals, vibrant colours, and clear text, making it ideal for presentations, digital learning, and professional collaboration.

Built with anti-glare and anti-blocking technology, the display ensures smooth interaction and excellent visibility even in bright indoor environments. The advanced infrared touch system supports up to 40-point multi-touch, allowing multiple users to write, annotate, and collaborate simultaneously with a natural and responsive writing experience.

The display operates on an integrated Android 13 system powered by a quad-core Cortex-A55 processor with 8 GB of memory and 64 GB of storage. This enables smooth operation of applications, whiteboarding tools, and presentation software. For enhanced functionality, users can install an optional OPS module to run Windows alongside Android, providing a flexible dual-system environment suitable for video conferencing and enterprise productivity applications.

Designed for professional and educational environments, the display features built-in dual 20 W speakers for clear audio during presentations and meetings. The multi-button front control design allows quick access to frequently used functions, improving usability in classrooms and collaborative workspaces.

With versatile connectivity options including HDMI, USB, Type-C, LAN, Wi-Fi, Bluetooth 5.2, and NFC support, the Hikvision DS-D5B65RB/EL integrates easily with laptops, conferencing systems, and wireless presentation tools. Combined with durable anti-glare glass and a lifespan of up to 50,000 hours, this interactive display provides a reliable and efficient solution for modern digital collaboration.

---

Specification

• Model: DS-D5B65RB/EL

• Display: Screen Size : 65 inch Backlight : DLED Resolution : 3840 × 2160 @60 Hz Brightness : 400 cd/m² (Typ.) Panel Type : VA Response Time : 5 ms Contrast Ratio : 5000:1 (Static), 30,000:1 (Dynamic) Color Depth : 10 bit (8 bit + FRC) Display Color : 1.07G Color Gamut : 72% NTSC (CIE1931) Refresh Rate : 60 Hz Viewing Angle : 178° (H) / 178° (V) Aspect Ratio : 16:9 Pixel Pitch : 0.124 (H) × 0.372 (V) mm Surface Glass : 3.2 mm Anti-Glare Glass Surface Hardness : 9H (Pencil) / 7 (Mohs) Surface Haze : 25% Display Area : 1428.48 mm × 803.52 mm Working Duration : 7 × 16 H Transmittance : 88% ± 3 Lifespan : 50,000 hours

• Touch System: Type : Infrared Touch Screen Touch Point : 40-point multi-touch Touch Response Time : ＜ 5 ms Minimum Touch Object : ≥ 2 mm (≥ 90% touching area) Touch Precision : ± 1 mm (≥ 90% touching area) Touch Resolution : 32767 × 32767

• Built-in System: Operating System : Android 13.0 CPU : Cortex-A55 × 4 (1.92 GHz) GPU : Mali-G52 MP2 (2EE) Memory : 8 GB Built-in Storage : 64 GB HDCP Version : Supports 1.4 / 2.2 / 2.3

• Audio: Loudspeaker : Built-in 2 × 20 W Speaker Frequency : 200 – 20 kHz

• Connectivity: Bluetooth : Bluetooth 5.2 (BLE) NFC : Card reader supported Light Sensor : Yes

• Interfaces: Video & Audio Input : HDMI 2.0 × 2, Audio In × 1 Video & Audio Output : Audio Out × 1 Control Interface : TOUCH-USB 2.0 × 1, RS232 × 1

• Network: LAN : 100 Mbps × 2 Wi-Fi AP : IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz / 5 GHz) Wi-Fi Station : IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz / 5 GHz) Authentication Protocols : WEP, WPA, WPA2, PSK, 802.1X EAP

• Data Transmission: USB 3.0 × 3 USB 2.0 × 2 Type-C × 1 (USB 2.0 supported)

• Power: Power Supply : 100 – 240 VAC, 50/60 Hz Standby Consumption : ≤ 0.5 W Max Consumption : 184 W Average Consumption : 153 W

• Working Environment: Working Temperature : 0 °C to 40 °C (32 °F to 104 °F) Working Humidity : 10% – 90% RH

• Dimensions & Weight: Product Dimensions : 1491.88 × 901.59 × 82.3 mm Package Dimensions : 1662 × 1062 × 223 mm Net Weight : 31.2 kg Gross Weight : 45.6 kg VESA Mount : 600 × 400 mm

• Accessories: Wall mount bracket Hook User manual Stylus × 2 Packing list 1.5 m power cable (European standard) Remote controller

---
