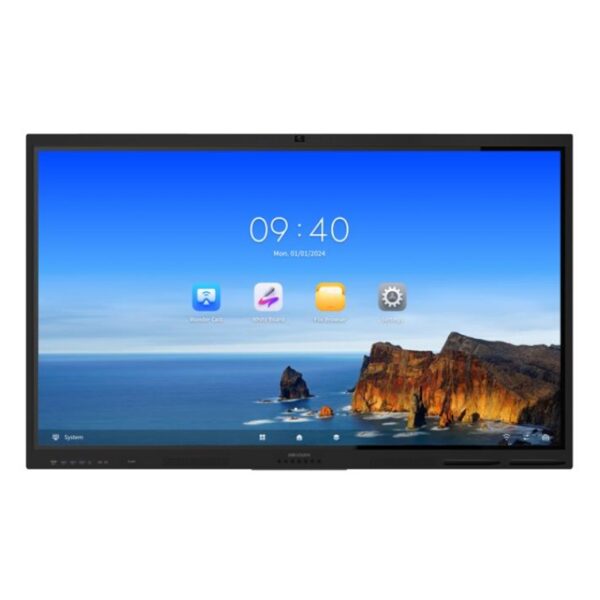

Hikvision DS-D5B65RB/FL 65-inch 4K Interactive Display

Description

The Hikvision DS-D5B65RB/FL 65-inch 4K Interactive Display is designed to enhance collaboration, digital learning, and presentations in classrooms, meeting rooms, and professional environments. Featuring a large 65-inch UHD display with a resolution of 3840 × 2160, it delivers sharp visuals, vivid colours, and clear text for presentations, teaching materials, and collaborative work.

Built with anti-glare and anti-blocking technology, the display ensures smooth interaction and excellent visibility even under bright indoor lighting conditions. The infrared touch system supports up to 40-point multi-touch, allowing multiple users to write, draw, and collaborate simultaneously with a responsive and natural writing experience.

The display runs on an integrated Android 13 operating system powered by a Cortex-A55 quad-core processor with 8 GB of RAM and 128 GB of storage. This provides fast and smooth performance for applications, whiteboarding tools, and collaborative software. For additional flexibility, an optional OPS module can be installed to run Windows alongside Android, enabling full compatibility with video conferencing platforms and productivity applications.

Designed for modern hybrid collaboration, the DS-D5B65RB/FL includes a built-in camera capable of up to 48 MP photos and up to 8 MP video when used with Windows systems. It also features an 8-array omnidirectional microphone system with echo reduction and intelligent noise cancellation, allowing clear voice pickup from distances of up to 12 metres.

Integrated dual 20 W speakers provide clear audio for presentations and meetings, while extensive connectivity including HDMI, USB, Type-C, LAN, Wi-Fi, Bluetooth 5.2, and NFC allows seamless integration with laptops, conferencing systems, and wireless presentation tools. With durable anti-glare glass and a lifespan of up to 50,000 hours, the Hikvision DS-D5B65RB/FL is a reliable interactive display solution for modern collaboration environments.

---

Specification

• Model: DS-D5B65RB/FL

• Display: Screen Size : 65 inch Backlight : DLED Resolution : 3840 × 2160 @60 Hz Brightness : 400 cd/m² (Typ.) Panel Type : VA Response Time : 5 ms Contrast Ratio : 5000:1 (Static), 30,000:1 (Dynamic) Color Depth : 10 bit (8 bit + FRC) Display Color : 1.07 G Color Gamut : 72% NTSC (CIE1931) Refresh Rate : 60 Hz Viewing Angle : 178° (H) / 178° (V) Aspect Ratio : 16:9 Pixel Pitch : 0.124 (H) × 0.372 (V) mm Surface Glass : 3.2 mm Anti-Glare Glass Surface Hardness : 9H (Pencil) / 7 (Mohs) Surface Haze : 25% Display Area : 1428.48 mm × 803.52 mm Working Duration : 7 × 16 H Transmittance : ≥ 88% Lifespan : 50,000 hours

• Touch System: Type : Infrared Touch Screen Touch Point : 40-point multi-touch Touch Response Time : ＜ 5 ms Minimum Touch Object : ≥ 2 mm (≥ 90% touching area) Touch Precision : ± 1 mm (≥ 90% touching area) Touch Resolution : 32767 × 32767

• Built-in System: Operating System : Android 13.0 CPU : Cortex-A55 × 4 (1.92 GHz) GPU : Mali-G52 MP2 (2EE) Memory : 8 GB Built-in Storage : 128 GB HDCP Version : Supports 1.4 / 2.2 / 2.3

• Camera: Photo Resolution : Up to 48 MP (Android) Video Resolution : Up to 8 MP (Windows) / 2 MP (Android) Camera Resolution Ratio : Up to 4K Field Angle : 93.4° (Diagonal), 84.5° (Horizontal), 54.1° (Vertical) Distortion : ≤ 2.5% Camera Function : Intelligent switching between Android system, OPS, and PC

• Microphone: Specification : Omni-directional 8-array layout Mic Function : Echo reduction and smart noise-cancellation Voice Distance : 12 m Sampling Rate : 32 K Mic Depth : 16 bit

• Audio: Loudspeaker : Built-in 2 × 20 W Speaker Frequency : 200 – 20 kHz

• Connectivity: Bluetooth : Bluetooth 5.2 (BLE) NFC : Card reader supported Light Sensor : Yes

• Interfaces: Video & Audio Input : HDMI 2.0 × 2, Audio In × 1 Video & Audio Output : Audio Out × 1 Control Interface : TOUCH-USB 2.0 × 1, RS232 × 1

• Network: LAN : 100 Mbps × 2 Wi-Fi AP : IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz / 5 GHz) Wi-Fi Station : IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz / 5 GHz) Authentication Protocols : WEP, WPA, WPA2, PSK, 802.1X EAP

• Data Transmission: USB 3.0 × 3 USB 2.0 × 2 Type-C × 1 (USB 2.0 supported)

• Power: Power Supply : 100 – 240 VAC, 50/60 Hz Standby Consumption : ≤ 0.5 W Max Consumption : 184 W Average Consumption : 153 W

• Working Environment: Working Temperature : 0 °C to 40 °C (32 °F to 104 °F) Working Humidity : 10% – 90% RH

• Dimensions & Weight: Product Dimensions (Without Wall Attachment) : 1491.88 × 914.6 × 82.3 mm Product Dimensions (With Wall Attachment) : 1491.88 × 914.6 × 113.84 mm Package Dimensions : 1662 × 1062 × 223 mm Net Weight : 33.66 kg Gross Weight : 45.49 kg VESA Mount : 600 × 400 mm

• Accessories: Wall mount bracket Hook User manual Stylus × 2 Packing list 1.5 m power cable (European standard) Remote controller

---
