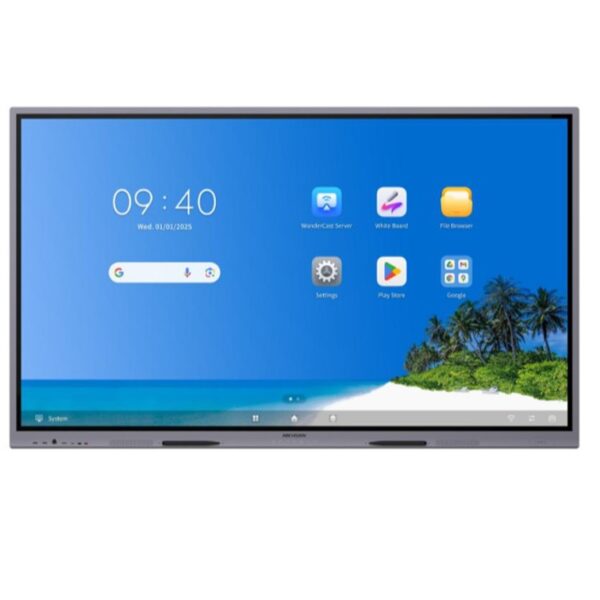

Hikvision DS-D5B75RB/EP 75-inch 4K Interactive Display

Description

Hikvision DS-D5B75RB/EP 75″ 4K Interactive Display

The Hikvision DS-D5B75RB/EP is a 75-inch 4K interactive display designed for classrooms, training rooms and collaborative meeting environments. It combines advanced touch technology, ultra-high-definition display, intelligent networking and audio capabilities into a single all-in-one interactive display solution.

Featuring UHD 4K resolution of 3840 × 2160, the display delivers sharp visuals, vibrant colours and wide viewing angles for presentations, lessons and collaboration. The anti-glare tempered glass surface reduces reflections while ensuring smooth and responsive touch interaction.

The display supports dual operating systems with Android 14 built in and optional Windows support via an OPS module. This allows users to run conferencing platforms, productivity applications and collaboration tools efficiently while maintaining flexible system integration. EDLA certification improves compatibility with enterprise and education ecosystems.

Supporting up to 50-point infrared multi-touch, the display enables multiple users to interact simultaneously for collaborative learning, brainstorming and presentations. The responsive touch technology provides a smooth and natural writing experience similar to a traditional whiteboard.

The DS-D5B75RB/EP also features Wi-Fi 6 connectivity, multiple HDMI and USB interfaces, and USB-C ports supporting display input and charging. Combined with intelligent temperature control, tempered glass protection and built-in speakers, the display is engineered for reliable long-term operation in professional environments.

---

Specification

• Product Model:	DS-D5B75RB/EP
• Screen Size:	75 inch
• Backlight:	DLED
• Pixel Pitch:	0.143 (H) × 0.429 (V) mm
• Resolution:	3840 × 2160 @60 Hz
• Brightness:	450 cd/m² (Max.); 400 cd/m² (Typ.)
• Color Depth:	10 bit
• Display Color:	1.07 G
• Response Time:	5 ms
• Panel Type:	VA
• Contrast Ratio:	5000:1 (Static); 30,000:1 (Dynamic)
• Color Gamut:	72% NTSC (CIE1931) (Typ.)
• Refresh Rate:	60 Hz
• Viewing Angle:	178° (H) / 178° (V)
• Aspect Ratio:	16:9
• Surface Hardness:	9H (Pencil); 7 (Mohs)
• Surface Glass:	Anti-Glare Glass
• Surface Haze:	25% Haze
• Glass Bonding Method:	Zero Lamination
• Display Area:	1650.24 × 928.26 mm
• Working Duration:	7 × 16 H
• Transmittance:	88% ± 3
• Lifespan:	50,000 hours
• Touch Type:	Infrared Touch Screen
• Touch Points:	Up to 50-point multi-touch
• Touch Response Time:	≤ 2 ms
• Minimum Touch Object:	≥ 1.5 mm (≥ 90% touching area)
• Touch Precision:	± 0.5 mm (≥ 90% touching area)
• Touch Resolution:	32768 × 32768
• Operating System:	Android 14.0
• Memory:	8 GB
• Built-in Storage:	128 GB
• Processor:	Quad-core Cortex-A72 ×4 (2.2 GHz) + Quad-core Cortex-A53 ×4 (1.8 GHz)
• GPU:	Mali-G52 MC3
• HDCP Version:	2.3 / 2.2 / 1.4
• Loudspeaker:	Built-in 2 × 20 W + 25 W loudspeaker
• Bluetooth:	Bluetooth 5.4 (BLE)
• NFC:	Support card reader 13.56 MHz (ISO 14443A / ISO 14443B)
• Light Sensor:	Yes
• Video & Audio Input:	HDMI 2.0 ×3 (Front ×1, Rear ×2); VGA ×1; Audio ×1
• Video & Audio Output:	HDMI 2.0 ×1; Audio ×1; SPDIF ×1
• Control Interface:	TOUCH-USB 3.0 ×1; TOUCH-USB 2.0 ×2; RS232 ×1
• Network Interface:	LAN (1000 Mbps) ×2; Wi-Fi 6 AP & Station (2.4G / 5G)
• Data Transmission Interface:	USB 3.0 ×3; USB 2.0 ×2; Type-C ×2 (DP IN 1.4, 65W charging)
• Power Supply:	100–240 VAC, 50/60 Hz
• Standby Consumption:	≤ 0.5 W
• Average Consumption:	< 189 W
• Working Temperature:	0 °C to 40 °C
• Working Humidity:	10%–90% RH
• VESA Mount:	800 × 400 mm
• Product Dimensions (Without Wall Attachment):	1709.8 × 1017.3 × 83.2 mm
• Product Dimensions (With Wall Attachment):	1709.8 × 1017.3 × 110.4 mm
• Package Dimensions:	1907 × 1160 × 223 mm
• Net Weight:	45.1 kg
• Gross Weight:	62.4 kg
