Hikvision DS-D5B75RB/FP 75-inch 4K Interactive Display
- 75-inch UHD 4K interactive display with anti-glare tempered glass.
- Supports up to 50-point infrared multi-touch for collaborative interaction.
- Android 14 system with 8 GB RAM and 128 GB storage.
- Built-in 48 MP camera and 8-array microphone for conferencing.
- Wi-Fi 6 connectivity with HDMI, USB and USB-C interfaces.
- Description
Description

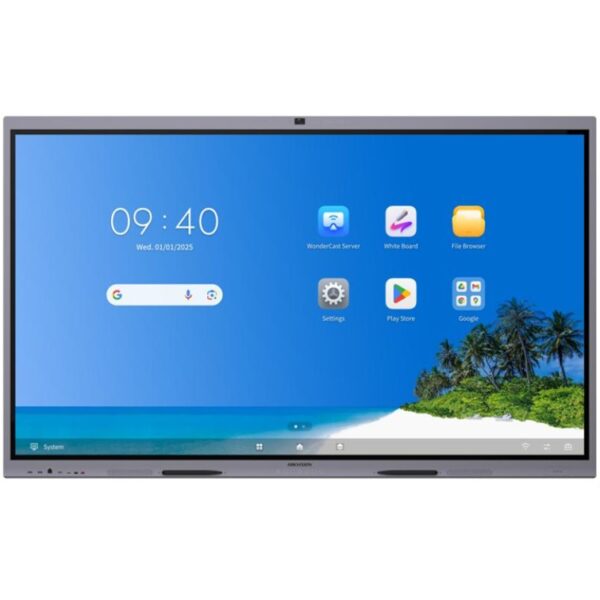

Hikvision DS-D5B75RB/FP 75″ 4K Interactive Display
The Hikvision DS-D5B75RB/FP is a 75-inch 4K interactive display designed for modern classrooms, training centres and collaborative meeting spaces. It integrates advanced touch technology, ultra-high-definition display, video processing and intelligent networking into a single all-in-one interactive display solution.
Featuring UHD 4K resolution of 3840 × 2160, the display delivers clear visuals, vibrant colours and wide viewing angles for presentations, lessons and collaboration. The anti-glare tempered glass surface minimizes reflections while ensuring smooth and responsive touch interaction.
The display supports dual operating systems with Android 14 built in and optional Windows support through an OPS module. This flexible architecture allows users to run conferencing platforms, productivity tools and collaboration software easily while maintaining system compatibility. EDLA certification enhances integration within enterprise and education environments.
Supporting up to 50-point infrared multi-touch, multiple users can interact simultaneously for collaborative teaching, brainstorming or presentations. The smooth writing experience allows natural annotation and whiteboard-style interaction.
The DS-D5B75RB/FP also features a built-in 48 MP camera and an omni-directional 8-array microphone system for conferencing. Intelligent noise reduction, echo cancellation and beamforming technology help ensure clear communication in classrooms and meeting rooms.
With Wi-Fi 6 connectivity, multiple HDMI and USB interfaces and USB-C ports supporting display input and charging, the display offers flexible connectivity for modern environments. Combined with tempered glass protection and intelligent temperature control, the DS-D5B75RB/FP is engineered for reliable long-term operation.
Specification
| • Product Model: | DS-D5B75RB/FP |
| • Screen Size: | 75 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.143 (H) × 0.429 (V) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 450 cd/m² (Max.); 400 cd/m² (Typ.) |
| • Color Depth: | 10 bit |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | VA |
| • Contrast Ratio: | 5000:1 (Static); 30,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 1650.24 (H) × 928.26 (V) |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) |
| • GPU: | Mali-G52 MC3 |
| • HDCP Version: | 2.3 & 2.2 & 1.4 |
| • Camera Pixel: | 48 MP for Photos; 8 MP for Video |
| • Camera Function: | Support intelligent switching between Android system, OPS, and PC |
| • Field Angle: | 93.4° (diagonal); 84.5° (horizontal); 54.1° (vertical) |
| • Distortion: | ≤ 2.5% |
| • Camera Resolution Ratio: | Up to 4K |
| • Microphone Layout: | Omni-directional 8-array layout |
| • Mic Function: | Echo reduction and smart noise-cancellation |
| • Voice Distance: | 12 m |
| • Sampling Rate: | 48 K |
| • Mic Depth: | 16 bit |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 |
| • NFC: | Support card reader 13.56 MHz (ISO 14443A / ISO 14443B) |
| • Light Sensor: | Yes |
| • Image Processing Technology: | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging, and shadow correction |
| • Audio Processing Technology: | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, and speech detection |
| • Video & Audio Input: | HDMI 2.0 × 3 (Front × 1; Rear × 2; Support HDCP2.3, 2.2 & 1.4; HDMI1 supports CEC & ARC); VGA × 1 (Rear); Audio × 1 (Rear) |
| • Video & Audio Output: | HDMI 2.0 × 1 (Rear); Audio × 1 (Rear); SPDIF × 1 (Rear) |
| • Control Interface: | TOUCH-USB 3.0 × 1 (Front); TOUCH-USB 2.0 × 2 (Rear); RS232 × 1 (Rear) |
| • Network Interface: | LAN (1000 Mbps) × 2 (Rear); Wi-Fi AP & Station, 2.4 G / 5 G; Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO |
| • Data Transmission Interface: | USB 3.0 × 3 (Front × 2; Rear × 1); USB 2.0 × 2 (Rear × 2); Type-C × 1 (Front: USB 3.0, 65 W charging, DP IN 1.4); Type-C × 1 (Rear: USB 2.0, 65 W charging, DP IN 1.4) |
| • Power Supply: | 100 to 240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 189 W |
| • Working Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| • Working Humidity: | 10%~90% RH |
| • VESA Mount: | 800 mm × 400 mm (4 × M8-25 mm) |
| • Product Dimensions (With Wall Attachment): | 1709.8 × 1034.5 × 110.4 mm |
| • Product Dimensions (Without Wall Attachment): | 1709.8 × 1034.5 × 83.2 mm |
| • Package Dimensions: | 1907 × 1160 × 223 mm |
| • Net Weight: | 45.7 ± 0.5 kg |
| • Gross Weight: | 63.1 ± 0.5 kg |
