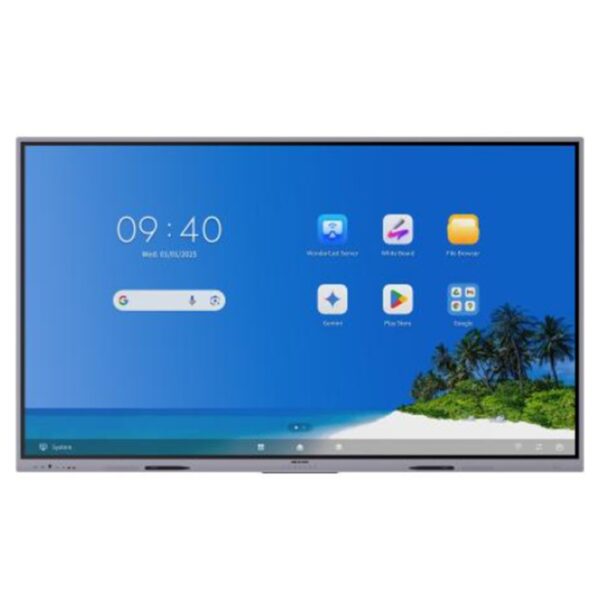

Hikvision DS-D5B86RB/EP 86-inch 4K Interactive Display
- 86-inch UHD 4K interactive display with anti-glare tempered glass.
- Supports up to 50-point infrared multi-touch for collaborative interaction.
- Android 14 system with 8 GB RAM and 128 GB storage.
- Dual OS support with optional Windows OPS module.
- Wi-Fi 6 connectivity with HDMI, USB and USB-C interfaces.
- Description
Description
Hikvision DS-D5B86RB/EP 86″ 4K Interactive Display
The Hikvision DS-D5B86RB/EP is an 86-inch 4K interactive display designed for classrooms, training centres and collaborative meeting spaces. It combines advanced touch technology, ultra-high-definition display, intelligent networking and audio capabilities into a single all-in-one interactive display solution for modern education and business environments.
Featuring UHD 4K resolution of 3840 × 2160, the display delivers clear visuals, vivid colours and wide viewing angles for presentations, lessons and collaboration. The anti-glare tempered glass surface reduces reflections while ensuring smooth and responsive touch interaction for writing, annotation and discussion.
The display supports dual operating systems with Android 14 built in and optional Windows support through an OPS module. This flexible architecture allows users to run conferencing platforms, office tools and collaboration software efficiently while maintaining simple deployment. EDLA certification further enhances compatibility in education and enterprise environments.
Supporting up to 50-point infrared multi-touch, the display enables multiple users to interact simultaneously for teaching, brainstorming and presentations. The smooth writing experience provides natural whiteboard-style interaction that is ideal for collaborative work.
With Wi-Fi 6 connectivity, multiple HDMI and USB interfaces, and USB-C ports supporting display input and charging, the DS-D5B86RB/EP provides flexible connectivity for modern classrooms and meeting rooms. Combined with intelligent temperature control, tempered glass protection and built-in speakers, it is designed for reliable long-term use.
Specification
| • Product Model: | DS-D5B86RB/EP |
| • Screen Size: | 86 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.164 (H) × 0.493 (V) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 450 cd/m² (Max.); 400 cd/m² (Typ.) |
| • Color Depth: | 10 bit (8 bit + FRC) |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | IPS |
| • Contrast Ratio: | 1200:1 (Static); 15,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 1895.04 (H) × 1065.96 (V) mm |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) |
| • GPU: | Mali-G52 MC3 |
| • HDCP Version: | 2.3 & 2.0 & 1.4 |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4 |
| • NFC: | Support card reader 13.56 MHz (ISO 14443A / ISO 14443B) |
| • Light Sensor: | Yes |
| • Video & Audio Input: | HDMI 2.1 TMDS × 3 (Front × 1; Rear × 2; Support HDCP2.3, 2.2 & 1.4; HDMI1 supports CEC & ARC); VGA × 1 (Rear); Audio × 1 (Rear) |
| • Video & Audio Output: | HDMI 2.1 TMDS × 1 (Rear); Audio × 1 (Rear); SPDIF × 1 (Rear) |
| • Control Interface: | TOUCH-USB 3.0 × 1 (Front); TOUCH-USB 2.0 × 2 (Rear); RS232 × 1 (Rear) |
| • Network Interface: | LAN (1000 Mbps) × 2 (Rear); Wi-Fi AP & Station, 2.4 G / 5 G; Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO |
| • Data Transmission Interface: | USB 3.0 × 3 (Front × 2; Rear × 1); USB 2.0 × 2 (Rear × 2); Type-C × 1 (Front: USB 3.0, 65 W charging, DP IN 1.4); Type-C × 1 (Rear: USB 2.0, 65 W charging, DP IN 1.4) |
| • Power Supply: | 100 to 240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 210 W |
| • Working Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| • Working Humidity: | 10%~90% RH |
| • VESA Mount: | 800 mm × 600 mm (4 × M8-25 mm) |
| • Product Dimensions (With Wall Attachment): | 1957.0 × 1156.5 × 123.0 mm |
| • Product Dimensions (Without Wall Attachment): | 1957.0 × 1156.5 × 77.7 mm |
| • Package Dimensions: | 2157.0 × 1345.0 × 223.0 mm |
| • Net Weight: | 52.7 ± 0.5 kg |
| • Gross Weight: | 72.8 ± 0.5 kg |
