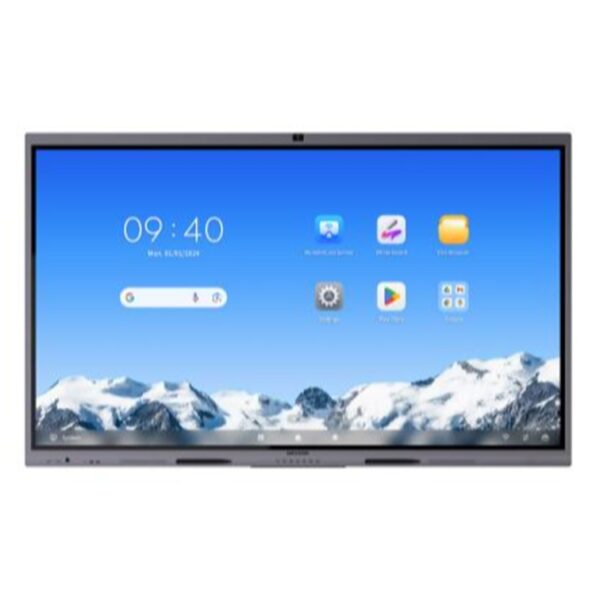

Hikvision DS-D5C65RB/B2L 65-inch 4K Interactive Display
- 65-inch 4K UHD interactive display with 480 nits brightness for clear classroom and meeting visuals.
- Up to 50-point infrared multi-touch for smooth writing, annotation and collaboration.
- Android 14 (EDLA certified) with 8 GB RAM and 128 GB storage for fast performance.
- Built-in camera and 8-array microphone with smart noise cancellation for conferencing-ready use.
- Dual USB-C (DP input + up to 100W total power delivery) plus Wi-Fi 6, Bluetooth 5.4 and dual LAN.
- Description
Description
Hikvision DS-D5C65RB/B2L 65" 4K Interactive Display
The Hikvision DS-D5C65RB/B2L is a 65-inch 4K interactive flat panel display designed for classrooms, online teaching, training centres and modern meeting rooms. It combines touch control, UHD display, video processing, networking, interactive collaboration and built-in audio into one all-in-one smart display for more effective lessons and meetings.
Delivering UHD 4K resolution (3840 × 2160) with up to 480 nits brightness, the display provides sharp visuals for content sharing, presentations and video playback. The anti-glare and anti-blocking design helps maintain clear viewing and smooth interaction, while the tempered glass and intelligent temperature control support safe, reliable long-term use.
For flexible workflows, the display supports dual systems (Android and optional Windows via OPS), making it easy to run productivity tools and video conferencing platforms when needed. It also supports fast wireless screen sharing from multiple devices, smooth stylus writing, and front multi-button control for convenient classroom and meeting use.
Built on Android 14 with EDLA certification, the DS-D5C65RB/B2L includes modern connectivity such as dual full-function USB Type-C ports (DisplayPort input + up to 100W total power delivery), plus built-in sensors for light, humidity and temperature monitoring.
Specification
| • Product Model: | DS-D5C65RB/B2L |
| • Screen Size: | 65 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.124 (H) × 0.372 (V) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 480 cd/m² (Typ.) |
| • Color Depth: | 10 bit (8 bit + FRC) |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | VA |
| • Contrast Ratio: | 5000:1 (Static); 30,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 1428.48 (H) × 803.52 (V) |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A76 ×4 (2.4 GHz) + Quad-core Cortex-A55 ×4 (1.8 GHz) |
| • GPU: | Mali-G610 MC4 |
| • HDCP Version: | 2.3 / 2.0 / 1.4 |
| • Camera Pixel: | 48 MP (Photos) / 8 MP (Video) |
| • Camera Function: | Intelligent switching between Android system, OPS, and PC |
| • Camera Field Angle: | 93.4° (Diagonal); 84.5° (Horizontal); 54.1° (Vertical) |
| • Camera Distortion: | ≤ 2.5% |
| • Camera Resolution: | Up to 4K |
| • Microphone Layout: | Omni-directional 8-array |
| • Microphone Function: | Echo reduction and smart noise-cancellation |
| • Voice Distance: | 12 m |
| • Sampling Rate: | 32 K |
| • Mic Depth: | 16 bit |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Bluetooth 5.4 (BLE) |
| • NFC: | 13.56 MHz card reader (ISO 14443A / ISO 14443B / ISO 15693) |
| • Light Sensor: | Yes |
| • Image Processing Technology: | 3D digital noise reduction; face detection; auto white balance; auto purple edge removal; auto defogging; shadow correction |
| • Audio Processing Technology: | Dereverberation; adaptive noise reduction; adaptive non-stationary noise reduction; adaptive echo cancellation; AGC; automatic electrical level control; sound source localization; speech dynamic detection; digital beam forming; speech detection |
| • Humidity & Temperature Sensor: | Humidity accuracy ±1.5 %RH; Temperature accuracy ±0.1 °C |
| • Video & Audio Input: | HDMI 2.1 TMDS ×3 (Front ×1; Rear ×2; HDCP2.3/2.0/1.4; HDMI CEC); VGA ×1 (Rear); Audio ×1 (Rear) |
| • Video & Audio Output: | HDMI 2.1 TMDS ×1 (Rear); Audio ×1 (Rear); SPDIF ×1 (Rear) |
| • Control Interface: | TOUCH-USB 3.0 ×1 (Front); TOUCH-USB 2.0 ×2 (Rear); RS232 ×1 (Rear) |
| • Network Interface: | LAN ×2 (1000 Mbps); Wi-Fi AP & Station (2.4G / 5G); Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2×2 MIMO |
| • Data Transmission Interface: | USB 3.0 ×4 (Front ×2; Rear ×2); USB 2.0 ×1 (Rear); Type-C ×2 (Front ×1; Rear ×1; USB 2.0, DP IN 1.2, 100 W charging) |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 184 W |
| • Working Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| • Working Humidity: | 10%–90% RH |
| • VESA Mount: | 600 mm × 400 mm (4 × M8-25 mm) |
| • Package Dimensions (W × H × D): | 1662 × 1062 × 223 mm |
| • Net Weight: | 34.7 ± 0.5 kg |
| • Gross Weight: | 47.1 ± 0.5 kg |
| • Product Dimensions (With Wall Attachment): | 1491.9 × 910.6 × 115.3 mm |
| • Product Dimensions (Without Wall Attachment): | 1491.9 × 910.6 × 82.3 mm |
