Hikvision DS-D5C75RB/B 75-inch 4K Interactive Display
- 75-inch UHD 4K interactive display with anti-glare tempered glass.
- Supports up to 50-point infrared multi-touch for collaborative interaction.
- Android 14 system with 8 GB RAM and 128 GB storage.
- Built-in 48 MP camera and 8-array microphone for conferencing.
- Wi-Fi 6 connectivity with HDMI, USB and USB-C interfaces.
- Description
Description

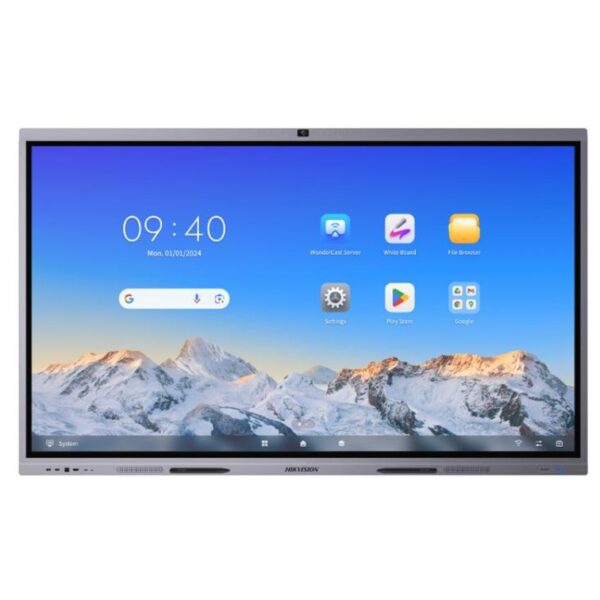

Hikvision DS-D5C75RB/B 75″ 4K Interactive Display
The Hikvision DS-D5C75RB/B is a 75-inch 4K interactive flat panel designed for modern classrooms, training facilities and collaborative meeting environments. It integrates advanced touch technology, high-definition display, video processing, networking and intelligent audio capabilities into a single all-in-one display platform.
With a UHD 4K resolution of 3840 × 2160, the display provides crisp visuals, vibrant colours and wide viewing angles for presentations, teaching and collaboration. The anti-glare and anti-blocking tempered glass surface improves visibility and ensures smooth and responsive touch interaction.
The DS-D5C75RB/B supports dual operating systems with Android 14 built in and optional Windows support via an OPS module. This flexible architecture allows users to run conferencing platforms, office applications and collaboration tools efficiently while reducing hardware complexity.
Up to 50-point infrared multi-touch allows multiple users to write, annotate and collaborate simultaneously. Stylus writing support provides a smooth and natural writing experience suitable for teaching, brainstorming and presentations.
For hybrid collaboration and conferencing, the display includes a built-in 48 MP camera for photos and 8 MP video, along with an omni-directional 8-array microphone system that features intelligent noise reduction and echo cancellation. Wi-Fi 6 connectivity, multiple HDMI and USB interfaces, and USB-C support for display input and charging provide flexible connectivity for modern workspaces.
Specification
| • Product Model: | DS-D5C75RB/B |
| • Screen Size: | 75 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.14325 (H) × 0.42975 (V) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 400 cd/m² (Typ.) |
| • Color Depth: | 10 bit |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | VA |
| • Contrast Ratio: | 5000:1 (Static); 30,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 1650.24 × 928.26 mm |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A76 ×4 (2.4 GHz) + Quad-core Cortex-A55 ×4 (1.8 GHz) |
| • GPU: | Mali-G610 MC4 |
| • HDCP Version: | 2.3 |
| • Camera Pixel: | 48 MP (Photo) / 8 MP (Video) |
| • Camera Function: | Support switching between Android system, OPS and PC |
| • Field Angle: | 93.4° (Diagonal); 84.5° (Horizontal); 54.1° (Vertical) |
| • Distortion: | ≤ 2.5% |
| • Camera Resolution: | Up to 4K |
| • Microphone Layout: | Omni-directional 8-array microphone |
| • Microphone Function: | Echo reduction and smart noise cancellation |
| • Voice Distance: | 12 m |
| • Sampling Rate: | 32 K |
| • Mic Depth: | 16 bit |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Bluetooth 5.1 (BLE) |
| • NFC: | Support screen mirroring by Android phones |
| • Light Sensor: | Yes |
| • Image Processing Technology: | 3D digital noise reduction; face detection; automatic white balance; automatic purple edge removal; automatic defogging; shadow correction |
| • Audio Processing Technology: | Dereverberation; adaptive noise reduction; adaptive echo cancellation; automatic gain control; digital beam forming; speech detection |
| • Video & Audio Input: | HDMI In (HDMI 2.0) ×3; VGA In ×1; DP In (DP 1.2) ×1; Audio In ×1 |
| • Video & Audio Output: | HDMI Out (HDMI 2.0) ×1; Audio Out ×1; SPDIF Out ×1 |
| • Control Interface: | TOUCH-USB 3.0 ×3; RS232 ×1 |
| • Network Interface: | LAN ×2 (1000 Mbps); Wi-Fi AP & Station (2.4G / 5G); Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO |
| • Data Transmission Interface: | USB 3.0 ×4; USB 2.0 ×1; Type-C ×2 (DP 1.2 + charging 15W side / 65W front) |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 150 W |
| • Working Temperature: | 0 °C to 40 °C |
| • Working Humidity: | 10%–90% RH |
| • VESA Mount: | 800 × 400 mm |
| • Product Dimensions: | 1713.23 × 1034.54 × 82.5 mm |
| • Package Dimensions: | 1897 × 1150 × 213 mm |
| • Net Weight: | 51.23 kg |
| • Gross Weight: | 67.62 kg |
