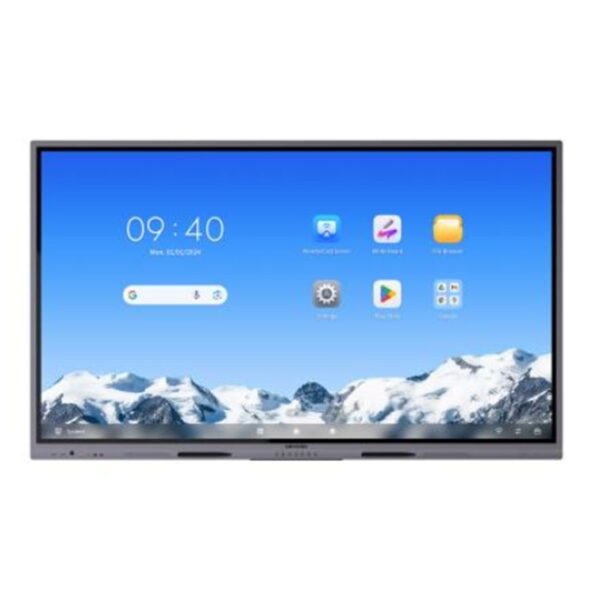

Hikvision DS-D5C86RB/A2L 86-inch 4K Interactive Display
- 86-inch 4K UHD interactive display designed for large classrooms and meeting rooms.
- Up to 50-point multi-touch with ultra-fast response for collaborative writing.
- Powered by Android 14 with 8 GB RAM and 128 GB storage.
- Supports Android and optional Windows OPS system.
- Wi-Fi 6, Bluetooth 5.4 and USB-C connectivity for modern collaboration.
- Description
Description
Hikvision DS-D5C86RB/A2L 86″ 4K Interactive Flat Panel Display
The Hikvision DS-D5C86RB/A2L 86-inch Interactive Flat Panel Display is a powerful smart collaboration solution designed for classrooms, lecture halls, training centres and large meeting rooms. It integrates advanced technologies including high-resolution display, responsive touch control, video processing, network communication and interactive collaboration tools in one intelligent platform.
With a UHD 4K resolution of 3840 × 2160 and brightness of up to 480 nits, the display delivers exceptionally clear visuals, vibrant colours and wide viewing angles for presentations, teaching and multimedia content. The anti-glare tempered glass surface improves viewing comfort while maintaining highly accurate touch interaction.
Advanced Multi-Touch Collaboration
The interactive display supports up to 50-point multi-touch control, enabling multiple users to write, annotate and interact simultaneously. Infrared touch technology ensures ultra-fast response and high precision, delivering a smooth and natural writing experience similar to traditional whiteboards.
Powerful Android 14 Smart Platform
The DS-D5C86RB/A2L runs on Android 14 with EDLA certification, powered by a high-performance processor featuring quad-core Cortex-A76 and quad-core Cortex-A55 architecture. With 8 GB RAM and 128 GB storage, the display provides smooth system performance for interactive teaching tools, applications and multimedia playback.
Dual System Flexibility
The interactive display supports both Android and Windows environments. Users can operate directly with the built-in Android system, while an optional OPS module allows Windows integration for running conferencing platforms, productivity tools and specialized applications.
Comprehensive Connectivity
The display offers extensive connectivity including HDMI inputs, USB ports and full-function USB Type-C ports supporting DisplayPort input and up to 100 W charging. Integrated Wi-Fi 6 and Bluetooth 5.4 enable seamless wireless communication, device pairing and screen sharing.
Smart Sensors and Durable Design
Built-in sensors monitor ambient light, humidity and temperature to help maintain optimal classroom or meeting room environments. The all-in-one design features anti-glare tempered glass, intelligent temperature control and a durable structure for long-term reliability and safety.
Designed for Education and Collaboration
The Hikvision Interactive Flat Panel is ideal for large classrooms, conference rooms, training facilities and collaborative workspaces. Its large 86-inch display, powerful system performance and intuitive touch interaction make it a powerful platform for digital learning, presentations and teamwork.
Specification
| • Product Model: | DS-D5C86RB/A2L |
| • Screen Size: | 86 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.164 (H) × 0.493 (V) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 480 cd/m² (Typ.) |
| • Color Depth: | 10 bit (8 bit + FRC) |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | VA |
| • Contrast Ratio: | 5000:1 (Static); 30,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare & Anti-Fingerprint Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 1895.04 (H) × 1065.96 (V) |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A76 ×4 (2.4 GHz) + Quad-core Cortex-A55 ×4 (1.8 GHz) |
| • GPU: | Mali-G610 MC4 |
| • HDCP Version: | 2.3 / 2.0 / 1.4 |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Bluetooth 5.4 (BLE) |
| • NFC: | 13.56 MHz card reader (ISO 14443A / ISO 14443B / ISO 15693) |
| • Light Sensor: | Yes |
| • Humidity & Temperature Sensor: | Humidity accuracy ±1.5 %RH; Temperature accuracy ±0.1 °C |
| • Video & Audio Input: | HDMI 2.1 TMDS ×3 (Front ×1; Rear ×2); VGA ×1; Audio ×1 |
| • Video & Audio Output: | HDMI 2.1 TMDS ×1; Audio ×1; SPDIF ×1 |
| • Control Interface: | TOUCH-USB 3.0 ×1 (Front); TOUCH-USB 2.0 ×2 (Rear); RS232 ×1 |
| • Network Interface: | LAN ×2 (1000 Mbps); Wi-Fi 6 (2.4G / 5G) |
| • Data Transmission: | USB 3.0 ×4; USB 2.0 ×1; USB Type-C ×2 (DP IN 1.2 + 100 W charging) |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 274 W |
| • Working Temperature: | 0 °C to 40 °C |
| • Working Humidity: | 10%–90% RH |
| • VESA Mount: | 800 × 600 mm |
| • Package Dimensions: | 2157 × 1345 × 223 mm |
| • Net Weight: | 58.5 ± 0.5 kg |
| • Gross Weight: | 78.5 ± 0.5 kg |
| • Product Dimensions (With Wall Attachment): | 1960.4 × 1158.2 × 114.5 mm |
| • Product Dimensions (Without Wall Attachment): | 1960.4 × 1158.2 × 82.5 mm |
