Hikvision DS-D5C86RB/B2L 86-inch 4K Interactive Display
- 86-inch 4K UHD interactive display with 480 nits brightness.
- Supports up to 50-point multi-touch infrared touch technology.
- Android 14 (EDLA certified) with 8 GB RAM and 128 GB storage.
- Built-in 48 MP camera and 8-array microphone for conferencing.
- Dual USB-C with DisplayPort input and up to 100W power delivery.
- Description
Description

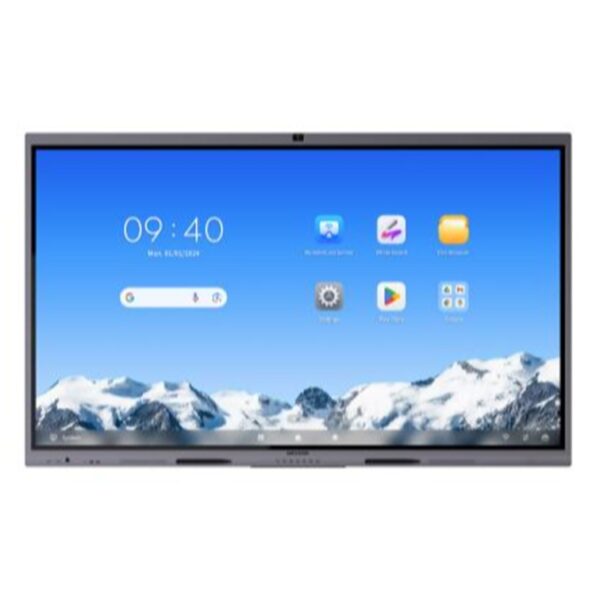

Hikvision DS-D5C86RB/B2L 86″ 4K Interactive Display
The Hikvision DS-D5C86RB/B2L is a powerful 86-inch 4K interactive flat panel designed for modern classrooms, training centres and large meeting rooms. It integrates advanced technologies including touch control, ultra-high-definition display, video processing, network communication, interactive collaboration and audio processing into a single intelligent teaching and presentation platform.
Featuring UHD 4K resolution of 3840 × 2160 and brightness up to 480 nits, the display delivers sharp visuals, vivid colours and excellent clarity for presentations, lessons and collaborative work. The anti-glare and anti-blocking glass surface improves viewing comfort while ensuring smooth and accurate touch interaction.
The DS-D5C86RB/B2L supports dual operating systems with Android 14 built-in and optional Windows support via an OPS module. This flexible architecture allows users to run productivity tools, conferencing platforms and collaborative applications efficiently.
The display supports up to 50-point infrared multi-touch, allowing multiple users to write, annotate and collaborate simultaneously. Stylus support provides precise and natural writing for teaching, brainstorming and presentations.
Designed for conferencing environments, the display includes a high-performance 48 MP camera for photos and 8 MP video, along with an omni-directional 8-array microphone system with intelligent noise reduction. Additional features include Wi-Fi 6 connectivity, Bluetooth 5.4, dual USB-C ports with DisplayPort input and up to 100W charging, and integrated sensors for monitoring light, humidity and temperature.
Specification
| • Product Model: | DS-D5C86RB/B2L |
| • Screen Size: | 86 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.164 (H) × 0.493 (V) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 480 cd/m² (Typ.) |
| • Color Depth: | 10 bit (8 bit + FRC) |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | VA |
| • Contrast Ratio: | 5000:1 (Static); 30,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare & Anti-Fingerprint Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 1895.04 × 1065.96 mm |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A76 ×4 (2.4 GHz) + Quad-core Cortex-A55 ×4 (1.8 GHz) |
| • GPU: | Mali-G610 MC4 |
| • HDCP Version: | 2.3 / 2.0 / 1.4 |
| • Camera Pixel: | 48 MP (Photo) / 8 MP (Video) |
| • Camera Function: | Switching between Android system, OPS and PC |
| • Field Angle: | 93.4° (Diagonal); 84.5° (Horizontal); 54.1° (Vertical) |
| • Distortion: | ≤ 2.5% |
| • Camera Resolution: | Up to 4K |
| • Microphone Layout: | Omni-directional 8-array microphone |
| • Microphone Function: | Echo reduction and smart noise cancellation |
| • Voice Distance: | 12 m |
| • Sampling Rate: | 32 K |
| • Mic Depth: | 16 bit |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Bluetooth 5.4 (BLE) |
| • NFC: | 13.56 MHz card reader (ISO 14443A / ISO 14443B / ISO 15693) |
| • Light Sensor: | Yes |
| • Image Processing Technology: | 3D digital noise reduction; face detection; auto white balance; auto purple edge removal; auto defogging; shadow correction |
| • Audio Processing Technology: | Dereverberation; adaptive noise reduction; adaptive echo cancellation; AGC; digital beam forming; speech detection |
| • Humidity & Temperature Sensor: | Humidity accuracy ±1.5 %RH; Temperature accuracy ±0.1 °C |
| • Video & Audio Input: | HDMI 2.1 TMDS ×3 (Front ×1; Rear ×2); VGA ×1; Audio ×1 |
| • Video & Audio Output: | HDMI 2.1 TMDS ×1; Audio ×1; SPDIF ×1 |
| • Control Interface: | TOUCH-USB 3.0 ×1; TOUCH-USB 2.0 ×2; RS232 ×1 |
| • Network Interface: | LAN ×2 (1000 Mbps); Wi-Fi AP & Station (2.4G / 5G); Wi-Fi 6 |
| • Data Transmission Interface: | USB 3.0 ×4; USB 2.0 ×1; Type-C ×2 (DP IN 1.2 + 100W charging) |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 274 W |
| • Working Temperature: | 0 °C to 40 °C |
| • Working Humidity: | 10%–90% RH |
| • VESA Mount: | 800 × 600 mm |
| • Package Dimensions: | 2157 × 1345 × 223 mm |
| • Net Weight: | 58.9 ± 0.5 kg |
| • Gross Weight: | 78.9 ± 0.5 kg |
| • Product Dimensions (With Wall Attachment): | 1960.4 × 1173.7 × 114.5 mm |
| • Product Dimensions (Without Wall Attachment): | 1960.4 × 1173.7 × 82.5 mm |
