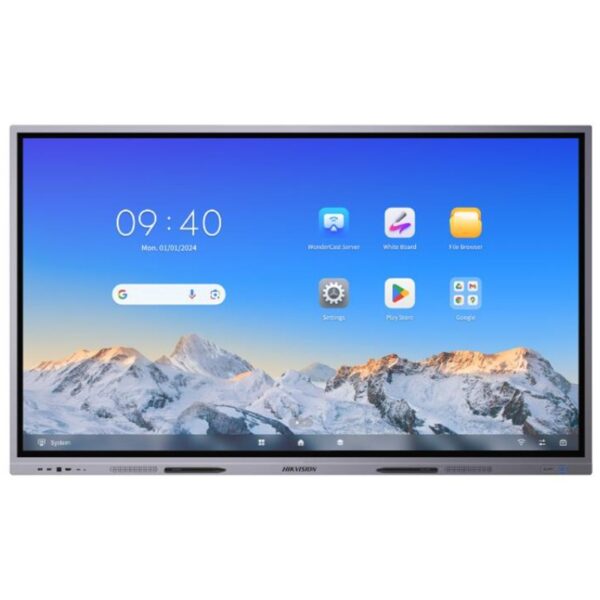

Hikvision DS-D5C98RB/A 98-inch 4K Interactive Display
- 98-inch UHD 4K interactive display with anti-glare tempered glass.
- Supports up to 50-point infrared multi-touch for collaborative interaction.
- Android 14 system with 8 GB RAM and 128 GB storage.
- Dual OS support with optional Windows OPS module.
- Wi-Fi 6 connectivity with HDMI, USB and USB-C interfaces.
- Description
Description
Hikvision DS-D5C98RB/A 98″ 4K Interactive Display
The Hikvision DS-D5C98RB/A is a large-format 98-inch 4K interactive display designed for lecture halls, training centres, corporate boardrooms and large collaborative environments. It integrates advanced touch control technology, ultra-high-definition display, video processing and intelligent networking into a single all-in-one interactive display platform.
Featuring a UHD 4K resolution of 3840 × 2160 and a high brightness level of 600 cd/m², the display delivers sharp images, vibrant colours and excellent visibility even in bright environments. The anti-glare tempered glass surface reduces reflections while ensuring smooth and responsive touch interaction.
The display supports dual operating systems with Android 14 built in and optional Windows support through an OPS module. This allows users to run conferencing platforms, productivity software and collaboration tools easily while maintaining flexible system integration. EDLA certification enhances compatibility with enterprise and education environments.
With support for up to 50-point infrared multi-touch, multiple users can write, annotate and collaborate simultaneously. The smooth writing experience makes it ideal for teaching, presentations, brainstorming and interactive discussions.
The DS-D5C98RB/A also includes Wi-Fi 6 connectivity, multiple HDMI and USB interfaces, and USB-C ports supporting display input and charging. Built with tempered glass, intelligent temperature control and blue light protection, the display is engineered for reliability and comfortable long-term use in professional environments.
Specification
| • Product Model: | DS-D5C98RB/A |
| • Screen Size: | 98 inch |
| • Backlight: | DLED |
| • Pixel Pitch: | 0.5622 (W) × 0.5622 (H) mm |
| • Resolution: | 3840 × 2160 @60 Hz |
| • Brightness: | 600 cd/m² (Typ.) |
| • Color Depth: | 10 bit |
| • Display Color: | 1.07 G |
| • Response Time: | 5 ms |
| • Panel Type: | VA |
| • Contrast Ratio: | 5000:1 (Static); 30,000:1 (Dynamic) |
| • Color Gamut: | 72% NTSC (CIE1931) (Typ.) |
| • Refresh Rate: | 60 Hz |
| • Viewing Angle: | 178° (H) / 178° (V) |
| • Aspect Ratio: | 16:9 |
| • Surface Hardness: | 9H (Pencil); 7 (Mohs) |
| • Surface Glass: | Anti-Glare Glass |
| • Surface Haze: | 25% Haze |
| • Glass Bonding Method: | Zero Lamination |
| • Display Area: | 2158.848 × 1214.352 mm |
| • Working Duration: | 7 × 16 H |
| • Transmittance: | 88% ± 3 |
| • Lifespan: | 50,000 hours |
| • Touch Type: | Infrared Touch Screen |
| • Touch Points: | Up to 50-point multi-touch |
| • Touch Response Time: | ≤ 2 ms |
| • Minimum Touch Object: | ≥ 1.5 mm (≥ 90% touching area) |
| • Touch Precision: | ± 0.5 mm (≥ 90% touching area) |
| • Touch Resolution: | 32768 × 32768 |
| • Operating System: | Android 14.0 |
| • Memory: | 8 GB |
| • Built-in Storage: | 128 GB |
| • Processor: | Quad-core Cortex-A76 ×4 (2.4 GHz) + Quad-core Cortex-A55 ×4 (1.8 GHz) |
| • GPU: | Mali-G610 MC4 |
| • HDCP Version: | 2.3 |
| • Loudspeaker: | Built-in 2 × 20 W + 25 W loudspeaker |
| • Bluetooth: | Bluetooth 5.1 (BLE) |
| • NFC: | Support screen mirroring by Android phones |
| • Light Sensor: | Yes |
| • Video & Audio Input: | HDMI In (HDMI 2.0) ×3; VGA In ×1; DP In (DP 1.2) ×1; Audio In ×1 |
| • Video & Audio Output: | HDMI Out (HDMI 2.0) ×1; Audio Out ×1; SPDIF Out ×1 |
| • Control Interface: | TOUCH-USB 3.0 ×3; RS232 ×1 |
| • Network Interface: | LAN (1000 Mbps) ×2; Wi-Fi AP & Station (2.4G / 5G); Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 2×2 MIMO |
| • Data Transmission Interface: | USB 3.0 ×4; USB 2.0 ×1; Type-C ×2 (supports DP 1.2 and charging: 15W side / 65W front) |
| • Power Supply: | 100–240 VAC, 50/60 Hz |
| • Standby Consumption: | ≤ 0.5 W |
| • Average Consumption: | < 325 W |
| • Working Temperature: | 0 °C to 40 °C |
| • Working Humidity: | 10%–90% RH |
| • VESA Mount: | 1000 × 400 mm |
| • Product Dimensions: | 2219.8 × 1336.4 × 105.7 mm |
| • Package Dimensions: | 2520 × 1700 × 330 mm |
| • Net Weight: | 94 kg |
| • Gross Weight: | 137 kg |
