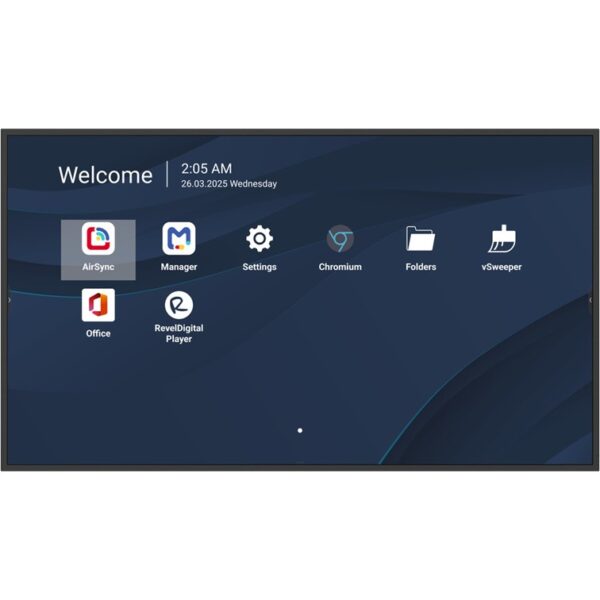

ViewSonic CDE8614-2C 86” 4K Commercial Display — Built for 24/7 Digital Signage & Corporate Communication

The ViewSonic CDE8614-2C is a massive 86-inch 4K commercial display engineered for high-impact visuals and demanding, around-the-clock professional environments. Ideal for malls, transportation hubs, large corporate spaces, hotel lobbies, and campus-wide signage, it delivers powerful performance, exceptional clarity, and full ProAV integration.

Powered by a Quad-Core ARM Cortex-A73 processor, 4GB RAM, and Android 14 (upgradeable to Android 16), the CDE8614-2C ensures smooth media playback, responsive operation, and reliable performance for enterprise signage applications. With a warm boot time of under seven seconds, your content appears instantly — essential for time-sensitive digital signage and scheduled displays.

The impressive 86-inch 4K UHD panel provides immersive clarity with vibrant colors, wide viewing angles, 500-nit brightness, and anti-glare surface treatment. Whether mounted in portrait or landscape, the display is optimized for large-format commercial presentation, retail advertising, public information displays, and corporate communications.

---

Key Features

🔹 Ultra-Large 4K UHD Display

• Native 3840 × 2160 resolution

• Immersive 86-inch panel

• Anti-glare 3H coating

• Ideal for large venues and wide-viewing installations

🔹 Commercial-Grade 24/7 Operation

• 500-nit brightness

• Designed for continuous, non-stop use

• 50,000-hour backlight lifespan

🔹 Fast Warm Boot Under 7 Seconds

• Ensures content displays immediately

• Critical for scheduled signage and enterprise operations

🔹 Powerful Quad-Core SoC + Android 14

• Smooth performance for apps and signage

• 4GB RAM + 32GB storage

• Upgradeable to Android 16

• Works with AirSync + ViewSonic Manager

🔹 USB Auto-Playback with Signal Failover

• Automatically switches to USB or next source

• Prevents screen outages

• Essential for public environments and high-traffic venues

🔹 Flexible Installation Options

• Portrait or landscape installation

• Slim bezels for clean commercial aesthetics

• VESA 600 × 400 mm mounting

🔹 ProAV Integration & Remote Management

• Compatible with leading AV control systems

• ViewSonic Manager for enterprise deployment

• Remote monitoring, scheduling, and troubleshooting

🔹 One-Cable USB-C Connectivity

• Video, Ethernet, USB data + 15W charging

• Perfect for BYOD meeting workflows

🔹 Wireless Presentation Support

• Optional ViewShare WPD-900 Kit for cable-free casting

• No Wi-Fi or software needed

• (Sold separately)

🔹 Integrated Speakers & Audio Outputs

• Dual 10W speakers

• 3.5mm audio out + RS232 + SPDIF

---

Detailed Specifications

Display
Panel Size: 86″
Type/ Tech: TFT LCD Module. DLED backlight
Display Area (mm): 1895.04(H) × 1065.96(V) 86″ diagonal
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 8bit+FRC
Brightness: 500 nits (typ.)
Contrast Ratio: 1200:1 (typ.) / 2000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours
Surface Treatment: Hardness: 3H, Anti-glare coating, Haze 25%
Bezel: 15.9/15.9/15.9/15.9 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform
Processor: Quad-core ARM Cortex-A73
RAM: 4GB DDR4
Storage: 32GB

INPUT
HDMI: x3 (HDMI 2.1 4K@60Hz*3, HDMI 3 supports ARC)
RS-232: x 1
WiFi Slot: x 1

OUTPUT
Audio: 3.5mm x1
RS232: x 1

LAN
RJ45: x1 (10/100M for USB Type-C)

USB
Type A: USB2.0 x 2
Type C: x1 (DP 1.2, USB 2.0, 15W PD, Ethernet sharing, Smart USB)

SPEAKERS
10W x 2

COMPATIBILITY
HDMI: 3840X2160 @60Hz

Embedded OS
Android 14 AOSP

Bundled Software
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes

POWER
Voltage: 100-240 VAC +/- 10%
Consumption: 120.95W with Energy Star

ERGONOMICS
Wall Mount (VESA® ): 600×400 mm

OPERATING CONDITIONS
Temperature (º C): 0 to 40℃
Humidity: 20% ~ 80% RH non-condensing

Operating Hours
24/7

DIMENSIONS (W x H x D)
Physical (inch / mm): 1930.8 x 1101.7 x 68 mm

WEIGHT
Net (lb / kg): 42kg
Gross (lb / kg): 56.95kg

REGULATIONS
cTUVus, FCC/ICES003, Energy star 8, EPEAT Silver, EEI, EMC/CE Report, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE report, Annex I, Annex II, TPCH DoC, Packing waste, CA65 DoC

PACKAGE CONTENTS

1. 3M power cord

2. Remote control

3. AAA battery x 2

4. Quick Start Guide

5. RS232 adapter

6. Wall mount Screw x 4

7. HDMI cable 3 M(HDMI LA certified)

8. Compliance statement

---

Ideal For

• Large shopping malls

• Airports and transport terminals

• Hotel lobbies & hospitality networks

• Corporate communication signage

• Education and campus-wide displays

• Large meeting rooms and training venues

• Public information displays

• High-impact advertising walls

---

Why Choose the CDE8614-2C?

• Massive 86” 4K screen for maximum visibility

• Engineered for true 24/7 commercial operation

• Smooth and reliable Android-based performance

• Seamless ProAV integration

• Remote device management simplifies enterprise scaling

• Ideal for large venues, public spaces, and corporate environments
