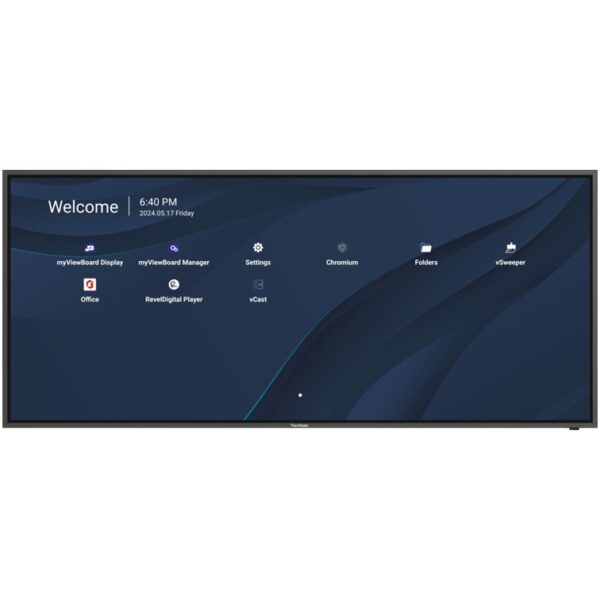

ViewSonic CDE92UW 92” 5K Ultrawide Commercial Display — Built for Hybrid Meetings, Front Row & High-Impact Digital Signage

The ViewSonic CDE92UW is a premium 92-inch ultrawide 5K commercial display engineered for immersive presentation, hybrid collaboration, and modern digital signage. Its expansive 21:9 aspect ratio delivers 33% more screen space than traditional 16:9 displays, making it ideal for Microsoft Teams Rooms Front Row mode, command centers, classrooms, and corporate meeting environments.

Powered by an advanced RockChip RK3588 octa-core processor running Android 13, 8GB DDR4 RAM, and 128GB storage, the CDE92UW enables smooth multimedia playback, powerful multitasking, and long-term stability. With USB-C supporting 100W power delivery, high-speed data, AV signal, and Ethernet, the display simplifies connectivity for plug-and-present workflows.

The ultrawide 5K canvas, anti-glare surface, ultra-slim bezel, and portrait-capable design make the CDE92UW a versatile display for signage, collaborative workspaces, and hybrid meeting rooms. Wireless casting, split-screen mode, OPS compatibility, and centralized ViewSonic Manager software make deployment and remote control effortless for enterprise IT teams.

---

🔹 Key Features

🔹 Immersive 92″ Ultrawide 21:9 Display

• 33% more workspace than 16:9

• Optimized for Front Row & hybrid collaboration

• Perfect for wide content layouts, dashboards & signage

🔹 5K Native Resolution

• 5120 × 2160 clarity

• Vivid, ultra-detailed visuals

• 178° wide viewing angles

🔹 Commercial-Grade 24/7 Operation

• High brightness (500 nits)

• Slim 1.8 cm bezel design

• Built for continuous, reliable performance

🔹 Android 13 with Octa-Core SoC

• RK3588 CPU (A76 × 4 + A55 × 4)

• 8GB RAM + 128GB storage

• Smooth and secure performance for apps & signage

🔹 USB-C with 100W Power Delivery

• One-cable solution: video + data + LAN + charging

• Ideal for meeting rooms and BYOD setups

🔹 Wireless Screen Sharing for Up to 9 Devices

• vCast, AirSync, myViewBoard Display

• Supports AirPlay, Miracast, Chromecast

🔹 Flexible Orientation for Digital Signage

• Portrait or landscape installation

• Perfect for retail, lobbies, and large-format advertising

🔹 Expandable with Slot-In PC (OPS)

• Windows or ChromeOS capable

• Ideal for compute-intensive enterprise workflows

🔹 Centralized Remote Management

• ViewSonic Manager included

• Scheduling, broadcasting, monitoring & diagnostics

🔹 EPEAT Silver + Energy Star Certified

• Designed for low energy consumption

• Environmentally responsible commercial solution

---

🧾 Detailed Specifications

Display
Panel Size: 92″
Type/ Tech: TFT LCD Module with DLED Backlight, VA
Display Area (mm): 2141.952 (H) × 903.636 (V) (91.52” diagonal)
Native Resolution: 5120 x 2160
Aspect Ratio: 21:9
Colors: 1.07G colors (8bits+ 2bits FRC)
Brightness: 500 nits (Typ.)
Contrast Ratio: OC spec 5000:1 (typ.)
Response Time: <6.5ms
Viewing Angles: H = 178, V = 178 (Typ.)
Backlight Life: 50,000 hrs (typ.)
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 18/18/18/18 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform
Processor: RockChip RK3588 Octa-Core CPU (A764 + A554)
RAM: DDR4 8GB
Storage: 128GB (eMMC)

INPUT
HDMI: Rear x 4 (HDMI 2.1 x1, HDMI 2.0 x3)
DisplayPort: 1
Audio: 1
RS-232: 1
OPS Slot: 1 (OPS Slot 80pin)
WiFi Slot: 1 (Module Slot)

OUTPUT
HDMI: 1
Audio: 1
SPDIF: 1

LAN
RJ45: 1

USB
Type A:

• REAR x1 (USB 2.0 support OTG)

• REAR x2 (USB 3.2 Gen 1)

• TOP x2 (USB 3.2 Gen 1) (support smart USB)
  Type C: REAR x1 (PD100W, DP1.2, USB2.0, 100M ethernet)

SPEAKERS
20W x 2 + 20W x 1 (Subwoofer)

COMPATIBILITY
HDMI:

• HDMI 1: 5120×2160 @60Hz (YUV444), 5120×2160 @30Hz (YUV420)

• HDMI 2/3/4: 3840×2160 @60Hz
  DisplayPort: 5120 x 2160

Embedded OS
Android 13

Bundled Software
Wireless Presentation: myViewBoard Display, vCast, AirSync*
myViewBoard Display will be replaced by AirSync in Q1 2025.
Device Management: ViewSonic® Manager
ViewSonic Launcher: Yes
Revel Digital: Yes

POWER
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 330W with Energy Star

ERGONOMICS
Wall Mount (VESA® ): 800 x 600

OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing
Operating Hours: 24/7

DIMENSIONS (W x H x D)
Physical (inch / mm): 85.91 x 37.16 x 3.35 in / 2182 x 943.8 x 85.2 mm
Packaging (inch / mm): 92.52 x 44.72 x 8.5 in / 2350 x 1136 x 216 mm

WEIGHT
Net (lb / kg): 93.7 lb / 42.5 kg
Gross (lb / kg): 131.18 lb / 59.5 kg

REGULATIONS
cTUVus, FCC/ICES003, CE/EMC, CB/LVD, EAC, UkrSEPRO, UKCA, UK-EEL, LBL, FF, ErP-EEL, WEEE, Green BOM, RoHS DoC, ErP-Eco, REACH, EPEAT
Energy Star: ES 8.0

PACKAGE CONTENTS

1. 3m power cord by ship area

2. Type C cable 1.8m (USB-IF certified)

3. Remote control with AAA battery

4. Quick Start Guide

5. RS232 adapter

6. Clamp x 5

7. Camera Plate x 2 (1 for VB-CAM-201, 1 for UMB202)

8. Screw x 8 (camera 2+2, wall mount 4)

9. HDMI cable 3m (HDMI LA certified)

10. AAA Battery x 2

11. Compliance statement
