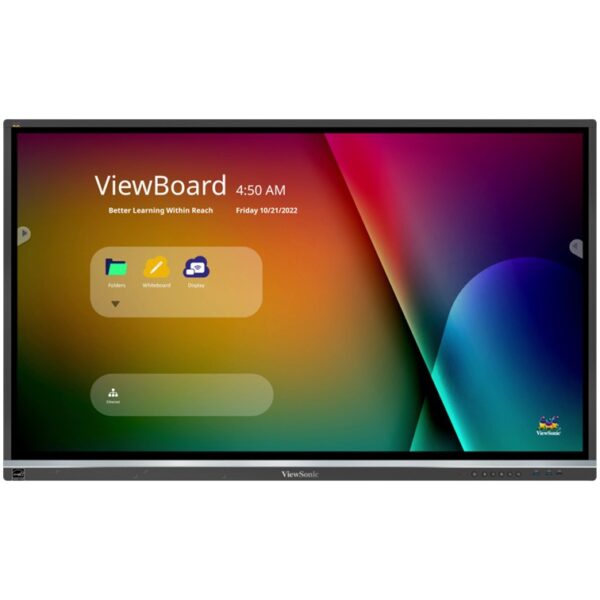

ViewSonic ViewBoard 5550-5F — 55” 4K Interactive Display for Modern Classrooms

The ViewSonic ViewBoard 5550-5F is a 55-inch 4K interactive display designed for educators who need a powerful, intuitive, and collaborative teaching tool. Featuring Ultra Fine Touch Technology with up to 40-point touch, teachers and students enjoy smooth, natural writing with dual pens of different sizes and colors.

With single-cable USB-C connectivity, cross-platform myViewBoard Whiteboard tools, wireless screen sharing, and Android 11 powered by an octa-core CPU (upgradeable to Android 13), this interactive panel enables seamless lessons, multimedia-rich presentations, and real-time collaboration.

The 5550-5F also includes advanced eye-care features, immersive front-facing speakers with a subwoofer, campus-wide remote device management through myViewBoard Manager, and sustainability certifications like EPEAT Silver—making it a durable and eco-friendly solution for today’s classrooms.

---

🔹 Key Features

Ultra Fine Touch Technology (40-Point Touch)

• Smooth pen-on-paper writing

• Dual pens with multiple colors & sizes

• Supports multi-user classroom collaboration

USB-C One-Cable Convenience

• Instant display, data, touch, and power (65W)

• Simplified teaching without cable mess

myViewBoard Whiteboard Suite

• Cross-platform annotation

• Pop quizzes, timers, spinners, immersive reader

• Split into up to six mini whiteboards

Wireless Screen Sharing

• ViewBoard Cast: split/extended/grouped casting

• Supports AirPlay & Chromecast

• myViewBoard Display: browser-based sharing

Remote Device Management

• myViewBoard Manager for updates, broadcast, scheduling

• Optional Manager Advanced for multimedia messaging

Android 11 with Octa-Core CPU

• Smooth performance and better app compatibility

• Upgradeable to Android 13

Immersive Audio System

• Dual 12W speakers

• 16W subwoofer for classroom engagement

Eye-Care & Classroom Safety

• Anti-glare coating

• Low blue light

• Flicker-free

Eco-Friendly & Certified

• EPEAT Silver

• Energy-efficient and sustainable design

---

🧾 SPECIFICATIONS

Display
Panel Size: 55″
Panel Type: TFT LCD Module with DLED Backlight. IPS
Display Area (mm): 1209.6(H) x 680.4 (V)
Aspect Ratio: 16:9
Resolution: UHD 3840×2160
Colors: 1.07B colors (8bit+FRC)
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 (typ.) 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours (Min)
Surface Treatment: Hardness: 7H, Anti-glare coating
Bezel: Slim
Orientation: Landscape

Platform
Processor: ARM Cortex-A734 + Cortex-A534
RAM: 8 GB
Storage: 64 GB

Touch
Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32767×32767
Touch Point: Windows: 40 points of touch, Android : 20 points of touch

INPUT
HDMI: 2.0 x 3 (3840×2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot

OUTPUT
HDMI: x1 (4K@60Hz)
Audio: x1 (Line out)
SPDIF: x1 (optical)

LAN
RJ45: x2

USB
Type A: 2.0 x 2
3.0 x 4
Type B: x2, for touch
Type C: x1 (DP 1.2, USB2.0, PD65W, Ethernet 100M)

SPEAKERS
12W x 2 + 16W x 1 subwoofer

Top Camera Plate
Yes

Embedded OS
Android 11 (Upgradable to Android 13)

Bundle Software
Basic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (with slot-in PC)
Wireless Presentation: vCast / myViewBoard Display App / AirSync*
myViewBoard Display replaced by AirSync in Q1 2025.

Special Features
SmartPort™ USB (all-in-one USB routing)
Simple LAN sharing
Light Sensor

Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 89W(typ.), 0.5W (off)

ERGONOMICS
Wall Mount (VESA® ): 400mm x 200 mm

OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing

DIMENSIONS (W x H x D)
Physical (inch / mm): 50.03 x 30.47 x 3.34 in / 1270.8 x 773.9 x 84.8 mm
Packaging (inch / mm): 55.16 x 33.82 x 8.66 in / 1401 x 859 x 220 mm

WEIGHT
Net: 58.2lb / 26.4kg
Gross: 78.26lb / 35.5kg

REGULATIONS
cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM, Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL, Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH, Packing waste, CA65, PAIA

PACKAGE CONTENTS

1. Power cord

2. Remote control with AAA battery

3. Touch USB cable

4. Touch pen x 2 (VB-PEN-009)

5. Quick Start Guide + Compliance statement

6. RS232 adapter

7. Clamp x 5

8. Camera Plate

9. Screw x 8

10. HDMI cable

Compatible Slot-in PC
VPC2-O series • VPC2-O-B series • VPC25-W33-O1-1B • VPC27-W53-O1-1B • VPC12-WPO-17 • VPC12-WPO-18
