Description

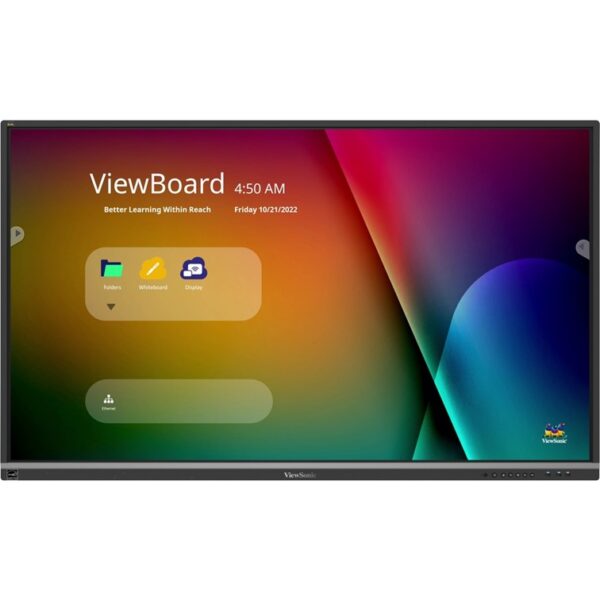

ViewSonic ViewBoard IFP6550-5F — 65” 4K Interactive Display for Modern Classrooms

The ViewSonic IFP6550-5F is a premium 65-inch 4K interactive display designed for modern, collaborative, and technology-enhanced classrooms. Featuring Ultra Fine Touch Technology with up to 40-point multi-touch, it delivers a natural pen-on-paper writing experience that enhances engagement and supports multi-student activities.

Powered by an Octa-Core processor and Android 13, the IFP6550-5F provides responsive performance, secure operation, and compatibility with a wide array of educational apps. Its integrated myViewBoard Whiteboard software unlocks powerful teaching tools—including digital quizzes, immersive readers, timers, and multi-mini-whiteboard zones for group work.

A single USB-C cable enables instant connectivity, allowing teachers to mirror, control, and charge their devices without hassle. With dual 20W speakers plus a 20W subwoofer, Flicker-Free and TÜV-certified Low Blue Light technology, and support for wireless casting via AirPlay, Chromecast, and myViewBoard Display/AirSync, this ViewBoard provides an all-in-one solution for classrooms, meeting rooms, and training environments.

---

Key Features

🔹 Ultra Fine Touch Technology

• Dual-pen support with ultra-smooth writing
• Up to 40-point multi-touch (Windows) and 20-point (Android)
• Accurate, low-latency, pen-on-paper experience

🔹 One-Cable USB-C Connectivity

• Display, touch, data, and 65W power delivery
• Simplifies classroom setup with clutter-free cabling

🔹 Powerful Android 13 Platform

• Octa-core CPU for fast responsiveness
• Enhanced security and improved app compatibility

🔹 Wireless Content Sharing

• Supports AirPlay, Chromecast, vCast, and myViewBoard Display
• Cast up to four devices simultaneously

🔹 myViewBoard Whiteboard Suite

• Built-in interactive teaching tools
• Works across Windows, Android, and Chrome OS

🔹 Immersive Audio

• Dual 20W speakers + 20W subwoofer
• Clear, room-filling sound for lessons and presentations

🔹 Eye-Care Technology

• TÜV-certified Low Blue Light
• Flicker-Free display
• Anti-glare coating

---

Detailed Specifications

Display
Panel Size: 65″
Panel Type: TFT LCD Module with DLED Backlight (IPS)
Display Area (mm): 1428.48(H) × 803.52(V)
Aspect Ratio: 16:9
Resolution: UHD 3840×2160
Colors: 1.07B colors (10bit)
Brightness: 500 nits
Contrast Ratio: 1200:1 (typ.) / 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178°, V = 178°
Backlight Life: 50,000 hours (Min)
Surface Treatment: 7H Hardness, Anti-glare coating
Bezel: Slim
Orientation: Landscape

Platform
Processor: ARM Cortex-A734 + Cortex-A534
RAM: 8GB
Storage: 64GB

Touch
Type / Tech: Ultra Fine Touch Technology (IR Recognition)
Touch Resolution: 32768 × 32768
Touch Points: Windows: 40-point / Android: 20-point

INPUT
HDMI: 2.0 × 3 (3840×2160 @60Hz, HDCP 2.2, HDMI1 with CEC/ARC)
RS232: ×1
OPS Slot: ×1
WiFi: ×1 module slot

OUTPUT
HDMI: ×1 (4K@60Hz)
Audio: ×1 (Earphone Out)
SPDIF: ×1 (Optical)

LAN
RJ45: ×2

USB
Type A: USB 2.0 × 2, USB 3.0 × 4
Type B: ×2 (for touch)
Type C: ×1 (DP 1.2, USB2.0, PD65W, Ethernet 100M)

Speakers
20W × 2 + 20W × 1 subwoofer

Top Camera Plate
Yes

Embedded OS
Android 13

Bundled Software
myViewBoard Whiteboard
myViewBoard for Windows (with Slot-in PC)
Wireless Presentation: vCast / myViewBoard Display / AirSync

Special Features
SmartPort™ USB
Simple LAN Sharing
Light Sensor

Power
Voltage: 100-240VAC ±10%
Consumption: 95W (typ.), 0.5W (off)

Ergonomics
Wall Mount (VESA®): 600 × 400 mm

Operating Conditions
Temperature: 0°C to 40°C
Humidity: 10%–90% (non-condensing)

Dimensions (W × H × D)
Physical: 1488.4 × 896.7 × 86.5 mm
Packaging: 1628 × 1005 × 208 mm

Weight
Net: 40.1 kg
Gross: 50.7 kg

Regulations
cTUVus, FCC/ICES003, Energy Star 8.0, CE, CB, EAC, BSMI, BIS, LBL, Flicker Free, RoHS, ErP-Eco, REACH, SCIP, WEEE, CA65, PAIA

Package Contents

1. Power cord

2. Remote control with AAA battery

3. Touch USB cable

4. Dual Touch Pens (VB-PEN-009)

5. Quick Start Guide + Compliance Statement

6. RS232 Adapter

7. Clamp ×5

8. Camera Plate

9. Screw ×8

10. HDMI cable

Compatible Slot-in PCs
• VPC2-O series
• VPC2-O-B series
• VPC25-W33-O1-1B
• VPC27-W53-O1-1B
• VPC12-WPO-17
• VPC12-WPO-18
