Yealink MB-12x Pro
$1,319.00
12x Optical Zoom Camera Module for Yealink MeetingBoard Pro
Key highlights:
✔ Dedicated optical zoom camera for second-generation MeetingBoard
✔ 12x optical zoom with 4K video output
✔ Slot-in installation with no additional wiring required
✔ Intelligent AI voice positioning and auto framing
✔ Fast, accurate tracking for medium and large meeting rooms
✔ Electric privacy shutter for enhanced privacy protection
- Description
Description

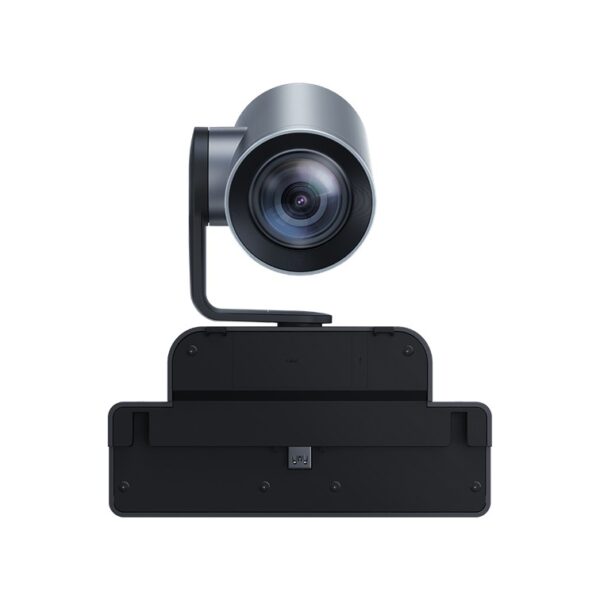

The Yealink MeetingBoard Pro MB-12X Pro Optical Zoom Camera is a dedicated optical zoom camera module designed specifically for the second-generation Yealink MeetingBoard, optimized for medium and large conference room environments. Featuring a customized slot interface, the MB-12X Pro installs directly on top of the MeetingBoard without the need for additional wiring or mounting brackets, delivering a clean, streamlined deployment experience.
Working together with the built-in wide-angle lens of the second-generation MeetingBoard, the MB-12X Pro forms an intelligent triple-camera 4K solution. Powered by Yealink’s fully self-developed AI voice positioning and image algorithms, the system analyzes participant distribution and movement in real time. The optical zoom module then performs fast and accurate tracking, enabling automatic framing, voice tracking, and other advanced AI-driven camera experiences.
With 12x optical zoom, precise pan and tilt control, and an automatic electric privacy shutter, the MB-12X Pro ensures optimal viewing angles at all times while maintaining privacy when not in use. Designed for seamless integration and professional performance, the MB-12X Pro delivers a high-definition, intelligent, and smooth video experience for modern MeetingBoard deployments.
| Video Output | • 4K/30FPS |
|---|---|
| Zoom | • 12x optical zoom |
| Lens |
• Lens angle: DFOV 90°, HFOV 80°, VFOV 49° • Focal Length: 3.4 – 40.4mm • Aperture: F1.8 – F3.62 |
| Camera Control |
• Pan Range: ±100° • Tilt Range: 0° / -90° |
| Image Processing |
• Automatic Exposure: Yes • Automatic White Balance: Yes • Signal-to-Noise Ratio: >63 dB |
| Low Light Performance |
• Minimum Illumination: 0.5 lux (Day) • Minimum Illumination: 0.1 lux (Night) |
| Privacy | • Electric Privacy Shutter: Auto |
| Installation |
• Installation Method: MeetingBoard Custom Slot • Physical Port: Yealink Custom Port |
| Dimensions |
• The highest distance from the top to the top of the built-in lens is 147 mm • Lens barrel length: 114 mm |
| Power Consumption |
• Average: 8.8 W • Peak: 13.3 W • Standby: 8.4 W |
| Package Contents |
• MB-12X Pro • Quick Start Guide • Screwdriver • Mounting Screws |
| Physical Features |
• Carton Meas: 245 mm x 287 mm x 125 mm • Weight: • N.W: 1 kg • G.W: 1.35 kg |
