Yealink MCoreKit-C5U-MS
$3,563.00
Yealink MCoreKit-C5U Basic Component of Microsoft Teams Rooms System
Key highlights:
✔ Core Microsoft Teams Rooms system component

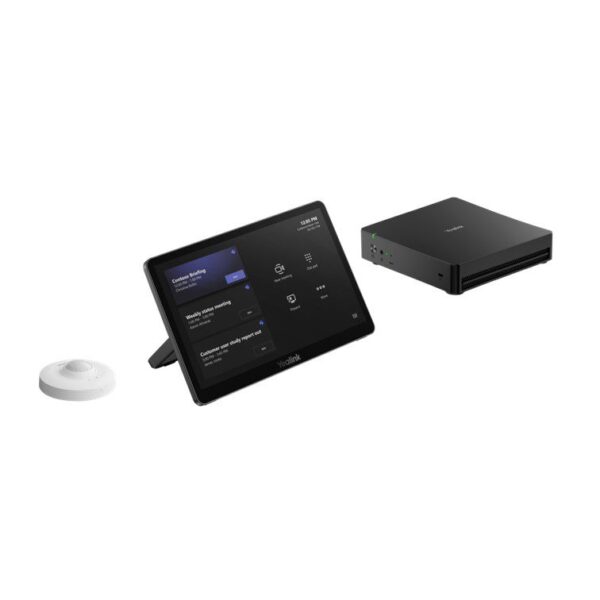

✔ Includes MCore 4, MTouch Plus, and RoomSensor
✔ Powered by Intel Ultra5 125H processor
✔ Native Microsoft Teams interface with one-touch control
✔ Supports wired and wireless content sharing
✔ Flexible audio and camera connectivity options
✔ Simple deployment and centralized remote device management
- Description
Description
The Yealink MCoreKit-C5U Microsoft Teams Rooms System is a foundational and flexible solution designed as the core component of a Microsoft Teams Rooms deployment. Built to deliver a seamless and intelligent conferencing experience, the MCoreKit-C5U integrates powerful computing performance, intuitive room control, and intelligent room sensing to support a wide range of meeting room configurations.
At the heart of the system is the MCore 4 Gen-4 Mini-PC, powered by the Intel Ultra5 125H processor, delivering outstanding data processing capabilities and powerful AI computing performance. Preloaded with Windows 11 IoT Enterprise and the Microsoft Teams Rooms App, the MCoreKit-C5U provides a native Microsoft Teams experience with smooth performance and enterprise-grade reliability.
The MTouch Plus 11.6-inch touch panel offers intuitive one-touch meeting control, enabling users to start meetings, manage calls, adjust cameras, and share content effortlessly. The RoomSensor enhances intelligent room management by detecting occupancy and displaying real-time environmental metrics such as temperature and humidity directly on the MTouch Plus interface.
Designed for flexibility, the MCoreKit-C5U supports a wide range of audio devices and camera solutions through wired or wireless connectivity. It also supports both wired and wireless content sharing, enabling participants to collaborate easily across different devices. With support for advanced camera connectivity through USB and AVHub integration, the system can scale from small huddle spaces to extra-large conference rooms with multi-camera AI tracking.
Deployment is simple and efficient, with a single CAT5e cable providing both power and data transmission between the MCore 4 and MTouch Plus. Combined with support for the Yealink Device Management Platform / Cloud Service, IT teams can remotely manage, monitor, configure, update, and diagnose devices, ensuring long-term reliability and simplified maintenance.
| Package Content | • MCore 4, Gen-4 Mini-PC • MTouch Plus, Gen-3 touch panel • RoomSensor |
|---|---|
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD • BIOS feature: • 3x HDMI video output – CEC – EDID • TPM2.0 • Kernel DMA • Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | • Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) • Function Features: • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
