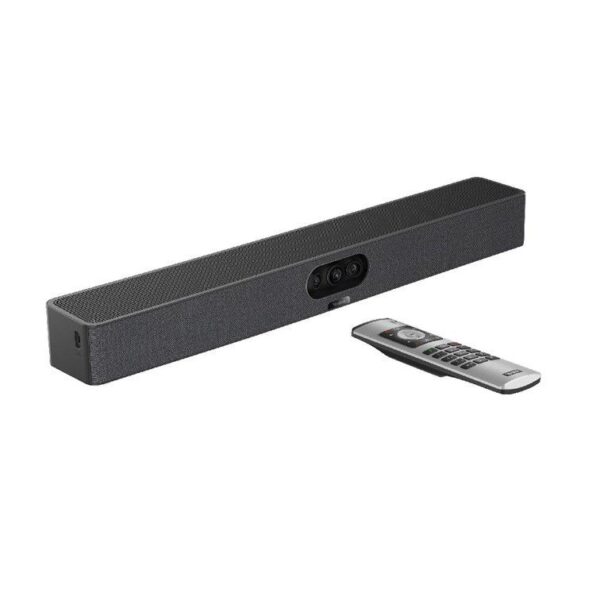

Yealink MeetingBar A25-010
$2,111.00
All-in-One Android Video Collaboration Bar for Focus Rooms
Key highlights:
✔ Advanced triple-camera system with 151° ultra-wide field of view
✔ 8 MEMS microphones with AI-enhanced noise suppression
✔ Built-in 10W speaker with full-duplex audio
✔ Android 13 with Microsoft MDEP support
✔ Native Microsoft Teams Rooms, Zoom Rooms & BYOD mode
✔ Simplified one-time login with direct CTP25 connectivity
- Description
Description
The Yealink MeetingBar A25 is an all-in-one Android video collaboration bar purpose-built for focus rooms and huddle rooms. Designed for compact yet professional meeting environments, it integrates a powerful triple-camera system, high-quality loudspeaker, and an 8-MEMS microphone array into a single streamlined device, enabling fast deployment with minimal setup.
Featuring an advanced triple-camera system with a 151° ultra-wide field of view, the MeetingBar A25 captures all participants clearly while delivering high-definition portrait close-ups for immersive remote collaboration. Intelligent video features such as IntelliFocus, Auto Framing, Speaker Tracking, Video Fence, Picture-in-Picture, and Smart Gallery (Zoom Rooms only) enhance meeting engagement and ensure participants are always in view.
For audio performance, the MeetingBar A25 provides a 5-meter voice pickup range, full-duplex audio processing, and AI-enhanced noise suppression, delivering clear voice capture and natural sound reproduction in focus and huddle rooms. The integrated 10W speaker ensures consistent audio output for both local and remote participants.
Powered by Android 13 and built on Microsoft Device Ecosystem Platform (MDEP), the MeetingBar A25 ensures long-term platform support, enhanced security, and simplified deployment. It supports native Microsoft Teams Rooms and Zoom Rooms, as well as BYOD mode for third-party conferencing applications.
With direct CTP25 connectivity, the MeetingBar A25 offers a simplified one-time login experience. Combined with comprehensive remote device management through Yealink and Microsoft platforms, it enables IT teams to manage, configure, and upgrade devices efficiently from anywhere.
Available Kit Option
For focus and huddle room deployments, the Yealink MeetingBar A25 is also available in the following bundled configuration:
-
Model: A25-010
-
Kit Contents: MeetingBar A25 + USB-C to USB-C cable + VCR11
This kit provides a ready-to-deploy solution for streamlined installation and connectivity.
| Operating System |
• Android 13 • Based on Microsoft Device Ecosystem Platform (MDEP) |
|---|---|
| Camera |
• Advanced triple-camera system • Number of cameras: 3 • Lens FOV: - Ultra-wide camera: DFOV 182°, HFOV 151°, VFOV 81° - Tele cameras (2x): DFOV 93.5°, HFOV 84.4°, VFOV 53.1° • Maximum pixels: 3 × 4K cameras (8MP sensors) • Maximum resolution: 3840 × 2160 • Maximum frame rate: 30fps • Video output: 4K (2160p) 30fps, 1080p60fps • Preset positions: 9 • Depth of field: 0.4 – 2.5 meters • Electric privacy lens cap • Electronic gimbal • Lens calibration • Intelligence features: - IntelliFocus (2 portraits) - Auto Framing - Speaker Tracking - Picture in Picture - Video Fence - Smart Gallery (Zoom Rooms only) |
| Speaker |
• Built-in 10W speaker • Rated power: 10W • Maximum power: 12W • Maximum SPL: 90dB SPL @ 1m • Frequency response: 100 – 16kHz • Sensitivity: 86dB SPL @ 1W @ 0.5m • Sampling rate: 48kHz • Sound emission angle: Forward-facing • THD: <5% @ 10W, 1kHz • Rated impedance: 4 ohms |
| Microphone |
• Built-in 8 MEMS microphone array • Pickup distance: 5 meters (3.5m high-quality) • Signal-to-noise ratio: 72dB @ 1kHz • Maximum SPL: 130dB (device), 100dB (per mic) • Dynamic range: 28 – 100dB SPL • Sensitivity: -38 dBV/Pa • Frequency response: 100 – 20kHz • Sampling rate: 48kHz / 32-bit • Audio processing: Full duplex, AEC, AGC • AI-enhanced noise suppression • Expansion microphones: Not supported |
| Content Sharing |
• Microsoft Teams: 1080p30fps (meeting), 4K30fps (local) • Zoom: up to 1080p30fps • BYOD (General Mode): up to 4K30fps • RingCentral: 1080p30fps • H.323/SIP: 1080p30fps |
| Video Codec |
• H.264 High Profile • H.264 SVC • H.264 |
| Audio Codec |
• ARES (24kHz) • G.722.1C (16kHz) • G.722.1 (8kHz) • G.722 (8kHz) • G.711 (PCMA/PCMU) • G.729 |
| Network & Connectivity |
• Wi-Fi 6 (2.4G & 5G, 802.11a/b/g/n/ac/ax) • 2×2 MIMO • Bluetooth 5.1 • TCP/IP (IPv4/IPv6), DHCP/static IP • HTTPS secure web access |
| Ports |
• USB 2.0 Type-A ×1 • USB 2.0 Type-C (side) ×1 • USB 3.0 Type-C ×1 (video input up to 4K30fps) • HDMI-out ×1 (up to 4K30fps, HDMI CEC) • Ethernet ×1 (10/100/1000Mbps) • Yealink VCH (RJ-45) ×1 • 3.5mm Line-out ×1 • Power port ×1 • Security lock slot ×1 • Reset slot ×1 |
| Dimensions & Weight |
• Dimensions (W×D×H): 570 × 80 × 65 mm • Net weight: 3.812 kg • Gross weight: 4.290 kg |
| Warranty | • Standard 2-year limited hardware warranty |
