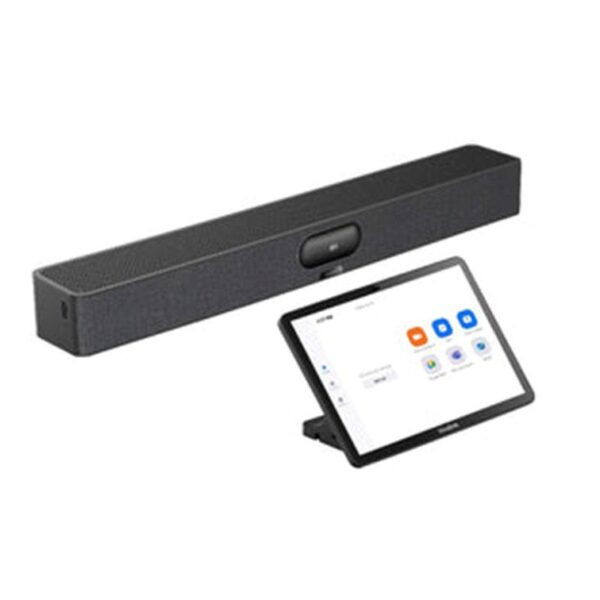

Yealink MeetingBar A25-031
$3,035.00
All-in-One Android Video Collaboration Bar for Focus Rooms
Key highlights:
✔ Advanced triple-camera system with 151° ultra-wide field of view
✔ 3 × 4K cameras (8MP sensors) with IntelliFocus & Speaker Tracking
✔ 8 MEMS microphones with AI-enhanced noise suppression
✔ Built-in 10W speaker with full-duplex audio processing
✔ Android 13 based on Microsoft MDEP
✔ Supports Teams Rooms, Zoom Rooms & BYOD mode
✔ Available A25-031 kit with CTP25
- Description
Description
The Yealink MeetingBar A25 is an all-in-one Android video collaboration bar purpose-built for focus rooms and huddle rooms. Designed for compact yet professional meeting environments, it integrates an advanced triple-camera system, high-quality loudspeaker, and an 8 MEMS microphone array into a single streamlined device, enabling fast deployment with minimal setup.
Featuring an advanced triple-camera system with a 151° ultra-wide field of view, the MeetingBar A25 captures all participants clearly while delivering high-definition portrait close-ups for immersive remote collaboration. Intelligent video features such as IntelliFocus, Auto Framing, Speaker Tracking, Video Fence, Picture-in-Picture, and Smart Gallery (Zoom Rooms only) enhance meeting engagement and ensure participants are always in view.
For audio performance, the MeetingBar A25 provides a 5-meter voice pickup range, full-duplex audio processing, and AI-enhanced noise suppression, delivering clear voice capture and natural sound reproduction in focus and huddle rooms. The integrated 10W speaker ensures consistent audio output for both local and remote participants.
Powered by Android 13 and built on Microsoft Device Ecosystem Platform (MDEP), the MeetingBar A25 supports future upgrades and delivers enhanced security and simplified deployment. It supports native Microsoft Teams Rooms and Zoom Rooms, as well as BYOD mode for third-party conferencing applications.
With direct CTP25 connectivity, the MeetingBar A25 enables a simplified one-time login experience, improving convenience for users. Combined with comprehensive remote device management through Yealink and Microsoft platforms, it allows IT teams to manage, configure, and upgrade devices efficiently from anywhere.
-
Model: A25-031
Kit Contents: MeetingBar A25 + CTP25
| Operating System | • Android 13 • Based on Microsoft Device Ecosystem Platform (MDEP) |
|---|---|
| Camera | • Number of cameras: 3 • Lens FOV – 1x Ultra-Wide Camera: DFOV 182°, HFOV 151°, VFOV 81° – 2x Tele Camera: DFOV 93.5°, HFOV 84.4°, VFOV 53.1° • Maximum pixels: 3 * 4k Cameras, all with 8MP image sensors • Number of preset positions: 9 • Depth of field: 0.4-2.5 meters • Maximum resolution: 3840 * 2160 • Maximum frame rate: 30fps • Video output resolution: 4k (2160p) 30fps, 1080p60fps • Privacy cover: Electric lens cap • Electronic gimbal • Lens calibration • Intelligence Features – IntelliFocus (2 portraits) – Auto Framing – Speaker Tracking – Picture in Picture – Video Fence – Smart Gallery (Zoom Rooms only) |
| Speaker | • Built-in a 10W speaker – Rated power: 10W – Maximum power: 12W • Maximum sound pressure level: 90dBSPL 10W@1m • Frequency response: 100-16kHz • Sensitivity: 86dB SPL @ 1W @ 0.5 meter • Sampling rate: 48kHz • Sound emission angle: Forward-facing • Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5% • Rated impedance: 4 ohms |
| Microphone | • Built-in 8 MEMS microphone array • 5-meter pickup distance, 3.5-meter high-quality pickup distance • Signal-to-noise ratio: 72dB@1kHz • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone) • Dynamic range: 28-100dBSPL • Sensitivity: -38dBV/pa • Frequency response: 100-20kHz • Sampling rate: 48k32bit • Bit depth: 32-bit • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control) • Noise suppression: AI-enhanced noise suppression • Expansion Mics: not supported |
| Resolution | • Lens Resolution: up to 4k30fps • Bandwidth requirement: 10Mbps or more |
| Content sharing | • Teams: 1080P30fps in meeting, 4k30fps in local sharing • Zoom: up to 1080p30fps • General Mode (BYOM): up to 4k30fps • RingCentral: 1080p30fps • H.323/SIP: 1080p30fps |
| Video Codec | • H.264 High profile, H.264 SVC, H.264 |
| Audio Codec | • ARES: 24kHz bandwidth • G.722.1C: 16kHz bandwidth • G.722.1: 8kHz bandwidth • G.722: 8kHz bandwidth • G.711 (PCMA/PCMU): 4kHz bandwidth • G.729: 8kHz bandwidth |
| Security | • Full Disk Encryption: AES-128, AES-256 • Data Encryption: Symmetric Keys, PKI • Device Identity: Protected by device attestation • Device Access: Authenticated using API • Key Protection: Arm TrustZone, RPMP |
| Communication standard protocol | • H.323/SIP in General Mode • Dual stream protocol: H.239 (H.323) / BFCP (SIP) • FECC: H.224/H.281 • H.323 protocol suit: H.245, H.225, H.235, H.241 • Gatekeeper account and SIP account |
| Network Protocol | • Wi-Fi 6 – 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax – 2×2 MIMO • Bluetooth 5.1 • TCP/IP (IPv4/IPv6), DHCP/static IP • HTTPS secure web access |
| Configuration Management | • Automatic configuration via web page/display/AutoP • Firmware upgrade, factory reset • Configuration import and export • System log export |
| Device Management | • Yealink Https Web Portal • Yealink Device Management Platform • Yealink Management Cloud Service • Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune) • Zoom Device Management |
| Installation | • Wall mount (provided with the product) • Use TV Mount (additional: purchase VB-TVMount-01, VB-TVMount-02 or TV-Clip Mount) • Place on the desktop (additional: purchase VB-TabletopMount-01) |
| Ports | • 1x USB2.0 Type-A port • 1x USB2.0 Type-C port（side） • 1xUSB3.0 Type-C port – video input supports formats up to maximum 4k30 fps, including 1080p60fps • 1x Ethernet port: 10/100/1000Mbps • 1x Yealink VCH port (RJ-45) • 1x HDMI-out port – video output supports formats up to maximum 4k30fps, including 1080p60fps – supports HDMI CEC • 1x 3.5mm Line-out port • 1x Power port • 1x Security lock slot • 1x Reset slot |
| Package | • MeetingBar A25 • Power adapter, 3.5m/11.48ft • 1x HDMI cable, 1.8m/5.91ft • 1x Network cable, 3m/9.84ft • 1x USB A to C cable, 3.0m/9.84ft • Wall Mount • Cable cover • MeetingBar A25 quick start guide • Optional Package – A25-010: A25+VCR11+USB C to C cable (1.8m/5.91ft) – A25-031: A25+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand, Cable management cover) |
| Environmental Factor | • Operating humidity: 10 – 95% • Operating temperature: 0 – 40°C • Storage temperature: -30℃~70℃ • BTU/hr: 38 in idle, 58 in meeting |
| Dimensions and weight (W × D × H) | • MeetingBar A25: 570x80x65 mm • N.W/CTN: 3.812kg • G.W/CTN: 4.290kg |
| Warranty | • Standard: 2-year limited hardware warranty included |
