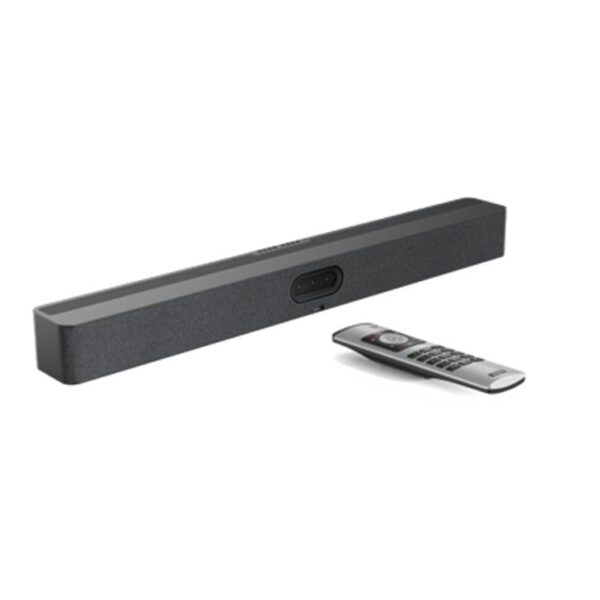

Yealink MeetingBar A50-010 Teams/Zoom (Up to 20 pax)
$3,959.00
All-in-One Android Video Collaboration Bar for Medium Meeting Rooms
Key highlights:
✔ A50-010 – Teams / Zoom Rooms
✔ Designed for up to 20 pax
✔ Triple-eye 3 × 50MP camera system with AI framing
✔ 16 MEMS microphones with 10-meter pickup range
✔ Built-in 4 × 5W speakers with full-duplex audio
✔ Android 13 based on Microsoft MDEP
✔ Includes VCR11 for content sharing
- Description
Description
The Yealink MeetingBar A50 (A50-010) is an all-in-one video collaboration bar designed for medium meeting rooms with up to 20 participants. Built for premium conferencing environments, it delivers advanced AI-powered video intelligence and professional-grade audio performance to ensure clear, natural, and engaging meetings on Microsoft Teams Rooms and Zoom Rooms.
The MeetingBar A50 features a triple-eye camera system with three 50MP cameras, consisting of one wide-angle camera and two telephoto cameras. This configuration delivers ultra-HD visuals with precise framing across different focal lengths. Intelligent AI features such as IntelliFocus, Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture, Smart Gallery (Zoom only), and Video Fence automatically detect speakers and participants, ensuring they are clearly framed and displayed during meetings. An electric physical privacy shutter protects user privacy when the camera is not in use.
For audio performance, the MeetingBar A50 provides a 10-meter voice pickup range powered by a 16 MEMS microphone array and four built-in speakers. With intelligent full-duplex audio processing and AI-enhanced noise suppression, it delivers clear voice pickup and balanced sound for medium-sized rooms. Support for up to three optional expansion microphones allows the system to scale when needed.
Powered by Android 13 and based on Microsoft Device Ecosystem Platform (MDEP), the MeetingBar A50 ensures long-term software support, enhanced security, and simplified enterprise deployment. It supports native Microsoft Teams Rooms and Zoom Rooms, as well as wired BYOD (General Mode) for third-party conferencing applications.
The A50-010 kit includes VCR11, enabling content sharing and a streamlined meeting experience without requiring a touch panel. Combined with comprehensive remote device management via Yealink, Microsoft, Zoom, and RingCentral platforms, IT teams can manage, configure, and upgrade devices efficiently from anywhere.
| Operating System | • Android 13 • Based on Microsoft Device Ecosystem Platform (MDEP) |
|---|---|
| Camera | • Number of cameras: 3 • Number of preset positions: 9 • Electronic gimbal • Lens FOV – 1x Wide Camera: DFOV 110, HFOV 98°, VFOV 81° – 2x Tele Camera: DFOV 51°, HFOV 41.6°, VFOV 31.8° • Maximum pixels: 3x 50MP pixel • Depth of field: 0.7-8 meters • 8 x digital zoom • Maximum resolution: 3840*2160 • Video output resolution: 4k (2160p) 30fps, 1080p60fps • Effective focal length: 8.29 mm (Tele camera), 3.5mm (Wide camera) • Aperture: F/2.0-F/2.4 • Supports wide dynamic range • Supports auto exposure • White balance: ATW/auto/manual • Shutter speed: 10ms-33ms • Minimum illumination: 0.5 lux (daytime), 0.1 lux (nighttime) • Privacy cover: Electric lens cap • Lens calibration • Intelligence Features – IntelliFocus (4 portraits) – Auto Framing – Speaker Tracking – People Counting – Picture in Picture – Smart Gallery (Zoom only) |
| Speaker | • Built-in 4 x 5W speakers – Rated Power: 4 x 5W – Maximum Power: 4 x 10W • Maximum sound pressure level: 97 dBSPL @ 10 W @ 1 m • Frequency response: 80-20kHz • Sensitivity: 104±3dB 1W/0.1m • Sampling rate: 48khz • Sound emission angle: 0-180° • Total Harmonic Histortion (THD): <3% @1kHz (rated) • Rated impedance: 4ohms |
| Microphone | • Built-in 16 MEMS microphone array, 10-meter pickup distance • Signal-to-noise ratio: 72dB@1kHz • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone) • Dynamic range: 22-108dBSPL • Sensitivity: -38dBv/pa • Frequency response: 100-20kHz • Sampling rate: 48kHz • Bit depth: 32-bit • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control) • Noise suppression: AI-enhanced noise suppression • Expansion mics: Supports 3 expansion microphones |
| Resolution | • Lens resolution: Up to 4k30fps • Bandwidth requirement: 10Mbps or more |
| Content sharing | • Teams: 1080p30fps in meeting, 4k30fps in local sharing • Zoom: Up to 1080p30fps • General mode (BYOM): Up to 4k30fps • RingCentral: 1080p30fps • H.323/SIP:1080p30fps |
| Video Codec | H.264 High profile, H.264 SVC, H.264 |
| Audio Codec | • ARES: 24kHz bandwidth • G.722.1C: 16kHz bandwidth • G.722.1: 8kHz bandwidth • G.722: 8kHz bandwidth • G.711 (PCMA/PCMU): 4kHz bandwidth • G.729: 8kHz bandwidth |
| Security | • Full disk encryption: AES-128 , AES-256 • Data encryption: symmetric keys, PKI • Device Identity: Protected by device attestation • Device Access: Authenticated using API • Key Protection: Arm TrustZone, RPMP |
| Communication standard protocol | • H.323/SIP in General Mode (BYOM) • Dual stream protocol: H.239 (H.323) / BFCP (SIP) • FECC: H.224/H.281 • H.323 protocol suit: H.245, H.225, H.235, H.241 • Gatekeeper account and SIP account |
| Network Protocol | • Wi-Fi 6 – 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax – 2×2 MIMO • Bluetooth 5.0 • TCP/IP (IPv4/IPv6), DHCP/static IP • HTTPS secure web access |
| Configuration Management | • Automatic configuration via web page/display/autoP • Firmware upgrade, factory reset • Configuration import and export • System log export |
| Device Management | • Yealink Https Web Portal • Yealink Device Management Platform • Yealink Management Cloud Service • Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune) • Zoom Device Management • RingCentral Admin Center |
| Installation | • Wall Mount (Provided with the product: VB-WallMount-02) • TV Mount (Addition: Purchase VB-TVMount-01, in roadmap) • Table Mount (Addition: Purchase VB-TabletopMount-02) |
| Ports | • 1x USB3.0 Type-A port • 1x USB3.0 Type-B port – Video output supports formats up to maximum 4k30fps, including 1080p60fps • 1x USB2.0 Type-C port (for dongle pairing) • 1x Ethernet port: 10/100/1000Mbps • 2x Yealink VCH port (RJ-45) • 1x 3.5mm Line-in & Line-out port • 1x Power port • 1x Security lock slot • 1x Reset slot • 2x HDMI-out – Video output supports formats up to maximum 4k30fps, including 1080p60fps – Supports HDMI CEC |
| Package | • MeetingBar A50 • Power adapter, 3.5m/11.48ft • HDMI 2.0 cable x2,1.8m/5.91ft • Network cable x1, 3m/9.84ft • USB3.0 A-B cable x1, 2.5m/8.20ft • Wall mount (VB-WallMount-02) • Table mount (TabletopMount-02) • Cable Cover • MeetingBar A50 Quick Start Guide – A50-010: A50+VCR11 |
| Environmental Factor | • Operating humidity: 10 – 95% • Operating temperature: 0 – 40°C • Storage temperature: -30℃~70℃ • BTU/hr: 38 in idle, 58 in meeting |
| Dimensions and weight (W × D × H) | • MeetingBar A50: 910 × 102 × 88mm • N.W/CTN: 8.5kg • G.W/CTN: 9.5kg |
| Warranty | • Standard: 2-year limited hardware warranty included • Extended: Additional extended warranties available at the time of hardware purchase. Contact your reseller. |
