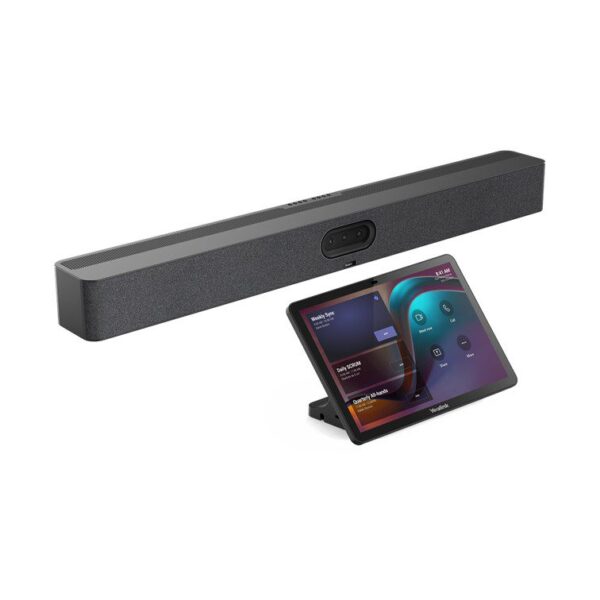

Yealink Meetingbar A50-031 Teams/Zoom (Up to 20 pax)
$4,883.00
All-in-One Android Video Collaboration Bar with CTP25 for Medium to Large Meeting Rooms
Key highlights:
✔ A50-031 – Teams / Zoom Rooms
✔ Designed for medium to large meeting rooms
✔ Triple-eye 3 × 50MP camera system with AI framing
✔ 16 MEMS microphones with 10-meter pickup range
✔ Built-in 4 × 5W speakers with full-duplex audio
✔ Android 13 based on Microsoft MDEP
✔ Includes CTP25 touch panel for one-touch login & control
- Description
Description
The Yealink MeetingBar A50 (A50-031) is an all-in-one video collaboration bar designed for premium medium to large meeting rooms. Built for enterprise-grade collaboration, it delivers advanced AI-powered video intelligence and high-performance audio to ensure clear, immersive, and efficient meetings.
The MeetingBar A50 features a triple-eye camera system with three 50MP cameras, including one wide-angle camera and two telephoto cameras. This setup delivers ultra-HD visuals across different focal lengths, providing low grain, natural colors, and high image clarity. Intelligent AI features such as IntelliFocus, Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture, Smart Gallery (Zoom only), and Video Fence automatically detect speakers and participants, ensuring optimal framing and visibility throughout meetings. An electric physical privacy shutter protects user privacy when the camera is not in use.
For audio performance, the MeetingBar A50 provides a 10-meter voice pickup range supported by a 16 MEMS microphone array and four built-in speakers. Intelligent full-duplex audio processing and AI-enhanced noise suppression deliver clear voice pickup and balanced sound for medium to large rooms. Support for up to three optional expansion microphones allows audio coverage to scale for larger conference spaces.
Powered by Android 13 and based on Microsoft Device Ecosystem Platform (MDEP), the MeetingBar A50 ensures long-term software support, enhanced security, and simplified enterprise deployment. It supports native Microsoft Teams Rooms, Zoom Rooms, RingCentral, and wired BYOD (General Mode) for third-party conferencing applications. In Microsoft Teams Rooms on Windows (MTR-W), the solution is referred to as MVC S50.
The A50-031 package includes the CTP25 touch panel, enabling a simplified one-time login experience and intuitive meeting control. Combined with comprehensive remote device management through Yealink, Microsoft, Zoom, and RingCentral platforms, IT teams can efficiently manage, configure, and upgrade devices from anywhere.
| Operating System | • Android 13 • Based on Microsoft Device Ecosystem Platform (MDEP) |
|---|---|
| Camera | • Number of cameras: 3 • Number of preset positions: 9 • Electronic gimbal • Lens FOV – 1x Wide Camera: DFOV 110, HFOV 98°, VFOV 81° – 2x Tele Camera: DFOV 51°, HFOV 41.6°, VFOV 31.8° • Maximum pixels: 3x 50MP pixel • Depth of field: 0.7-8 meters • 8 x digital zoom • Maximum resolution: 3840*2160 • Video output resolution: 4k (2160p) 30fps, 1080p60fps • Effective focal length: 8.29 mm (Tele camera), 3.5mm (Wide camera) • Aperture: F/2.0-F/2.4 • Supports wide dynamic range • Supports auto exposure • White balance: ATW/auto/manual • Shutter speed: 10ms-33ms • Minimum illumination: 0.5 lux (daytime), 0.1 lux (nighttime) • Privacy cover: Electric lens cap • Lens calibration • Intelligence Features – IntelliFocus (4 portraits) – Auto Framing – Speaker Tracking – People Counting – Picture in Picture – Smart Gallery (Zoom only) |
| Speaker | • Built-in 4 x 5W speakers – Rated Power: 4 x 5W – Maximum Power: 4 x 10W • Maximum sound pressure level: 97 dBSPL @ 10 W @ 1 m • Frequency response: 80-20kHz • Sensitivity: 104±3dB 1W/0.1m • Sampling rate: 48khz • Sound emission angle: 0-180° • Total Harmonic Histortion (THD): <3% @1kHz (rated) • Rated impedance: 4ohms |
| Microphone | • Built-in 16 MEMS microphone array, 10-meter pickup distance • Signal-to-noise ratio: 72dB@1kHz • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone) • Dynamic range: 22-108dBSPL • Sensitivity: -38dBv/pa • Frequency response: 100-20kHz • Sampling rate: 48kHz • Bit depth: 32-bit • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control) • Noise suppression: AI-enhanced noise suppression • Expansion mics: Supports 3 expansion microphones |
| Resolution | • Lens resolution: Up to 4k30fps • Bandwidth requirement: 10Mbps or more |
| Content sharing | • Teams: 1080p30fps in meeting, 4k30fps in local sharing • Zoom: Up to 1080p30fps • General mode (BYOM): Up to 4k30fps • RingCentral: 1080p30fps • H.323/SIP:1080p30fps |
| Video Codec | H.264 High profile, H.264 SVC, H.264 |
| Audio Codec | • ARES: 24kHz bandwidth • G.722.1C: 16kHz bandwidth • G.722.1: 8kHz bandwidth • G.722: 8kHz bandwidth • G.711 (PCMA/PCMU): 4kHz bandwidth • G.729: 8kHz bandwidth |
| Security | • Full disk encryption: AES-128 , AES-256 • Data encryption: symmetric keys, PKI • Device Identity: Protected by device attestation • Device Access: Authenticated using API • Key Protection: Arm TrustZone, RPMP |
| Communication standard protocol | • H.323/SIP in General Mode (BYOM) • Dual stream protocol: H.239 (H.323) / BFCP (SIP) • FECC: H.224/H.281 • H.323 protocol suit: H.245, H.225, H.235, H.241 • Gatekeeper account and SIP account |
| Network Protocol | • Wi-Fi 6 – 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax – 2×2 MIMO • Bluetooth 5.0 • TCP/IP (IPv4/IPv6), DHCP/static IP • HTTPS secure web access |
| Configuration Management | • Automatic configuration via web page/display/autoP • Firmware upgrade, factory reset • Configuration import and export • System log export |
| Device Management | • Yealink Https Web Portal • Yealink Device Management Platform • Yealink Management Cloud Service • Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune) • Zoom Device Management • RingCentral Admin Center |
| Installation | • Wall Mount (Provided with the product: VB-WallMount-02) • TV Mount (Addition: Purchase VB-TVMount-01, in roadmap) • Table Mount (Addition: Purchase VB-TabletopMount-02) |
| Ports | • 1x USB3.0 Type-A port • 1x USB3.0 Type-B port – Video output supports formats up to maximum 4k30fps, including 1080p60fps • 1x USB2.0 Type-C port (for dongle pairing) • 1x Ethernet port: 10/100/1000Mbps • 2x Yealink VCH port (RJ-45) • 1x 3.5mm Line-in & Line-out port • 1x Power port • 1x Security lock slot • 1x Reset slot • 2x HDMI-out – Video output supports formats up to maximum 4k30fps, including 1080p60fps – Supports HDMI CEC |
| Package | • MeetingBar A50 • Power adapter, 3.5m/11.48ft • HDMI 2.0 cable x2,1.8m/5.91ft • Network cable x1, 3m/9.84ft • USB3.0 A-B cable x1, 2.5m/8.20ft • Wall mount (VB-WallMount-02) • Table mount (TabletopMount-02) • Cable Cover • MeetingBar A50 Quick Start Guide – A50-031: A50+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand , Cable management cover) |
| Environmental Factor | • Operating humidity: 10 – 95% • Operating temperature: 0 – 40°C • Storage temperature: -30℃~70℃ • BTU/hr: 38 in idle, 58 in meeting |
| Dimensions and weight (W × D × H) | • MeetingBar A50: 910 × 102 × 88mm • N.W/CTN: 8.5kg • G.W/CTN: 9.5kg |
| Warranty | • Standard: 2-year limited hardware warranty included |
