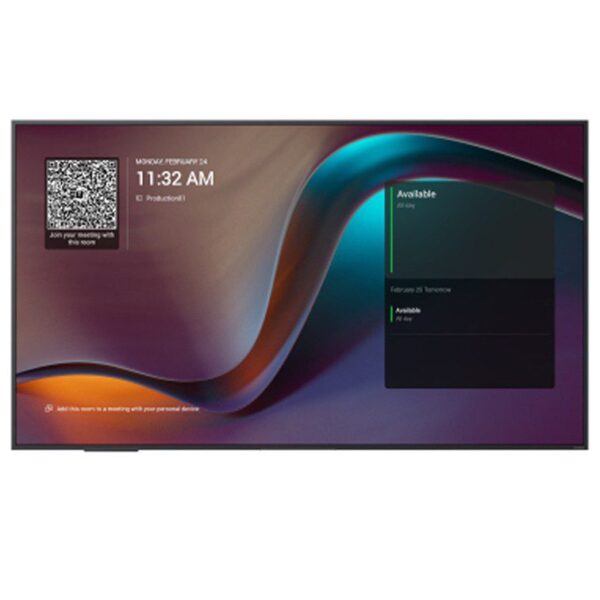

Yealink MeetingDisplay 86″

Description

Yealink MeetingDisplay is a unified display solution purpose-built for the Yealink Microsoft Teams Rooms (MTR) ecosystem. Designed to work seamlessly with Yealink MeetingBars, UVC cameras, and MCore systems, it delivers a fully integrated meeting experience with simplified installation, centralized management, and synchronized device operation.

Available in 86-inch size, MeetingDisplay supports small, medium, and large meeting rooms. Its customized rear mounting structure allows Yealink MTR devices to be installed directly onto the display without wall drilling or surface damage, enabling fast deployment with a clean, professional appearance.

---

Key Features and Benefits

Unified Installation

Customized mounting brackets are embedded into the back of the MeetingDisplay, allowing Yealink MeetingBar, UVC cameras, and MCore devices to be securely attached without wall drilling. Each device can be installed in under five minutes using the pre-designed mounting structure.

Unified Coordination

MeetingDisplay and Yealink MTR devices operate in sync, supporting automatic sleep and wake-up, power on/off synchronization, and intelligent digital signage switching. This improves user experience, reduces manual operations, and optimizes energy efficiency.

Unified Configuration

System settings such as brightness, audio, and display parameters can be configured directly through the MTR touch console, eliminating the need for separate control systems.

Unified Management

All connected devices—including MeetingDisplay, MeetingBar, UVC cameras, and MCore—can be centrally managed via YMCS or YDMP. Device status and operational data are synchronized to the management platform even when MeetingDisplay is not directly connected to the network.

---

Designed for Modern MTR Environments

Powered by Android 13 and equipped with Wi-Fi 6 and Bluetooth 5.1, Yealink MeetingDisplay delivers reliable performance, flexible connectivity, and long-term stability. With support for wired and wireless content sharing, high-brightness 4K visuals, and professional audio output, it forms the foundation of a fully unified Yealink meeting room solution.

Display	• Screen Size: – MeetingDisplay 86: 86 inch • Display Type: IPS • Surface Treatment: Anti-glare Coating • Refresh Rate: 60Hz • Grayscale Response Time: 8ms • Color Gamut: 72% NTSC • Colour Depth: 1.07G (10bit) • Viewing Angle: 178° (H) / 178° (V) • Contrast Ratio: 1200:1 • Resolution: 3840 × 2160 • Brightness: 500 cd/㎡ • Haze: 25% • Operation Time: 7 × 18h
Audio	• Speaker: 12W × 2
Content Sharing	• Wired screen sharing: – HDMI In • Wireless screen sharing: – AirPlay – Miracast – Wireless Presentation Pod (unavailable in the United States)
Hardware Interfaces	• Video: HDMI In 2.1 × 3 • Audio: 3.5mm Stereo Mini Jack (Output) • USB: USB-A 2.0 × 2, USB-B 2.0 × 1 • LAN: 2 × RJ45 10/100/1000M network ports • Control: RS232 × 1, IP Control (via LAN) • Others: Reset × 1
Wireless	• Wi-Fi 6: – 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax • Bluetooth: Bluetooth 5.1 • IR: Supported
Installation Methods	• Wall-mounted Installation • Floor-stand Installation
System Overview	• Operating System: Android 13 • Storage: – Memory: 4G – Flash: 32G
Power	• Power Adapter: 100–240V ~ 50/60Hz • Power Consumption: – MeetingDisplay 65: • Max: 210W • Typical: 183W • Off mode: < 0.5W – MeetingDisplay 75: • Max: 215W • Typical: 186W • Off mode: < 0.5W – MeetingDisplay 86: • Max: 323W • Typical: 268W • Off mode: < 0.5W
Environmental Factors	• Operating Temperature: 0–40°C • Storage Temperature: -20–60°C • Operating Humidity: 10–95%
Packaging	• 1 × MeetingDisplay • 1 × Cable Pack: – 1 × 3m AC power cable – 1 × 3m CAT5E network cable – 1 × Quick Start Guide – Cable ties – 1 × IR Remote Controller – 2 × AAA Batteries – 1 × MCore bracket (compatible with MCore 4; MCore sold separately)
Optional Accessories	Mounting Accessories for MeetingDisplay: • MD-WallMount 86″ • MB-FS-Lift motorized mobile stand Mounting Accessories for MVC Series & MeetingBar: • MD-AVBracket-S (MeetingBar A40, SmartVision 40, MSpeaker Pro) • MD-AVBracket-L (MeetingBar A50) • MD-PTZBracket (UVC86) Casting Accessories: • Wireless Presentation Pod (unavailable in the United States)
Warranty	• 3-year warranty
