Yealink MVC S50-C5U-000 Teams
$7,391.00
Yealink MVC S50-C5U Microsoft Teams Rooms System for Medium and Large Meeting Rooms
Key highlights:
✔ Complete Microsoft Teams Rooms solution for medium and large spaces

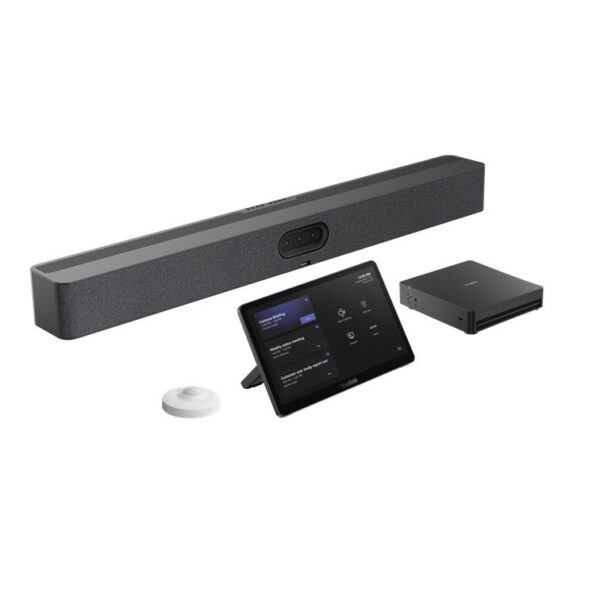

✔ Includes MCore 4, MTouch Plus, MeetingBar A50, and RoomSensor
✔ MeetingBar A50 all-in-one collaboration bar with triple-camera design
✔ Native Microsoft Teams interface with one-touch meeting control
✔ Wired and wireless content sharing support
✔ Simple deployment and centralized remote device management
- Description
Description
The Yealink MVC S50-C5U Microsoft Teams Rooms System is a versatile and intelligent collaboration solution designed for medium to large meeting rooms. Built for native Microsoft Teams Rooms environments, the MVC S50-C5U combines powerful computing performance, advanced AI-driven video and audio capabilities, and intuitive room control into a compact, enterprise-ready system.
At the core of the solution is the MCore 4 Gen-4 Mini-PC, powered by the Intel Ultra5 125H processor, delivering outstanding data processing performance and mighty AI computing power. Preloaded with Windows 11 IoT Enterprise and the Microsoft Teams Rooms App, the system provides a stable, secure, and familiar Teams experience for users.
The system features the MeetingBar A50 all-in-one video collaboration solution, designed with a triple-eye camera system and advanced AI technology. It delivers ultra-HD visuals, intelligent framing, and crystal-clear audio, ensuring immersive communication for both in-room and remote participants. With built-in AI features such as IntelliFocus and Video Fence, the MeetingBar A50 automatically detects speakers, frames participants, and presents them through multi-stream output for a more engaging meeting experience.
The MTouch Plus 11.6-inch touch panel offers intuitive meeting control, enabling one-touch join, camera adjustments, and content sharing. The included RoomSensor enhances intelligent room management by detecting occupancy and displaying real-time environmental data such as temperature and humidity directly on the MTouch Plus interface.
The MVC S50-C5U supports both wired and wireless content sharing, allowing participants to share content effortlessly. Designed for easy deployment, a single CAT5e cable is sufficient to connect the MCore 4 and MTouch Plus for both power and data transmission. With support for the Yealink Device Management Platform / Cloud Service, IT teams can remotely manage, monitor, configure, and update devices, ensuring long-term reliability and simplified maintenance.
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • MeetingBar A50, all-in-one video collaboration |
|---|---|
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD • BIOS feature: • 3x HDMI video output – CEC – EDID • TPM2.0 • Kernel DMA • Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | • Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) • Function Features: • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| MeetingBar A50 | • Camera: • Number of preset positions: 9 • Electronic gimbal • 1 x Wide HFOV 98°, VFOV 81° • 2 x Tele HFOV 41.6°, VFOV 31.8° • 8 x digital zoom • Speaker: • Built-in 4 x 5W speakers • Rated Power: 4 x 5W • Maximum Power: 4 x 10W • Maximum sound pressure level: 97 dBSPL @ 10 W @ 1 m • Frequency response: 80-20kHz • Sensitivity: 104±3dB 1W/0.1m • Sampling rate: 48khz • Sound emission angle: 0-180° • Total Harmonic Histortion (THD): <3% @1kHz (rated) • Rated impedance: 4ohms • Microphone: • Built-in 16 MEMS microphone array, 10-meter pickup distance • Signal-to-noise ratio: 72dB@1kHz • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone) • Dynamic range: 22-108dBSPL • Sensitivity: -38dBv/pa • Frequency response: 100-20kHz • Sampling rate: 48kHz • Bit depth: 32-bit • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control) • Noise suppression: AI-enhanced noise suppression • Expansion mics: Supports 3 expansion microphones • Interfaces: • 1 x USB3.0 Type-A port • 1 x USB3.0 Type-B port • 1 x USB2.0 Type-C port • 1 x Ethernet port • 2 x Yealink VCH port (RJ-45) • 1 x 3.5mm Line-in & Line-out port • 1 x Power port • 1 x Security lock slot • 1 x Reset slot • 2 x HDMI-out • Dimensions and environmental factors: • MeetingBar A50: 910 × 88 × 102 mm • Operating humidity: 10 – 95% • Operating temperature: 0 – 40°C |
