Yealink MVC S80-C5U-000 Teams
$7,391.00
Yealink MVC S80-C5U Microsoft Teams Rooms System for Large Meeting Rooms
Key highlights:
✔ Complete Microsoft Teams Rooms solution for large meeting spaces

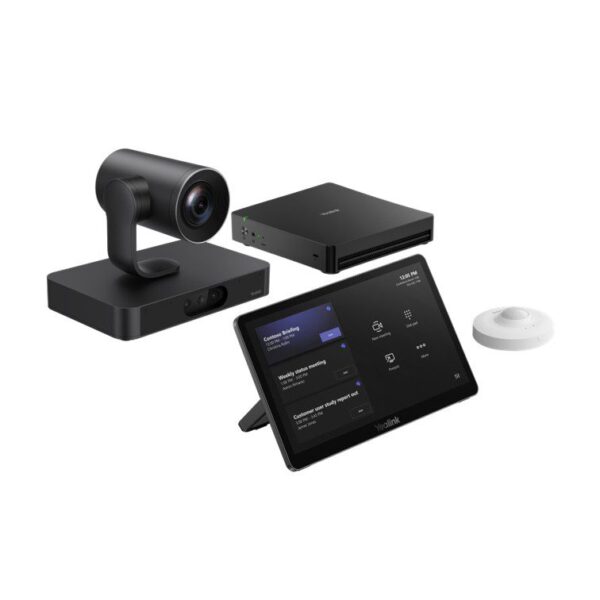

✔ Includes MCore 4, MTouch Plus, SmartVision 80, and RoomSensor
✔ SmartVision 80 four-lens camera with 20x optical zoom and intelligent tracking
✔ Native Microsoft Teams interface with one-touch meeting control
✔ Wired and wireless content sharing support
✔ Simple deployment and centralized remote device management
- Description
Description
The Yealink MVC S80-C5U Microsoft Teams Rooms System is a powerful and intelligent collaboration solution designed specifically for large meeting rooms. Built for native Microsoft Teams Rooms environments, the MVC S80-C5U delivers immersive video, intelligent tracking, and seamless meeting control in a compact and enterprise-ready system.
At the heart of the solution is the MCore 4 Gen-4 Mini-PC, powered by the Intel Ultra5 125H processor, providing exceptional data processing performance and advanced AI computing capabilities. Preloaded with Windows 11 IoT Enterprise and the Microsoft Teams Rooms App, the system ensures a stable, secure, and familiar Teams experience for users.
The system features the SmartVision 80 intelligent four-lens camera, combining a PTZ camera with three electronic cameras, including a panoramic lens and two telephoto lenses. This innovative design ensures comprehensive room coverage and clear close-up views of participants, even in large meeting spaces. With advanced tracking modes such as IntelliFocus, Presenter Tracking, Speaker Tracking, and Auto Framing, the SmartVision 80 delivers an immersive and professional meeting experience.
The MTouch Plus 11.6-inch touch panel provides intuitive meeting control, enabling one-touch join, camera adjustments, and content sharing. The RoomSensor enhances intelligent room management by detecting room occupancy and displaying real-time environmental data such as temperature and humidity directly on the MTouch Plus interface.
The MVC S80-C5U supports both wired and wireless content sharing, allowing participants to share content effortlessly from their devices. Designed for simple deployment, a single CAT5e cable is sufficient to connect the MCore 4 and MTouch Plus for both power and data transmission. With support for the Yealink Device Management Platform / Cloud Service, IT teams can remotely manage, monitor, configure, and update devices, ensuring reliable performance and simplified maintenance.
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • SmartVision 80 |
|---|---|
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD • BIOS feature: • 3x HDMI video output – CEC – EDID • TPM2.0 • Kernel DMA • Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | • Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) • Function Features: • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| SmartVision 80 | • Camera: • PTZ Camera: 20× optical zoom • 69° DFOV, 61.5° HFOV, 36° VFOV (PTZ Camera) • 110° DFOV, 98° HFOV, 82° VFOV (Panoramic Camera) • 51° DFOV, 41.6° HFOV, 32° VFOV (Telephoto Camera) • AI Feature: • IntelliFrame • Participant Identification • IntelliFocus • Speaker Tracking • Presenter Tracking • Video Fence • PIP • Auto Framing • Interfaces: • 1× USB 3.0 Type-B port • 1× USB 2.0 Type-A port • 2× VCH port (RJ45) • 1× Network Port (RJ45) • 1× HDMI out port • 1× Line in port • 1× Line out port • 1× Reset Button • 1× DC Power Port |
