Yealink MVC S90-C5U-004 Teams
$11,351.00

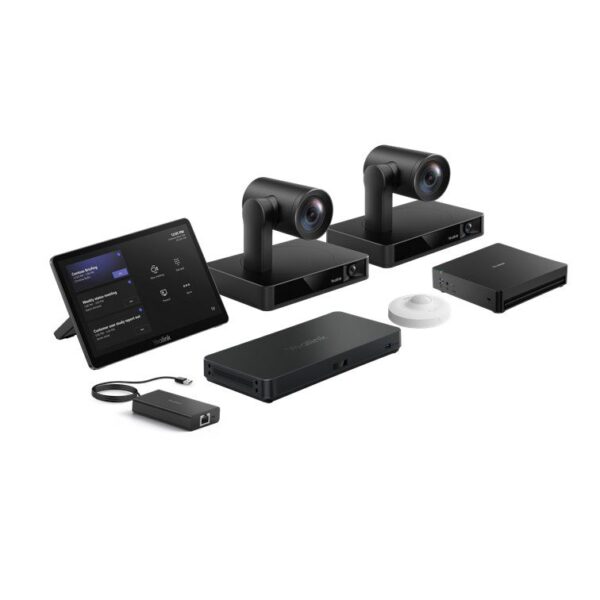

Yealink MVC S90-C5U Microsoft Teams Rooms System for Extra-Large Rooms
Key highlights:
✔ Complete Microsoft Teams Rooms solution for extra-large meeting spaces
✔ Includes MCore 4, MTouch Plus, RoomSensor, UVC86 x2, AVHub, BYOD-Extender
✔ Dual 4K UVC86 PTZ cameras with intelligent tracking and 12x optical zoom
✔ Supports Yealink multi-camera solution with up to 9 cameras
✔ Native Microsoft Teams interface with one-touch control
✔ Wired and wireless content sharing support
✔ Simple deployment and centralized remote device management
- Description
Description
The Yealink MVC S90-C5U Microsoft Teams Rooms System is a high-performance video conferencing solution designed specifically for extra-large meeting rooms, delivering an intelligent, immersive, and scalable collaboration experience. Built for native Microsoft Teams Rooms environments, the MVC S90-C5U integrates advanced multi-camera capabilities, powerful computing performance, and centralized room control into a single enterprise-ready system.
At the core of the system is the MCore 4 Gen-4 Mini-PC, powered by the Intel Ultra5 125H processor, providing outstanding data processing performance and AI computing capabilities for stable and efficient meetings. Preloaded with Windows 11 IoT Enterprise and the Microsoft Teams Rooms App, the system ensures seamless Teams integration with a familiar and intuitive user interface.
The MVC S90-C5U comes standard with two Yealink UVC86 4K dual-eye PTZ cameras, supporting intelligent tracking features such as auto-framing, speaker tracking, and presenter tracking. With 12x optical zoom and 4K video output, the UVC86 delivers clear, lossless images across large and super-large meeting spaces. When paired with AVHub, Yealink’s multi-camera solution supports up to 9 cameras, enabling flexible layouts, multi-speaker tracking, and adaptable configurations for divisible or merged meeting rooms.
The MTouch Plus 11.6-inch touch panel provides intuitive meeting control, including one-touch join, camera adjustments, and content sharing. The included RoomSensor enhances intelligent room management by detecting room occupancy and displaying real-time environmental data such as temperature and humidity directly on the MTouch Plus interface.
With the BYOD-Extender, users can instantly access the room’s professional audio and video equipment by simply connecting a USB cable to their laptop, transforming the Microsoft Teams Room into a versatile, multi-functional collaboration space. The system also supports wired and wireless content sharing, ensuring maximum flexibility for participants.
Designed for easy deployment, the MVC S90-C5U requires only a single CAT5e cable between the MCore 4 and MTouch Plus for both power and data transmission. Combined with support for the Yealink Device Management Platform / Cloud Service, IT teams can remotely manage, monitor, configure, and update devices, ensuring long-term reliability and simplified maintenance.
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • UVC86 x 2 • AVHub • BYOD-Extender |
|---|---|
| Preload | • Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Microsoft Teams Rooms App • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD • BIOS feature: • 3x HDMI video output – CEC – EDID • TPM2.0 • Kernel DMA • Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | • Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) • Function Features: • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| UVC86 USB PTZ Camera | • Camera: • 4K Sensor • 20.4 × HD zoom (12x optical, 1.7x digital) • 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) • Up to 9 preset positions can be set • Horizontal rotation: 200° • Vertical rotation: 130° • AI feature: • Auto-framing • Speaker tracking • Presenter tracking, support area trigger and gesture control • Multi-focus • Picture-in-picture • Interfaces: • 1 x HDMI output • 1 x Yealink microphone port (RJ-45) • 1 x USB 3.0 Type-B port • 1 x USB 2.0 Type-A Port • 1 x Power Port • 1 x Security Lock • 1 x Reset Hole |
| AVHub, audio and video processor | • Interfaces: • 2 x USB-A port • 1 x USB-B port • 1 x Codec port • 7 x Yealink VCH port (RJ-45) • 1 x RCA in/out interface • 1 x 6.3mm Line in interface • 1 x 6.3mm Line out interface • 1 x power interface • Function Features: • Dividable and merging meeting rooms are supported • Support intelligent multi-speaker tracking |
| BYOD-Extender | • Interfaces: • 1.5m USB2.0 Type-A cable • 1 x VCH port (RJ45) • Physical Feature: • Operating humidity: 10~95% • Operating temperature: 0~40℃ • Dimension: 89mm x 48mm x 17mm |
