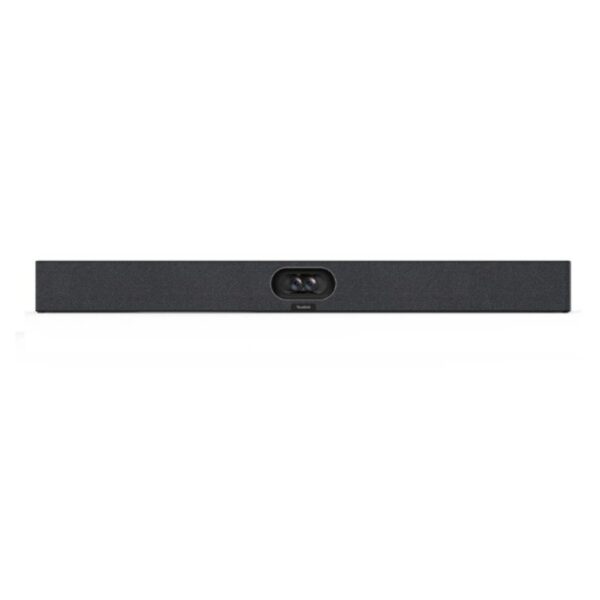

Yealink SmartVision 40 (S40) video bar

Description

Yealink SmartVision 40 is an all-in-one ultra-high-definition intelligent camera designed to enhance the Microsoft Teams Rooms experience in small to medium meeting rooms. Powered by advanced AI algorithms, it delivers superior video clarity, immersive audio, and intelligent speaker tracking to improve meeting efficiency and engagement.

Featuring dual 48MP lenses, SmartVision 40 combines images from both cameras to generate high-pixel-density visuals with outstanding sharpness and clarity. The integrated stereo speakers, 8x MEMS microphone array, and support for two additional expansion microphones ensure excellent audio coverage, while AI-powered noise reduction technology delivers clear and natural sound.

Equipped with advanced AI features such as face detection, sound source positioning, and voice tracking, SmartVision 40 intelligently follows participants’ movements to keep speakers perfectly framed. Beyond standard auto-framing and speaker tracking, the Multi-stream IntelliFrame feature enables multi-stream output to detect and display speakers on-screen, allowing remote participants to clearly see expressions and gestures for a more interactive meeting experience.

Its integrated, all-in-one design enables simple deployment—just place the device in the meeting room and connect power and network. For enhanced privacy protection, SmartVision 40 includes an automatic lens cover that closes when the camera is not in use, ensuring a secure conferencing environment.

---

Key Features and Benefits

Ultra HD Picture Quality

The dual-lens fixed-focus design merges images from both lenses to achieve higher pixel density, producing clear, sharp visuals ideal for presentations and remote collaboration.

Advanced AI Features

In addition to auto framing and speaker tracking, SmartVision 40 supports IntelliFocus and Multi-stream IntelliFrame, automatically detecting and framing speakers while eliminating distractions using the Video Fence feature.

High-Quality Audio Capture

With a 6-meter voice pickup range, 8x MEMS microphone array, and full-duplex audio technology, SmartVision 40 delivers high-quality audio performance. Optional expansion microphones extend coverage for larger meeting spaces.

Remote Device Management

SmartVision 40 can be remotely configured, managed, and updated through Yealink’s device management platform, simplifying IT operations.

Simple Deployment

This all-in-one audio and video solution includes a 2.5-meter USB cable and standard wall mount bracket, with optional TV wall mounting available for flexible installation.

Privacy Protection

An automatic lens cover provides enhanced privacy by physically blocking the camera when not in use.

Camera	• 2 × 48MP cameras • 120° DFOV, 110° HFOV, 54° VFOV • 4K @ 30fps • 6× digital zoom • Automatic lens cover • Up to 9 camera presets
Audio	• 8 MEMS microphone array • 6-meter voice pickup range • 4-meter high-quality voice range • Supports 2 expansion microphones • Noise cancellation and echo cancellation • Full-duplex audio • Speakers: 2 × 10W stereo • Frequency response: 100–20kHz • Sensitivity: 86dB SPL @1W@0.5m • Sampling rate: 48kHz • THD <1% @94dB SPL
AI Features	• IntelliFocus • Multi-Stream IntelliFrame (Teams Rooms only) • Video Fence • Auto Framing • Speaker Tracking • Image Super Resolution • Multi-Focus • Picture-in-Picture
Connections	• 1 × USB 3.0 Type-B port • 1 × USB 2.0 Type-A port • 1 × USB-C port • 1 × Yealink VCH port (RJ-45) • 1 × 3.5mm line-in/out • 1 × Power port • 1 × Security lock slot • 1 × Reset slot • 1 × HDMI-out • Built-in Wi-Fi
Package & Dimensions	• Dimensions: 650 × 62 × 80 mm • Net weight: 5.54 kg • Gross weight: 6.086 kg • Wall mount included (ADA standard)
Environmental	• Operating humidity: 10–95% • Operating temperature: 0–40°C
Bluetooth	• Bluetooth supported
