Yealink ZVC S90 C5U 004 Zoom Rooms system

Description

The Yealink ZVC S90-C5U is a professional Zoom Rooms system designed for extra-large meeting rooms, delivering powerful multi-camera performance, intelligent tracking, and enterprise-grade computing to support advanced collaboration environments. The system is ideal for large boardrooms, training rooms, and classrooms that require flexible layouts and high-quality video conferencing.

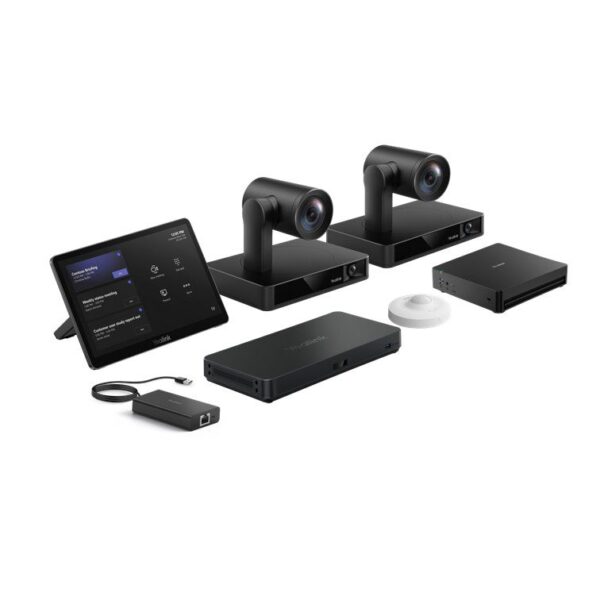

The ZVC S90-C5U bundle includes the MCore 4 Gen-4 Mini-PC, MTouch Plus large-screen touch panel, two UVC86 dual-eye 4K PTZ cameras, AVHub audio and video processor, RoomSensor, and BYOD-Extender. Powered by the Intel Ultra5 125H processor, the MCore 4 delivers exceptional data processing performance and powerful AI computing capability, ensuring smooth, stable, and efficient Zoom Rooms operation.

With Yealink’s exclusive multi-camera solution enabled through AVHub, the ZVC S90-C5U supports advanced speaker tracking, customizable video layouts, and scalable room configurations. Combined with intuitive touch control, intelligent room automation, flexible BYOD usage, and centralized device management, it provides a robust and future-ready solution for extra-large Zoom Rooms deployments.

---

KEY FEATURES AND BENEFITS

Multi-cam solution, Flexible layout

Relying on the audio and video processor AVHub, Yealink has developed a multi-camera solution that supports up to 9 Yealink cameras. Users can control them independently through MTouch Plus or splice the output video of multiple cameras and adjust the output video layout as desired. Various sets of the ZVC S90-C5U series can be combined through network cables to build a conference room system that can be flexibly merged and divided.

---

Intelligent tracking, Free your hands

The Yealink UVC86 intelligent PTZ camera supports multiple tracking functions, including Auto-framing, Speaker Tracking, and Presenter Tracking. Speaker Tracking of the Yealink UVC86 supports region trigger, allowing for automatic framing of the speaker without operation. The support gesture can be turned on or off, allowing it to be used in every scenario. Equipped with a Yealink camera plug-in controller, the camera can freely switch between up to 9 preset positions at any time and quickly switch preset tracking modes, with one-step adjustment and one-step in-place functionality. The UVC86 camera supports 4K video output and features a 12x optical zoom lens, providing clear and lossless images. UVC86 provides you with a face-to-face, intelligent, and smooth meeting experience by accurately recreating every moment and detail.

---

Seamless Meeting Experience with Native Zoom Rooms Integration

The entire ZVC S90-C5U bundle is equipped with a native Zoom Rooms user interface, ensuring a familiar and intuitive experience for users. The MTouch Plus touch panel provides easy access to one-click conferencing, call control, camera adjustments, and content sharing. At the same time, the RoomSensor automatically wakes up the system as participants enter the room. This seamless integration ensures that meetings start effortlessly and run efficiently, enhancing productivity and collaboration.

---

Outstanding Data Processing Capability

At the core of the ZVC S90-C5U is the MCore 4, powered by the Intel Ultra5 125H processor, which boasts exceptional data processing capabilities and powerful AI computing capabilities with its NPU. It ensures smooth and efficient meetings, enabling intelligent conferencing features. The MCore 4 empowers bright meeting rooms, providing a stable and efficient operating environment for immersive remote communication.

---

Real-Time Content Sharing for Enhanced Collaboration

The bundle supports both wireless and wired content sharing for maximum flexibility. Wireless content sharing is made simple with the Yealink sharing dongle, which supports wireless sharing at 1080p/30fps resolution for a superior viewing experience. Wired content sharing is supported by connecting the MTouch to a USB-C or HDMI port on a laptop using the MTouch cable. Additionally, the MCore 4 is equipped with an HDMI-In interface, supporting 4K resolution auxiliary stream input to ensure lossless image presentation, further enhancing the content sharing experience.

---

Simple Deployment and Easy Use

A single CAT5e cable is sufficient to connect the MCore 4 and MTouch Plus, enabling both data transmission and power supply without the need for additional cables or power sources. Additionally, the RoomSensor operates via Bluetooth (BLE), eliminating the need for extra cables.

---

Remote Device Management

These devices can support the Yealink Device Management Platform/Cloud Service, enabling remote management, monitoring, configuration, updates, and diagnostics of all connected devices. This feature ensures that your meeting room is always up-to-date and operating at peak performance.

Package Content	• MCore 4 • MTouch Plus • RoomSensor • UVC86*2 • AVHub • BYOD-Extender
Preload	• Windows 11 IoT Enterprise X64 • Windows 11 IoT Enterprise License • Zoom Rooms App • Yealink RoomConnect
MCore 4, Gen-4 Mini-PC	• Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output -CEC -EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 Type-A Port • 1 x MTouch Port (RJ-45) • 1 x LAN port for AV network • 1 x 10/100/1000 Gigabit Ethernet Port • 1 x Power Supply Port • 1 x 3.5mm headphone Port • 1 x reset port • 1 x Security Slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2
MTouch Plus	Physical Features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function Features： •1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, and wall-mounted deployment
RoomSensor	• Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95%
UVC86 USB PTZ Camera	Camera: • 4K Sensor • 20.4 × HD zoom (12x optical, 1.7x digital) • 90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens) • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) • Up to 9 preset positions can be set • Horizontal rotation: 200° • Vertical rotation: 130° AI feature: • Auto-framing • Speaker tracking • Presenter tracking, support area trigger and gesture control • Multi-focus • Picture-in-picture Interfaces: • 1 x HDMI output • 1 x Yealink microphone port(RJ-45) • 1 x USB 3.0 Type-B port • 1 x USB 2.0 Type-A Port • 1 x Power Port • 1 x Security Lock • 1 x Reset Hole
AVHub, audio and video processor	Interfaces: • 2 x USB-A port • 1 x USB-B port • 1 x Codec port • 7 x Yealink VCH port(RJ-45) • 1 x RCA in/out interface • 1 x 6.3mm Line in interface • 1 x 6.3mm Line out interface • 1 x power interface Function Features： • Dividable and merging meeting rooms are supported • Support intelligent multi-speaker tracking
BYOD-Extender	Interfaces: • 1.5m USB2.0 Type-A cable • 1 x VCH port (RJ45) Physical Feature: • Operating humidity: 10~95% • Operating temperature: 0~40℃ • Dimension:89mm x 48mm x 17mm
