Relentless Innovation. Flawless Presentation InstaShow™ S Plug & Play – Instant Wireless Meeting Solution
  • Mobile Device Wireless Presentation Compatibility for Collaborations up to 32 persons
  • 4 Split-Screen Wireless Projection to Accelerate Decision Making
  • No Software Installation and No Driver Execution
  • Compatibility requirements are: USB/HDMI ports on source laptop and HDMI input on display device.


Instant Visual Communication and Collaboration for Modern Enterprises

It’s human nature to resist change, which is why new technology can be intimidating. InstaShow™ S has zero learning curve, allowing you to introduce it into your daily routine and start sharing immediately. InstaShow™ S also allows employees and visitors to enjoy setup-free wireless presenting, leading to instant teamwork and immediate results. Morever, InstaShow™ S’s advanced security features can protect the hard-won intellectual property that is essential to your company’s bottom line.

Ultimate Collaboration Freedom

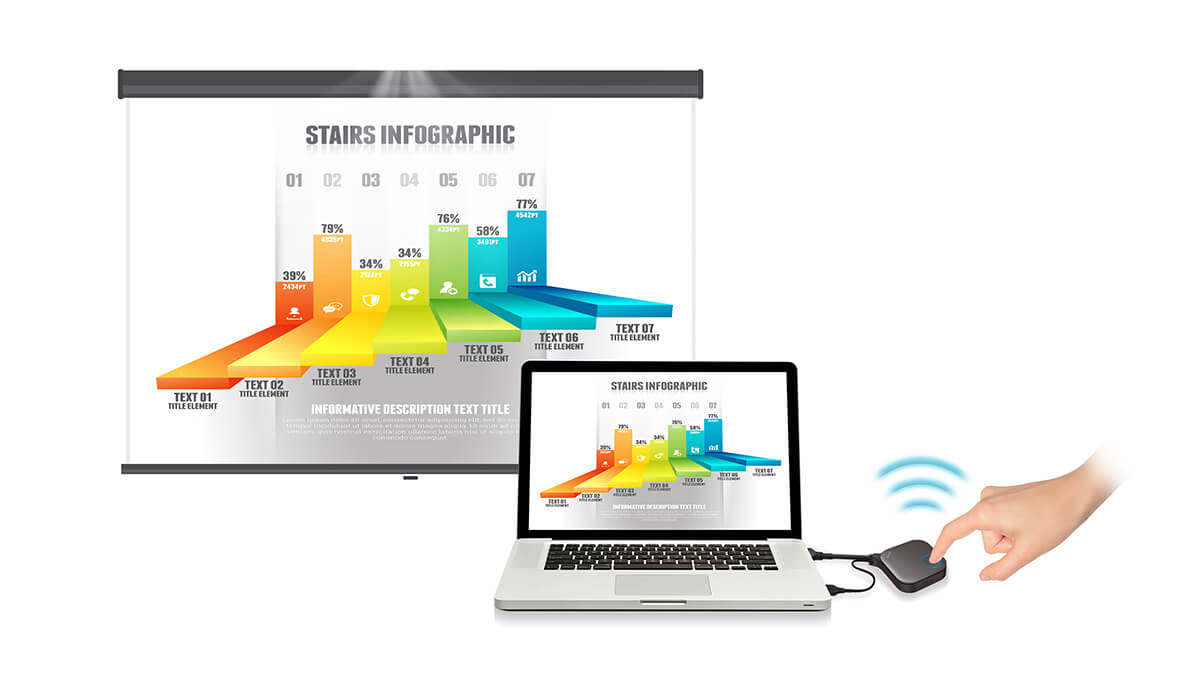

Share Your Innovations Your Way Instantly

Featuring just a single button and requiring no software or drivers, InstaShow™ S is ready to use as soon as it’s plugged into a laptop. InstaShow™ S reduces downtime and uncomfortable silences, allowing presenters to kick off productive meetings with greater efficiency than ever before.

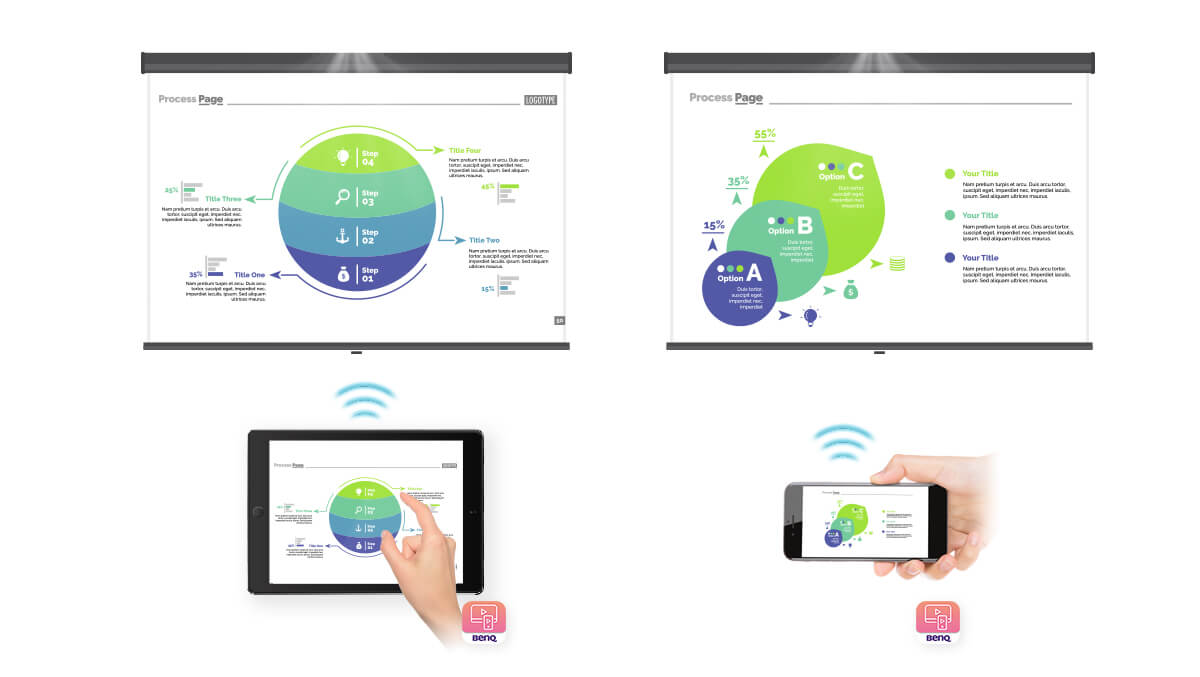

Share Fresh Insights from Smart Devices

Using your phone or tablet to share ideas with an audience has never been easier. With the InstaShare™app, available for Android and iOS, you can smoothly stream Full HD content from your smart device to a large display immediately without limitations.

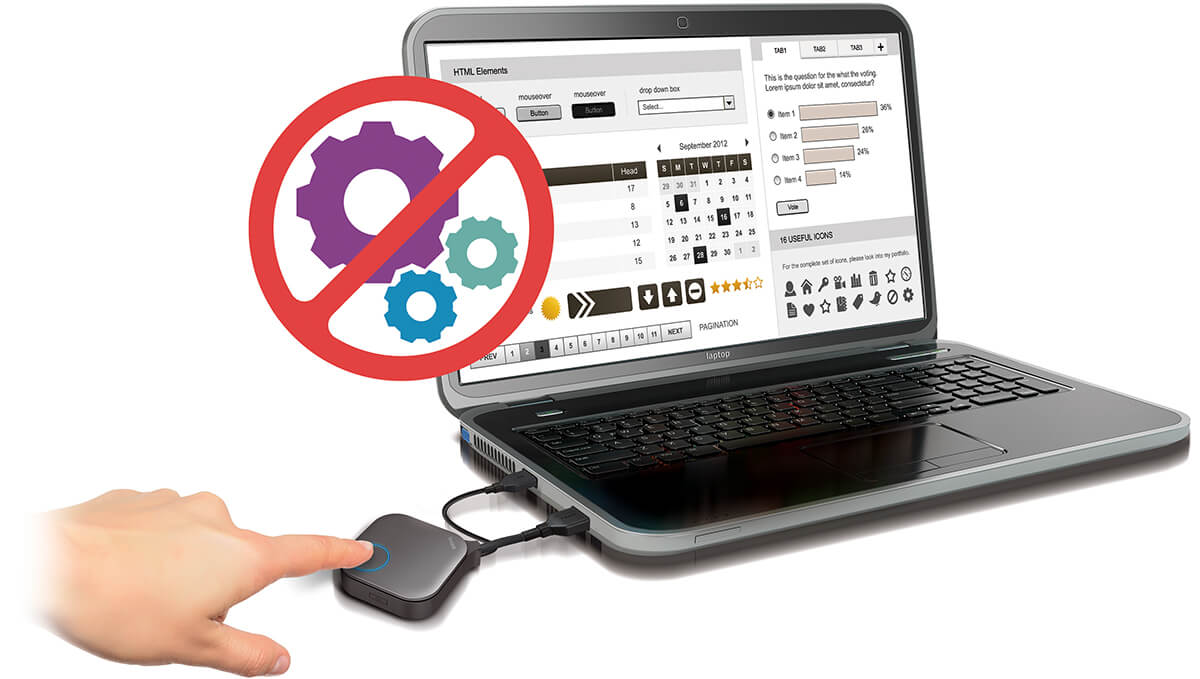

Plug In and Present Immediately

Easy for anyone to set up, InstaShow™ S is ready to use from the moment it’s plugged in. It also significantly enhances corporate efficiency and agility by allowing up to 32 users to connect and present in turn without the usual tech-related delays between presenters. Furthermore, InstaShow™ S’s support for integrated hardware encoding and decoding ensure it can provide smooth presentation and video playback regardless of the operating system and capabilities of the source notebook.

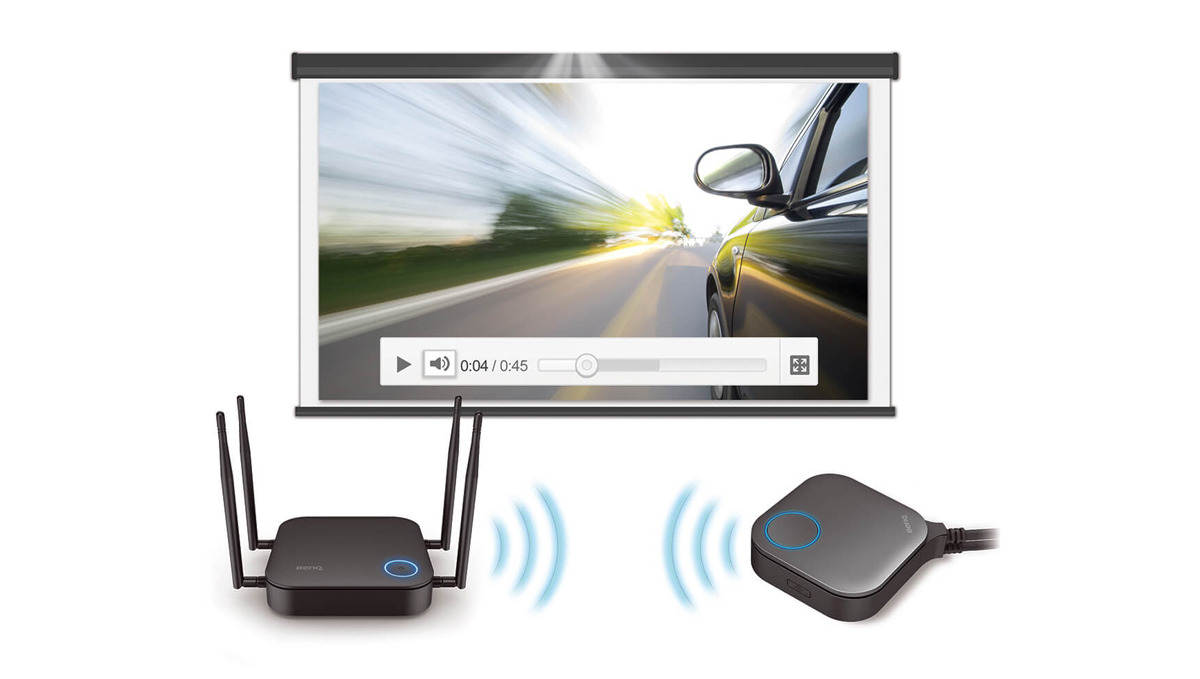

High-Performance Wireless with Full HD Video Sharing

InstaShow™ S can maintain stable wireless connections even in less-than-ideal Wi-Fi environments. Equipped with Wi-Fi 802.11 ac/n for transfer speeds of up to 700Mbps*, InstaShow™ S facilitates easy and smooth sharing of presentations, pictures, documents, and Full HD video.

*300Mbps over 2.4G; 400Mbps over 5G

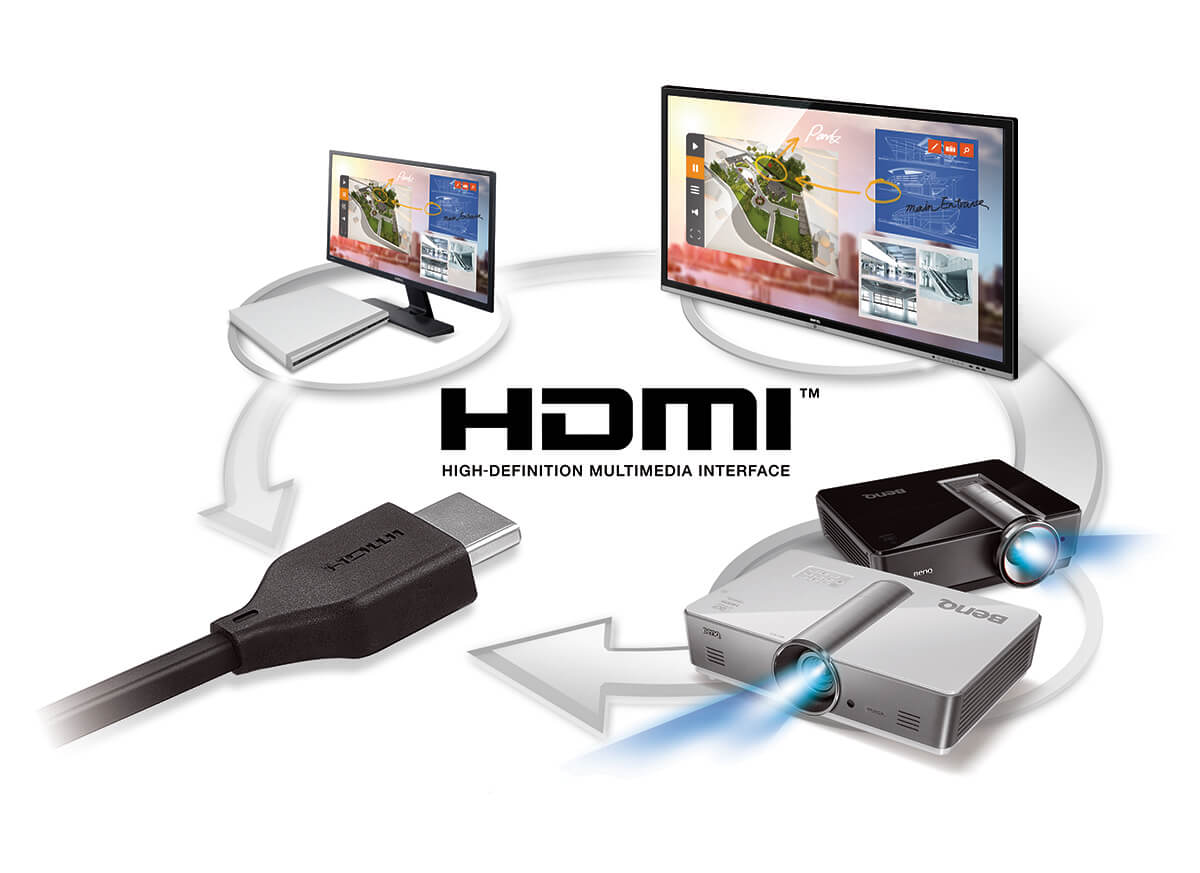

Extensive Device Compatibility

InstaShow™ S allows users to share from a wide range of devices. Content from laptops, or any other device with an HDMI output can be presented on any device with an HDMI input. Furthermore, presenters can privately view or take notes, backup data, and monitor other applications while simultaneously delivering inspirational presentations with InstaShow™ S’s extended desktop mode in both Windows and OS X.

Smooth Synergetic Collaboration

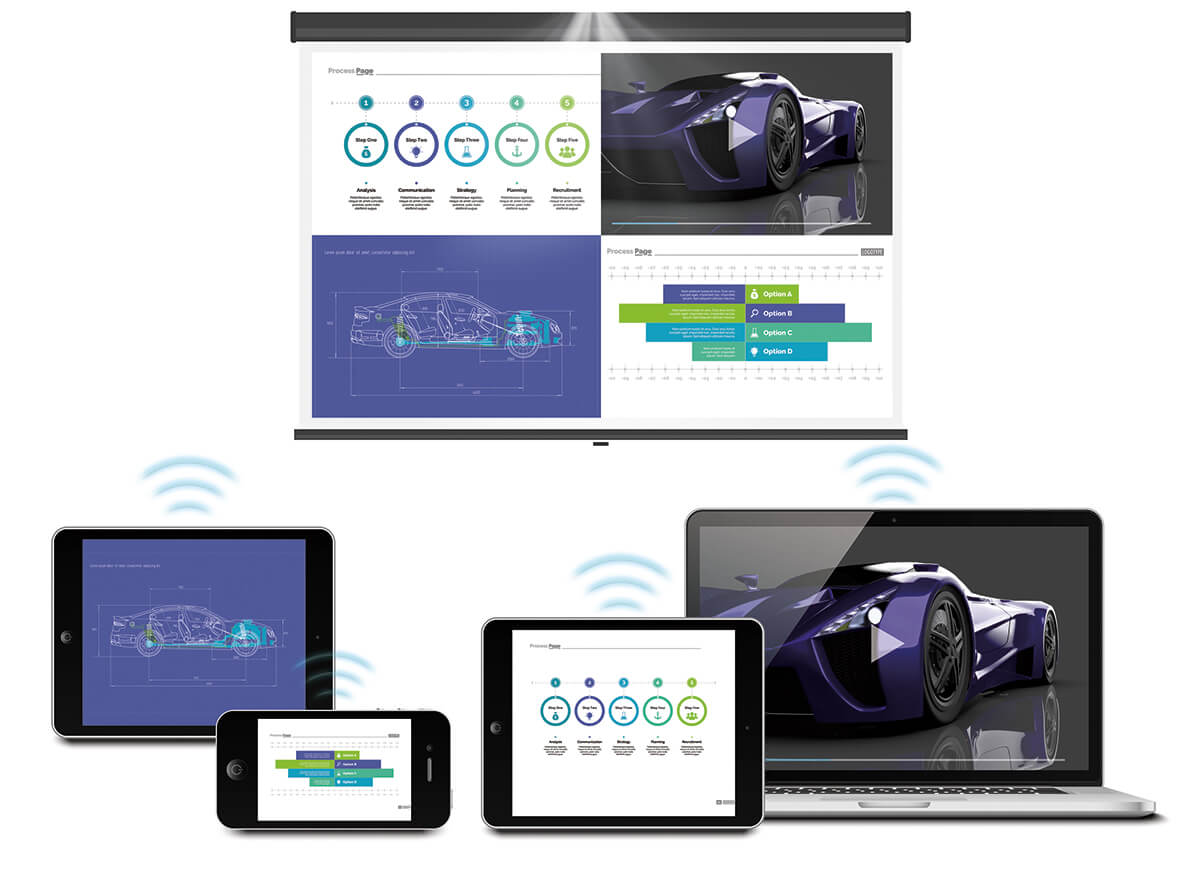

Share Ideas from Multiple Devices on One Screen

Activate split-screen with a single button and share everyone’s ideas at the same time. InstaShow™ S can accelerate decision making and shorten meetings by allowing up to 4 users to present from different devices at once without needing to install multiple projectors.

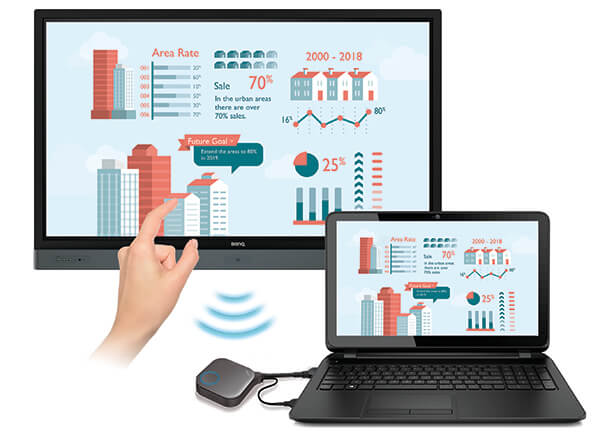

Touch Back with Touch Screens

InstaShow™ S’s touch back feature helps keep your focus on your presentation and your audience. By allowing you to control your laptop’s applications directly via a touch screen, the touch back feature lets you switch PowerPoint slides, start videos, and more without having to continuously switch back and forth between the display and your laptop.

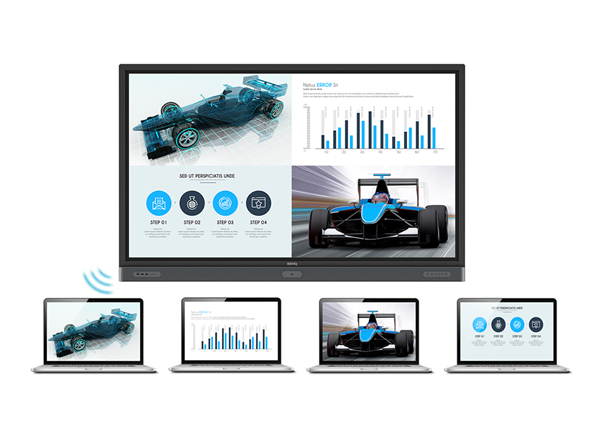

Moreover, when paired with an touch screen, InstaShow™ S’s split-screen mode can be used to control up to four laptops, one at a time, with the four quadrants of the screen.

*Touch back feature available for Windows only.

Robust Security Features

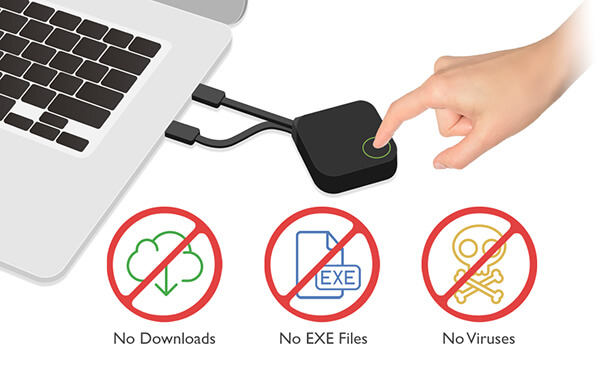

Software-Free Highly Secure Operation

Just plug InstaShow™ into a laptop and you are ready to share securely. Because it’s an all-hardware solution that requires no software, drivers, or downloads of any kind, InstaShow™ completely eliminates many potential entry points that viruses and malware can exploit.

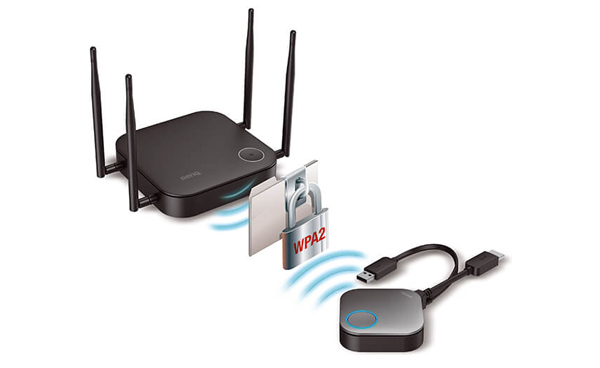

Trustworthy Security Protection

InstaShow™ keeps important corporate intellectual property private and safe from tampering or unintended disclosure, ensuring future business sustainability. AES 128-bit security encryption and the WPA2 authentication protocol guarantee that presentations are absolutely secure. The security handshake also assures smooth, high-quality wireless streaming of presentations. This allows presenters to share confidential information without worrying about security breaches. InstaShow™ also supports HDCP to ensure content with digital rights management will play smoothly without delay, error messages, or interruption.

BenQ Lauded for its Commitment to Information Security with ISO27001 Certification. InstaShow Presentation Solution Perfectly Exemplifies the Company’s Rigorous Information Security Standards.

Easy Management and Maintenance

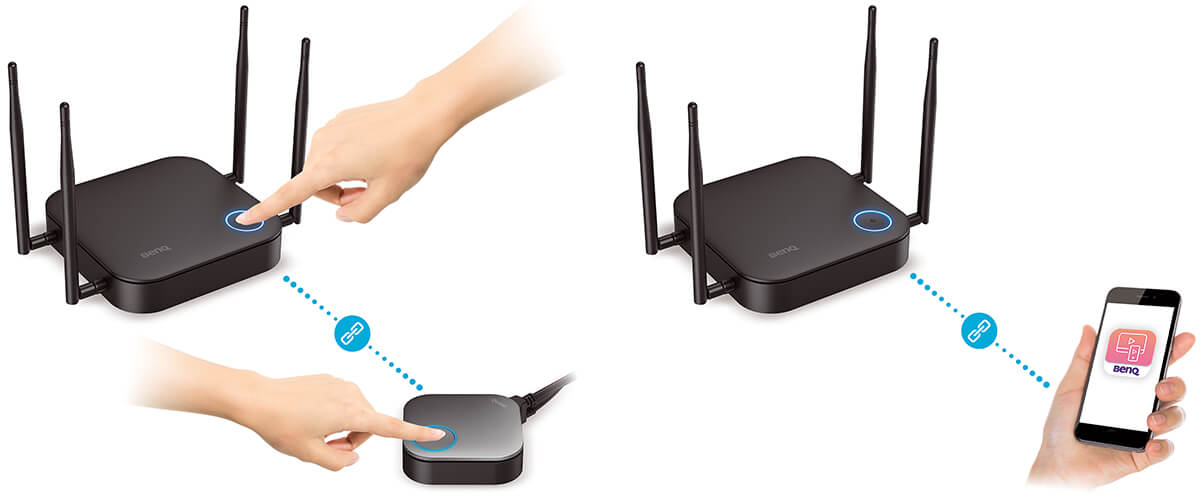

Simple Pairing and Hassle-Free Maintenance

InstaShow™ is ready to use immediately out of the box. But if you need to pair additional transmitters to a receiver, you will find the process is incredibly simple. Just hold down the pairing key on the host for 5 seconds, then do the same on the transmitter, and the two devices will pair automatically. The host can even be put into pairing mode via web control if it is installed onto a ceiling-mounted projector or otherwise hard to reach location.

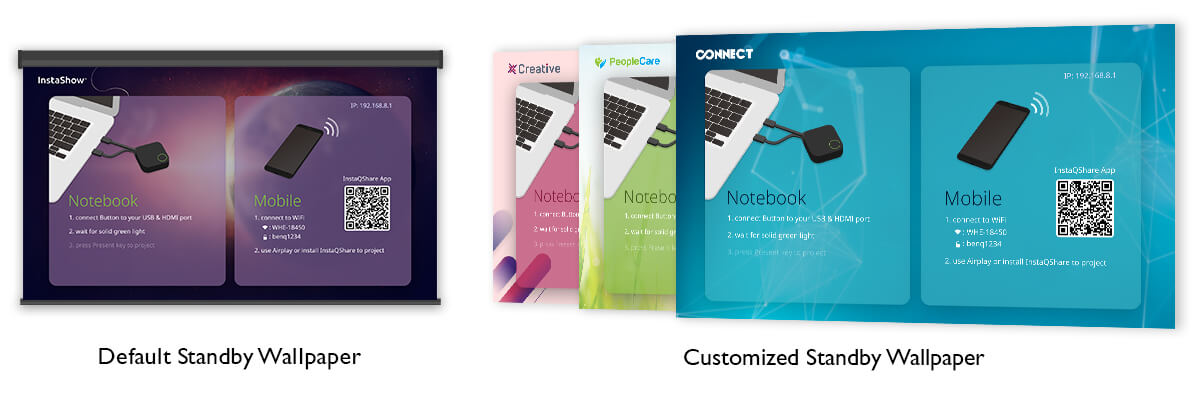

Custom Standby Wallpaper to Strengthen Corporate Image

With the MyScreen function, businesses can strengthen corporate branding and create the impression that InstaShow™ S is an integrated part of the company by using their own custom standby wallpaper*.

*Wi-Fi and password information for accessing InstaShow™ S will still remain on screen

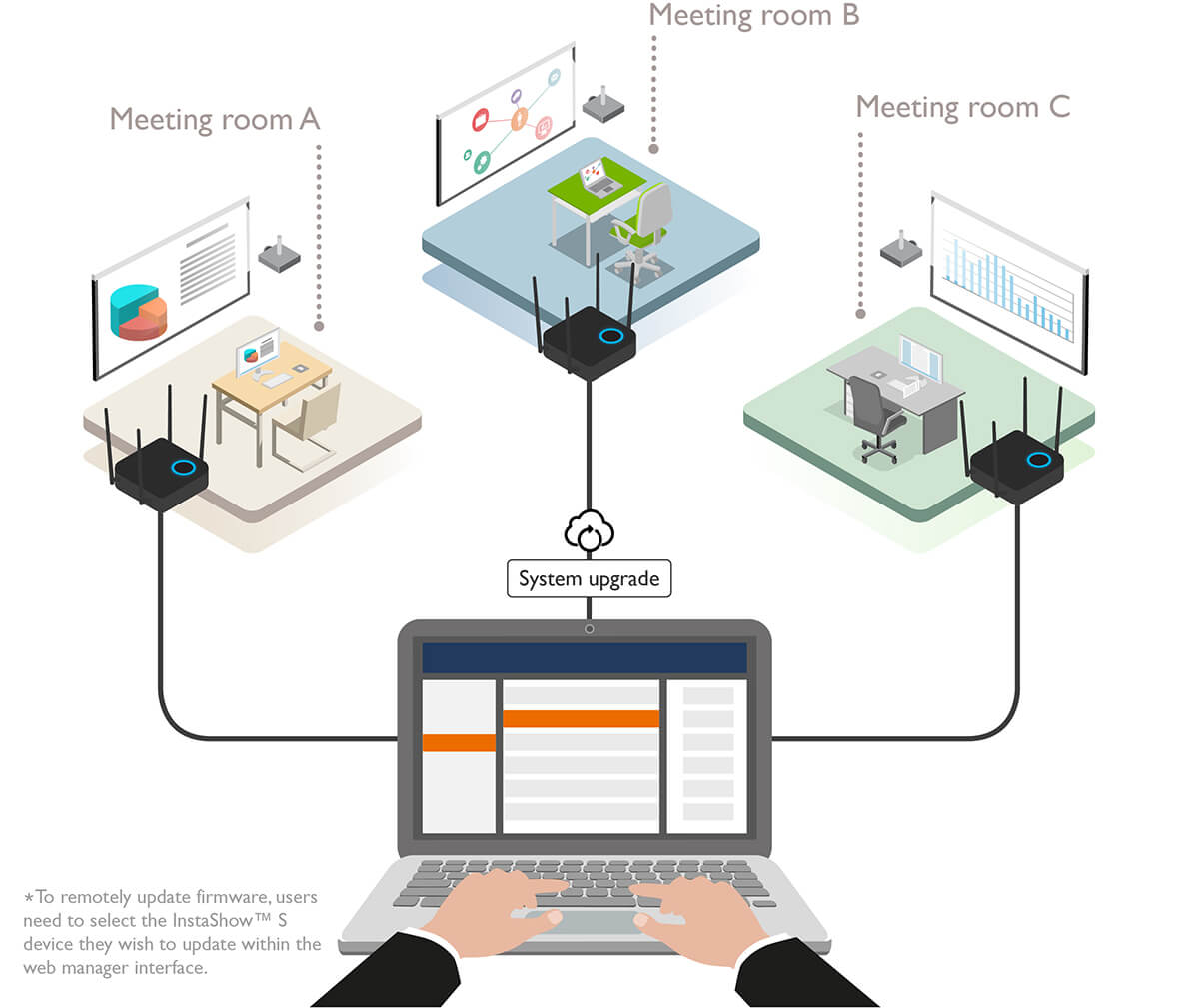

Efficient Centralized Control

Centralized control streamlines device management and makes updating easy. IT administrators can manage InstaShow™ S remotely via LAN to control pairings, adjust settings, and update firmware conveniently with BenQ’s OTA technology.

All Specifications


Model name


Product name

InstaShow™ S



Video outputs

HDMI 1.4, comply with HDCP

Frame Rate

Up to 60 fps depending on environment (FHD)

Output resolution

720×480, 720×576, 1280×720, 1920×1080 (1080p), up to 3840×2160(30Hz)

Input resolution

Video:480p, 576p, 720p, 1080p
PC timing: 640×480, 800×600, 1024×768, 1280×720, 1920×1080

Simultaneous connections

32 pcs


Stereo, Radio quality 16bits 48KHz


IEEE 802.11ac, 5GHz, 2T2R
IEEE 802.11n, 2.4GHz, 2T2R

Data rate wireless

Up to 867 + 300Mbps

Authentication protocol

WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)

Security (encryption )

WPA2 Personal (AES 128 bit)

Support platform

Windows, MAC, Chrome. Any OS supports HDMI standard 1.4


Max. 15m between InstaShow S Button and InstaShow S Host

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)


Storage: 5% to 90% relative humidity, non-condensing
Operation: 10% to 80% relative humidity, non-condensing

InstaShow Button


USB Type A, HDMI Cable

Reset Button


Mode Key



3/6 LED(R.G.B)

Power Supply

DC 5V±10%, 0.5A

Power Consumption




Dimension (WxHxD)

67*67*24.2mm (without wire) 81*291*24.2mm (with wire)

InstaShow Host

Power Button


Paring Key


Video Output

x1 HDMI 1.4 (video and audio)


3 LED(R.G.B)

DC Power Jack

x1 (micro USB)

Power Supply

DC 12V±10%, 2A

Power Consumption




Pairing Key



Dimension (WxHxD)
(not include rubber feet)

154*34*140mm (without Antenna)
200*150*140mm (with Antenna)

InstaShow Cradle

Dimension (WxHxD)




InstaShow Package

Safety Statement




USB Extended Cable

x1 (80cm)

Quick Start Guilde


InstaShow Button


InstaShow Host


HDMI Cable





Velcro Strap (black)

Double-side Sponge Tap


Rubber Feet
